Nexo PS15 User Manual

PS10, PS10TD & LS500 : SPECIFICATIONS, CURVES & DIAGRAMS
___________________________________________________________________________________________________
P.3
5
16037 Hz
10085 Hz
5086 Hz
0°
180°
90° 90°
30°
30°
60°60°
120° 120°
150° 150°
0°
180°
90° 90°
30°30°
60°60°
120° 120°
150° 150°
0°
180°
90° 90°
30°30°
60°60°
120° 120°
150° 150°
0°
30°
90°
60°
60°
90°
120°
150°
180°
150°
120°
30°
16037 Hz
10085 Hz
5086 Hz
16037 Hz
10085 Hz
5086 Hz
16037 Hz
10085 Hz
5086 Hz

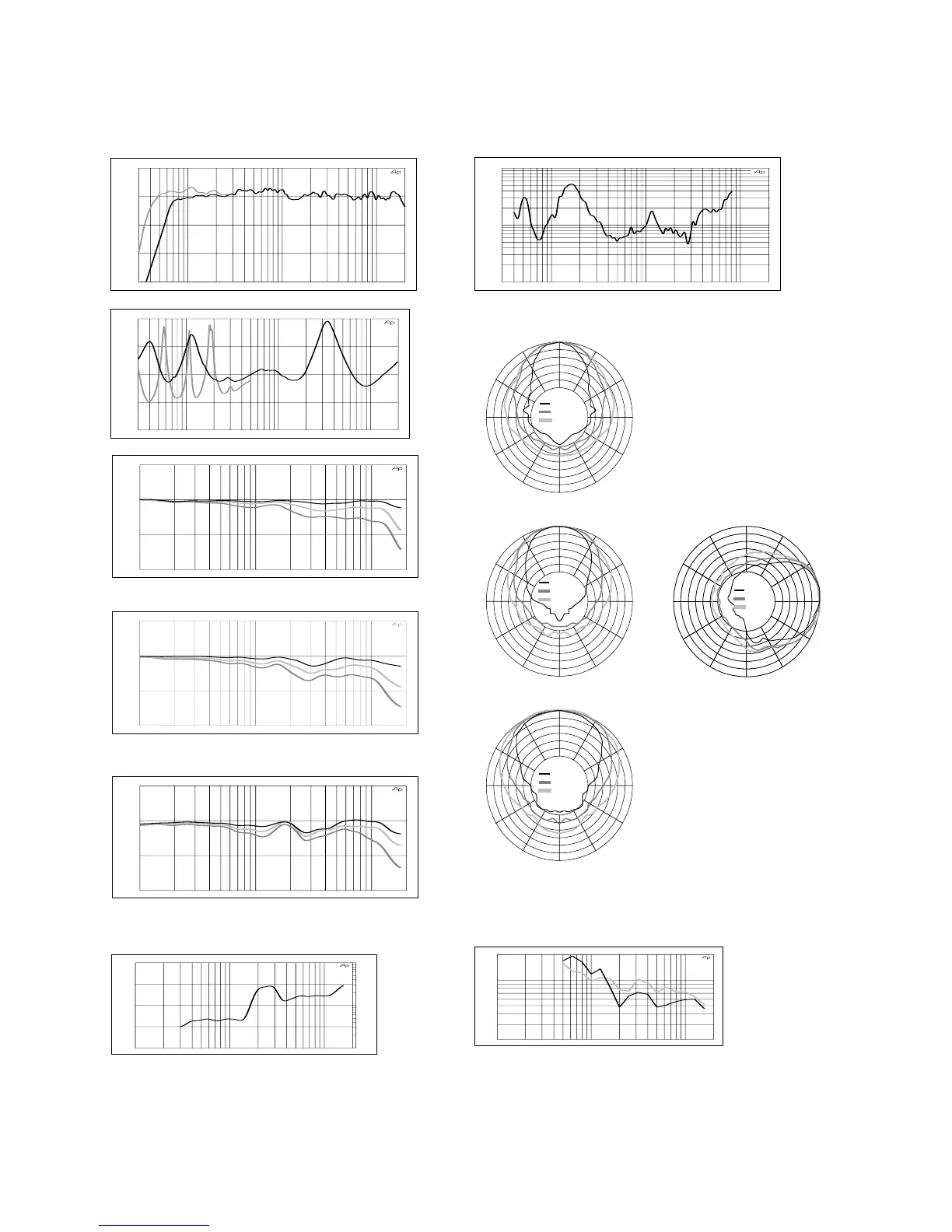

PS10 Curves
30 100 1k 10k 20k
-30.00
-20.00
-10.00
0.0
10.000
ON AXIS RESPONSE (dB)
c 1 : On axis responses PS10 & PS10 + LS500
30 100 1k 10k 20k
0.1
1
10
TOTAL DISTORSION (%)
c 2 : PS10 + LS500 : THD for 110 dBSPL @ 1m.
30 100 1k 10k 20k
6.0000
12.000
18.000
24.000
30.000
IMPEDANCE (Log Z)
c 3 : Impedance PS10 and LS500
100 1k 10k 20k
-20.00
-10.00
0.0
10.000
OFF-AXIS RESPONSE (dB)
c 4 : Horizontal plane, vertical orientation +25°. 10°(black),20°(light),30°(dark)
off axis response
100 1k 10k 20k
-20.00
-10.00
0.0
10.000
OFF-AXIS RESPONSE (dB)
c 5 : Horizontal plane, vertical orientation 0°. 20°(black),30°(light),40°(dark)
off axis response
100 1k 10k 20k
-20.00
-10.00
0.0
10.000
OFF-AXIS RESPONSE (dB)
c 6 : Horizontal plane, vertical orientation -25°. 30°(black),40°(light),50°(dark)
off axis response
-Horizontal polar plots (left)
upper plot : vertical orientation +25°
center plot : vertical orientation 0°
lower plot : vertical orientation -25°
-Vertical polar plot (right)
5 dB / div
100 1k 10k 20k
1
10
100
0.0
5.0000
10.000
15.000
20.000
DIRECTIVITY INDEX (dB) & Q
c7 : Directivity index and factor.
100 1k 10k 20k
20
100
200
COVERAGE ANGLES (ł)
c 8 : Horizontal (light) and vertical (black) coverage angles, -6dB points.

Nexo PS15 Specifications

General

Impedance	8 ohms
Drivers	15" LF, 2" HF
Type	2-way passive speaker
Power Handling	500W RMS
Dimensions	675 mm x 434 mm x 368 mm
Weight	28 kg
Recommended Amplifier Power	500 to 1000 W
Connectors	2 x NL4
Woofer	15"
Tweeter	2"
Inputs	2 x NL4
Nominal Coverage	50° - 100° horizontal x 55° vertical
HF Dispersion	50° - 100° Horizontal x 55° Vertical (Rotatable)
