F-GT SIMULATOR COCKPIT

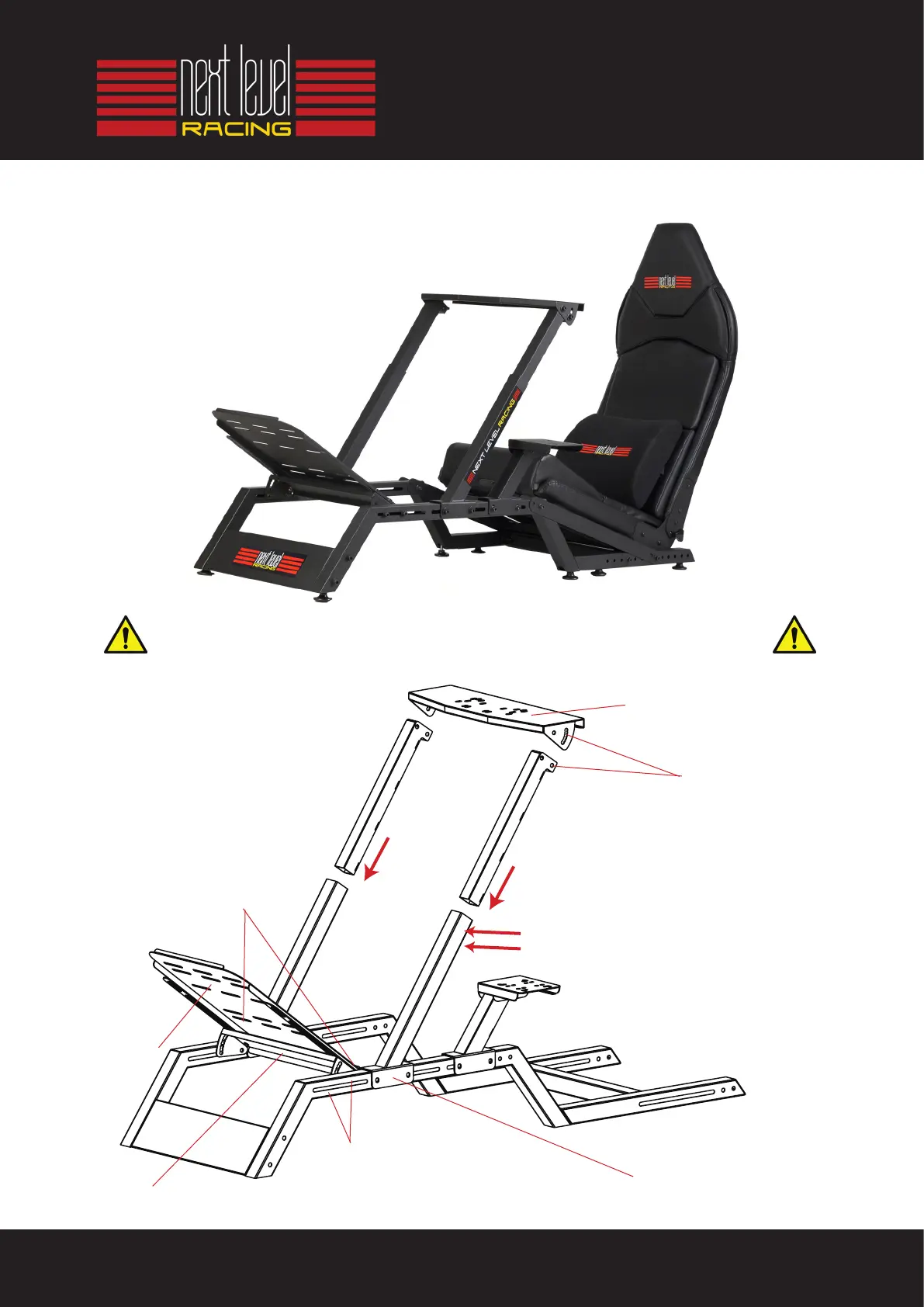

Step 7: Formula ASSEMBLY
PEDAL PLATE
PEDAL ANGLE BAR
5. Attach PEDAL PLATE to the
PEDAL ANGLE BAR using 2 X
16MM BOLTS on each side.
Repeat both sides.
*For Formula- Recommend
attaching at bottom of PEDAL
PLATE as pictured
WHEEL PLATE
3.
2 X 50MM BOLTS.
Repeat both sides.
2. Insert WHEEL SUPPORT BARS.
Use the 2 X 16MM BOLTS on each side
to adjust height.
1.
2 X 60MM BOLTS.
Repeat both sides.
*Once you're happy with the
position, tighten as much as possible
to ensure wheel support is strong
and rigid.
4. Attach PEDAL ANGLE BAR using
2 X 60MM BOLTS.
Repeat both sides.
WARNING
DO NOT OVER TIGHTEN 2 X 60MM BOLTS FOR PEDAL PLATE
OR YOU CAN DAMAGE YOUR FRAME
To Next Page
