F-GT SIMULATOR COCKPIT

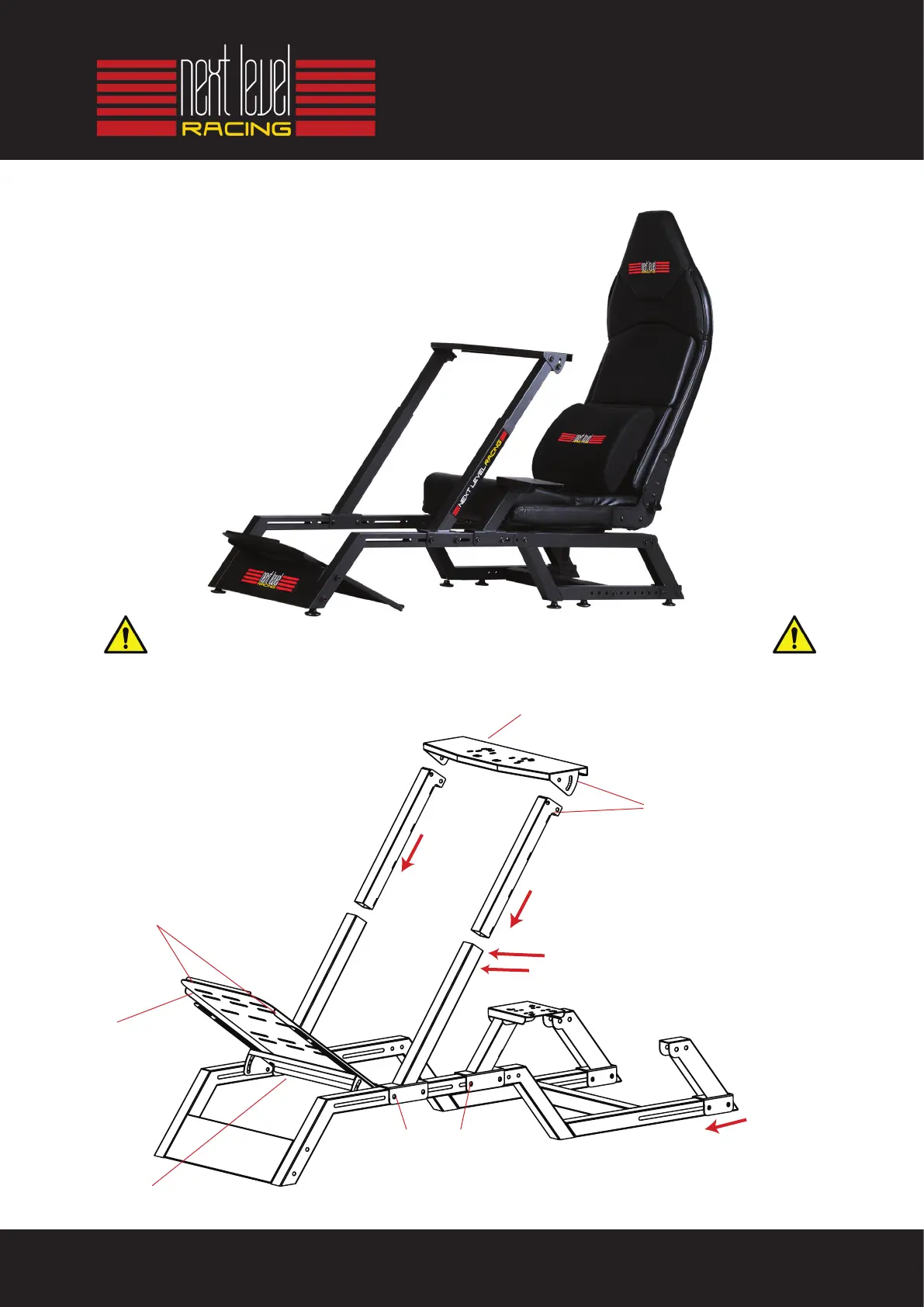

Step 10: GT ASSEMBLY
1.
2 X 60MM BOLTS.
Repeat both sides.
*Once you are happy with the position
tighten as much as possible to ensure wheel
support is strong and rigid
2. Insert Wheel Support Bars.
Use 2 X 16MM BOLTS on each side
to adjust height.
3. 2 X 50MM BOLTS.
Repeat both sides.
WHEEL PLATE
PEDAL PLATE
4. Attach GT SEAT
SUPPORTS to last holes
using 2 X 60MM BOLTS.
Repeat both sides.
5. Attach PEDAL PLATE to
frame using 1 X 16MM BOLT.
Repeat both sides.
WARNING
DO NOT OVER TIGHTEN 2 X 60MM BOLTS FOR PEDAL PLATE
OR YOU CAN DAMAGE YOUR FRAME
PEDAL ANGLE BAR
