2.1.3 Supply
This device is supplied with all equipment
necessary for its installation and use. This
kit includes:
 A control box with a pre-wired power
supply cable.
 An electrolysis cell with its electrode and
cable equipped with quick connectors.
 A Slow mode connecting cable with a
quick connector for swimming pools fitted
with covers.
For the servocontrol, this cable is pre-
wired to the STERILOR analysis–regulation
boxes in the same way as for the
STÉREDOX
a blade flow sensor
 a pH sensor with cable,
+ assembly end piece and saddle tees
+ winterisation caps
+ 2 pH 7 and pH 10 buffer solutions
+ Injector and suction strainer, flexible
tube
+ A salt analysis kit
+ Installation and user instructions
+ Guarantee form
Optional:
Optional bypass pH sensor assembly kit
including:
• Passage chamber with connectors
• 2 isolation valves for direct assembly on
D50/D63 saddle tees
• 1 sieve filter directly assembled on a valve
• Required tubings and connectors
Filtration
box
Earth socket towards separate
earth electrode
Liquid pH
injection
pH
electrode
Towards booster
compressor
Towards
Swimming pool
inflow
Swimming
pool
backflow
3/4 salt electrolysis
cell installed
Measuring chamber
with pH electrode
Dry contact
Coupling to a chlorine
measurement, e.g.
STEREDOX
Dry contact: Slow mode
or Cover mode control

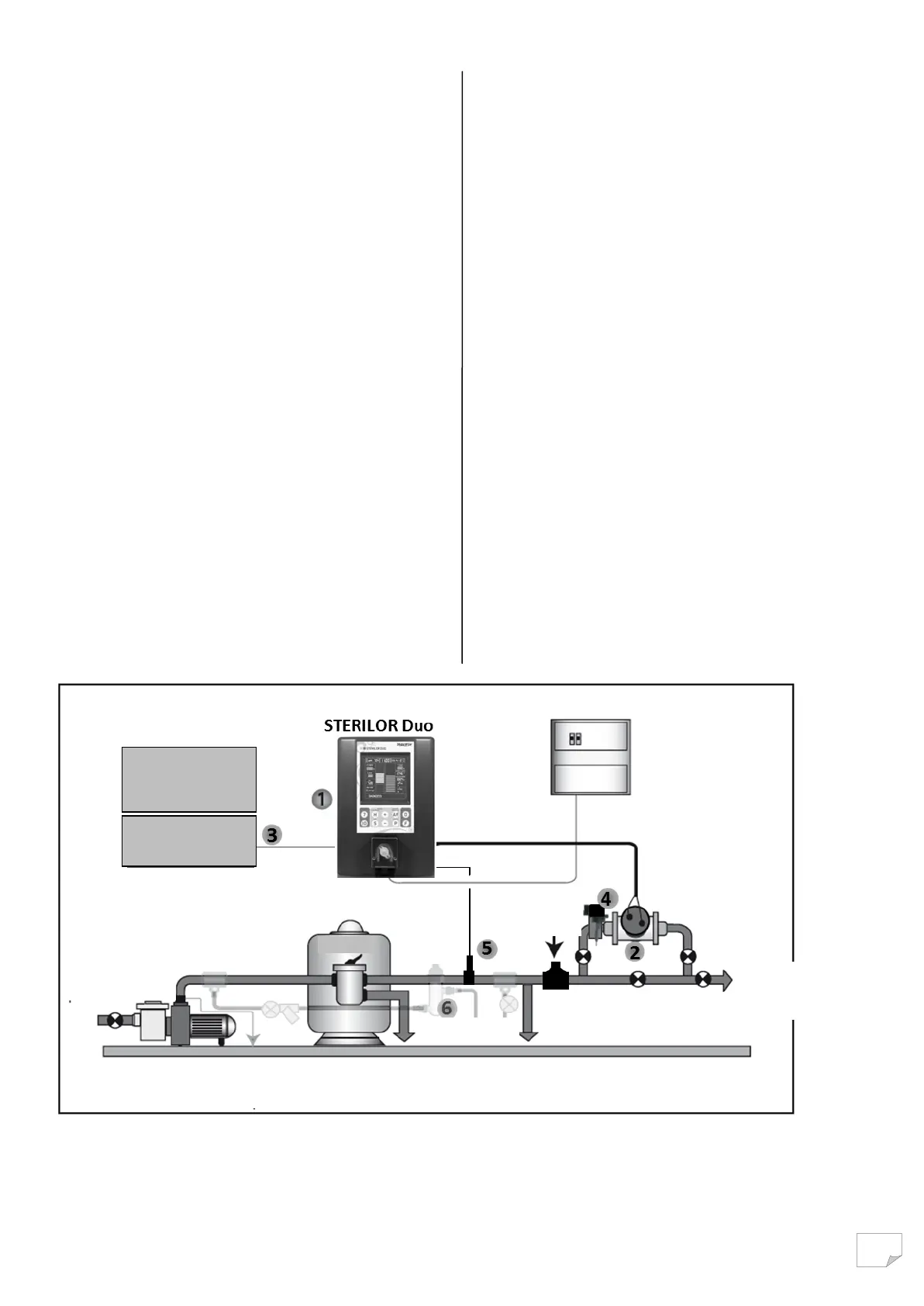

GENERAL PRESENTATION OF THE INSTALLATION OF A SWIMMING POOL TECHNICAL ROOM
Filter
