Next DMX 512 User Manual

With MODE key (Fig.12) find the text like in (Fig.13).
To change the setting hold SET key (Fig.14) until the first value starts
blinking (Fig.15).
Use UP/DOWN keys to change the value (Fig.16).
Use MODE key to move to the next value (Fig.12).
When finished, confirm with SET key (Fig.14)
The range of DMX channels to transmit must correspond to the chan-
nels used by the projectors connected to the paired receivers on band 2.
You should set such projectors on consecutive DMX addresses.
NN..BB..::
If you get problem of transmission, try changing the Radio channel.
When Radio channel is modified, receivers start searching until they find the
new Radio channel.
Slow blinking: Transmitter
OOKK
, no
DDMMXX 551122
signal.
Switched on : Transmitter
OOKK
,
DDMMXX 551122
signal
OOKK
.
This function allows to set the range of DMX channels to transmit on band
2 (GREEN LED) to the paired receivers and the RADIO channel to use,
among the ten available (from 0G to 9G).
4.4 SETTING OF TX2
4.5 LED 2 FUNCTION (GREEN)

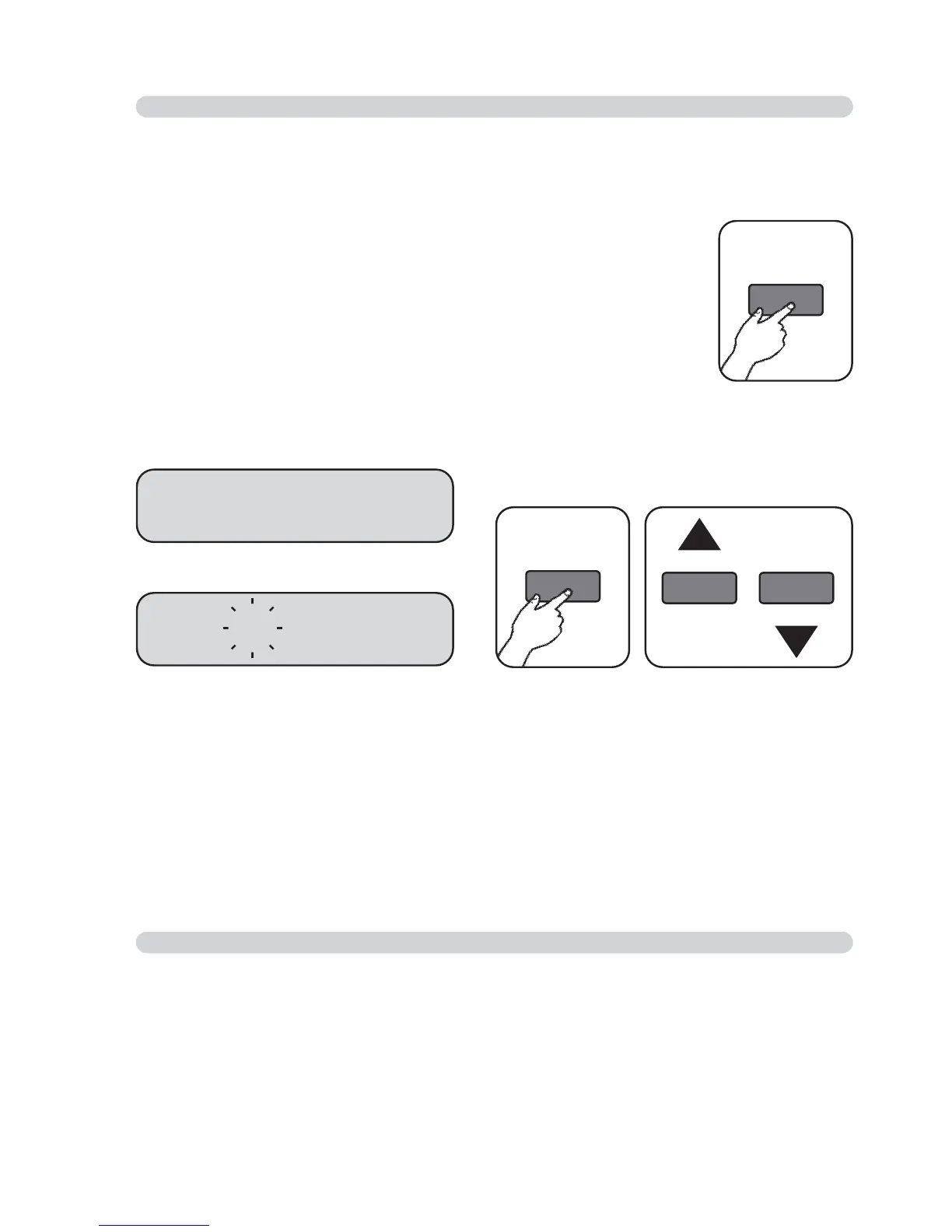

Fig. 12
TX2
:
49 - 128 C
:
0G
Fig. 13
Fig. 15
SET
Fig. 14
TX2
:
49 128 C
:
0G
Fig. 16
MODE
