Next DMX 512 User Manual

With MODE key ( Fig.46 ) find the text like in ( Fig.47 ).
To change the setting hold SET key ( Fig.48) until the value starts
blinking ( Fig.49).
Use UP/DOWN keys to change the value ( Fig.50).
When finished, confirm with SET key (Fig.48
It is advisable not to use the same Radio channel found by the receiver.
NN..BB..::
If you get problem of transmission, try changing the Radio channel.
When Radio channel is modified, receivers start searching until they find the
new Radio channel.
Slow blinking: Transmitter
OOKK
, no
DDMMXX 551122
signal.
Switched on : Transmitter
OOKK
,
DDMMXX 551122
signal
OOKK
.
NN..BB
.: If a Radio channel between
00RR aanndd 99RR
is used, the led is
RReedd
.
If a Radio channel between
00GG aanndd 99GG
is used, the led is
GGrreeeenn
.
This function allows to set the range of DMX channels to transmit on band
1 (RED LED) to the paired receivers and the RADIO channel to use, among
the ten available (from 0R to 9R).
6.2 SETTING OF TX1
6.3 LED 1 FUNCTION

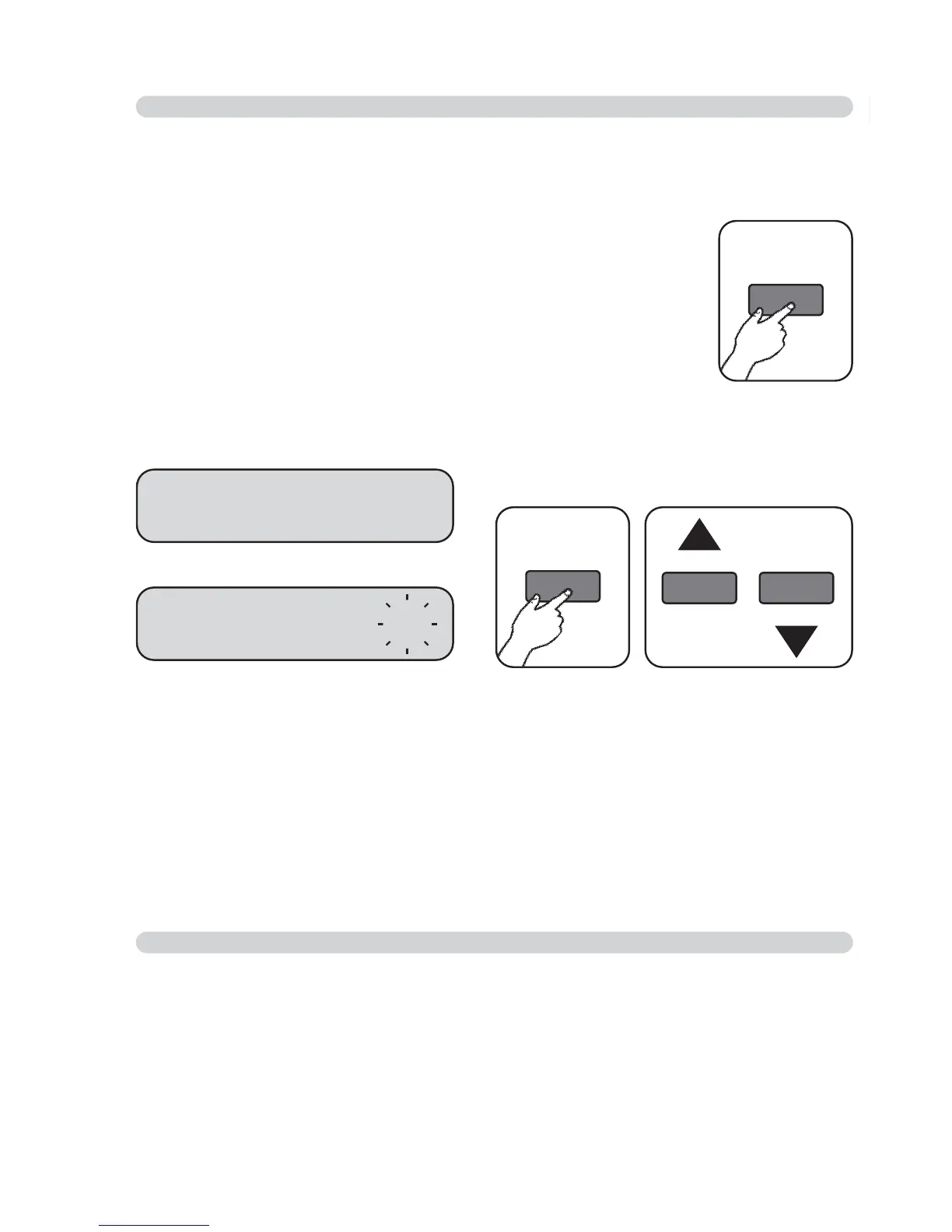

Fig. 46
TX1
:
48ch C
:
0R
Fig. 47
SET
Fig. 48
Fig. 50
MODE
Fig. 49
TX1
:
48CH C
:
0R
