Nexus 21 E-550 - Page 18

18

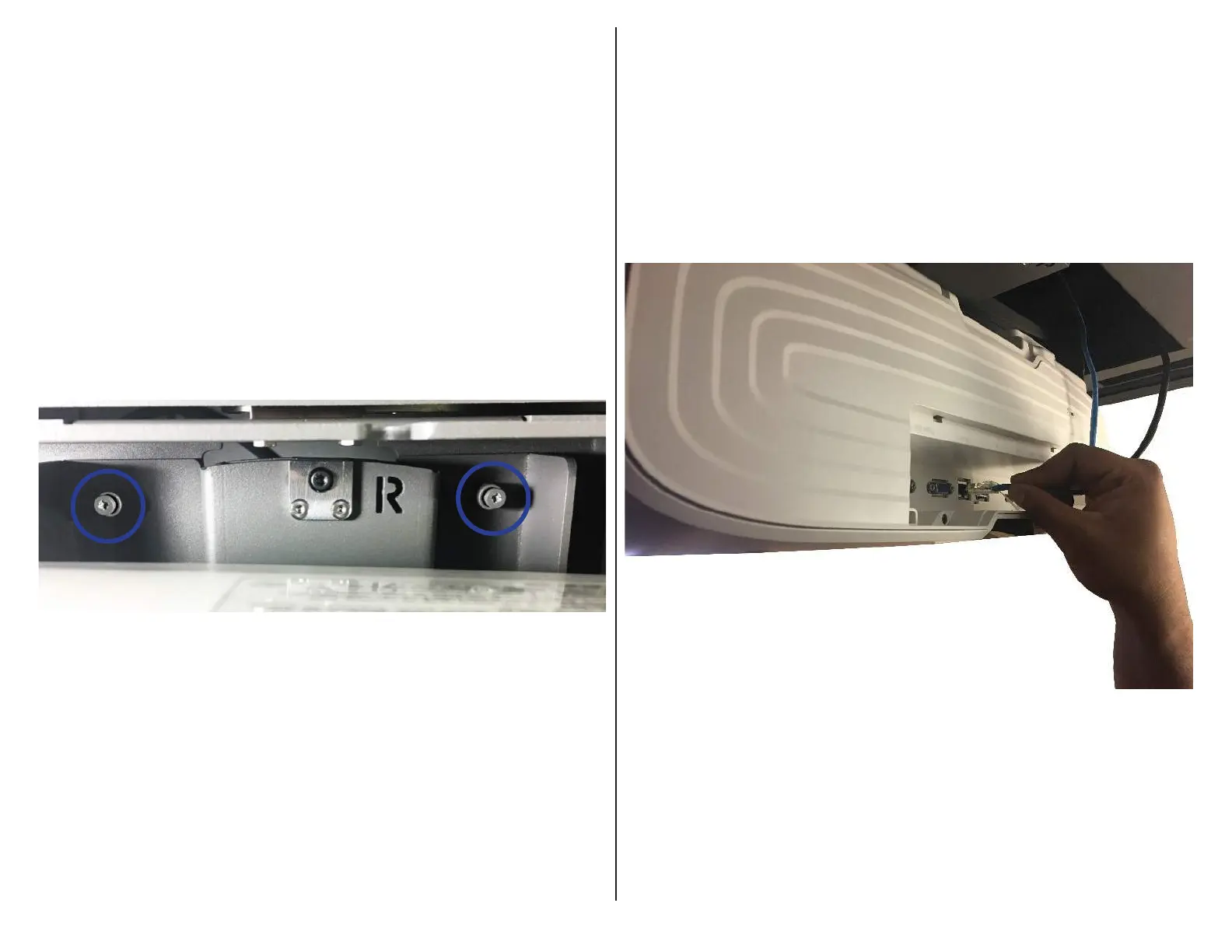

Step 10: Fasten the (4) Captive Hex Screws on the Projector Mount using the
provided T-Handle to secure the it to the lift mechanism.
Note: There are (2) Captive Hex Screws on the left and right of the Universal
Adjustment Bracket.
Step 11: Connect and manage any cables for integration or the projector and
feed any excess cable back up and through the Left Cable Terminal.
