Nexus 21 E-550 - Page 19

To Next Page

To Previous Page

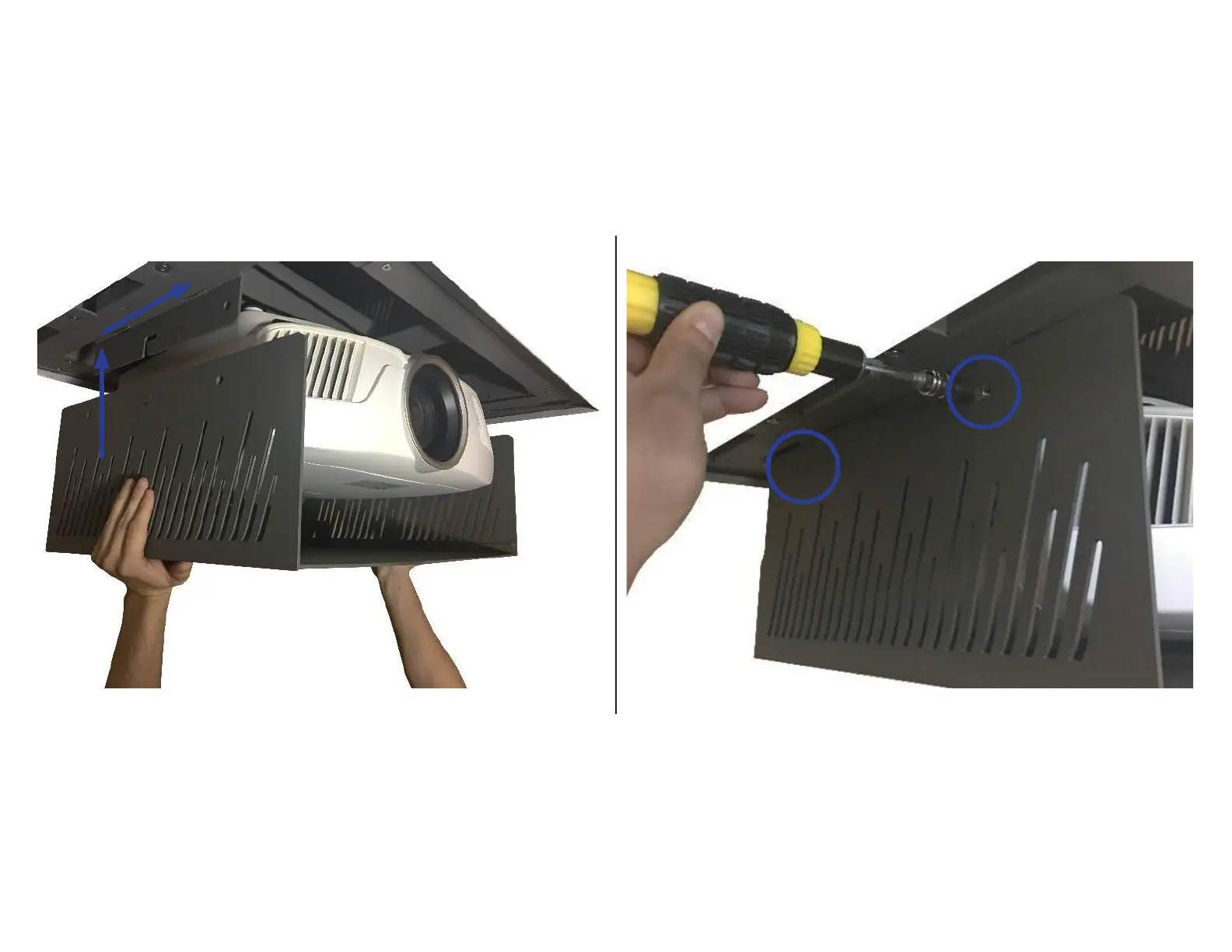

Step 12: Press and slide the Carrier Shroud up and into the L shaped slots located on the left and right side of the Crossmember then fasten it using (4) 10-32 x

9/16” FHMS Screws, (2) per side.
