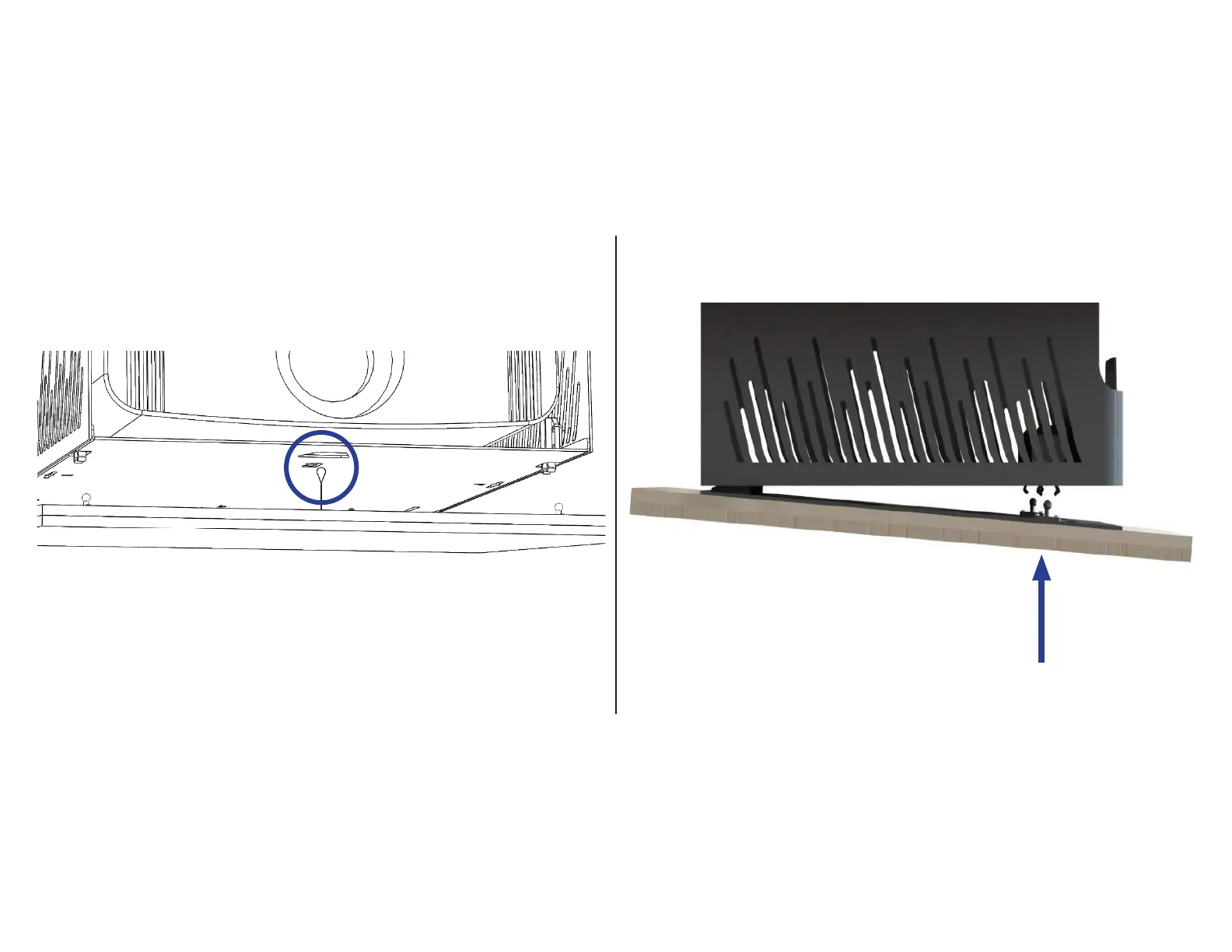

Step 14: Slide the Metal Tabs of the Interface Plate into the Slotted Holes on the Carrier Shroud, hook the Safety Lanyard onto the Carrier Base, then press the

Pins into the Latches on the Carrier Shroud.
