Nexus 21 L-45 - Page 9

9

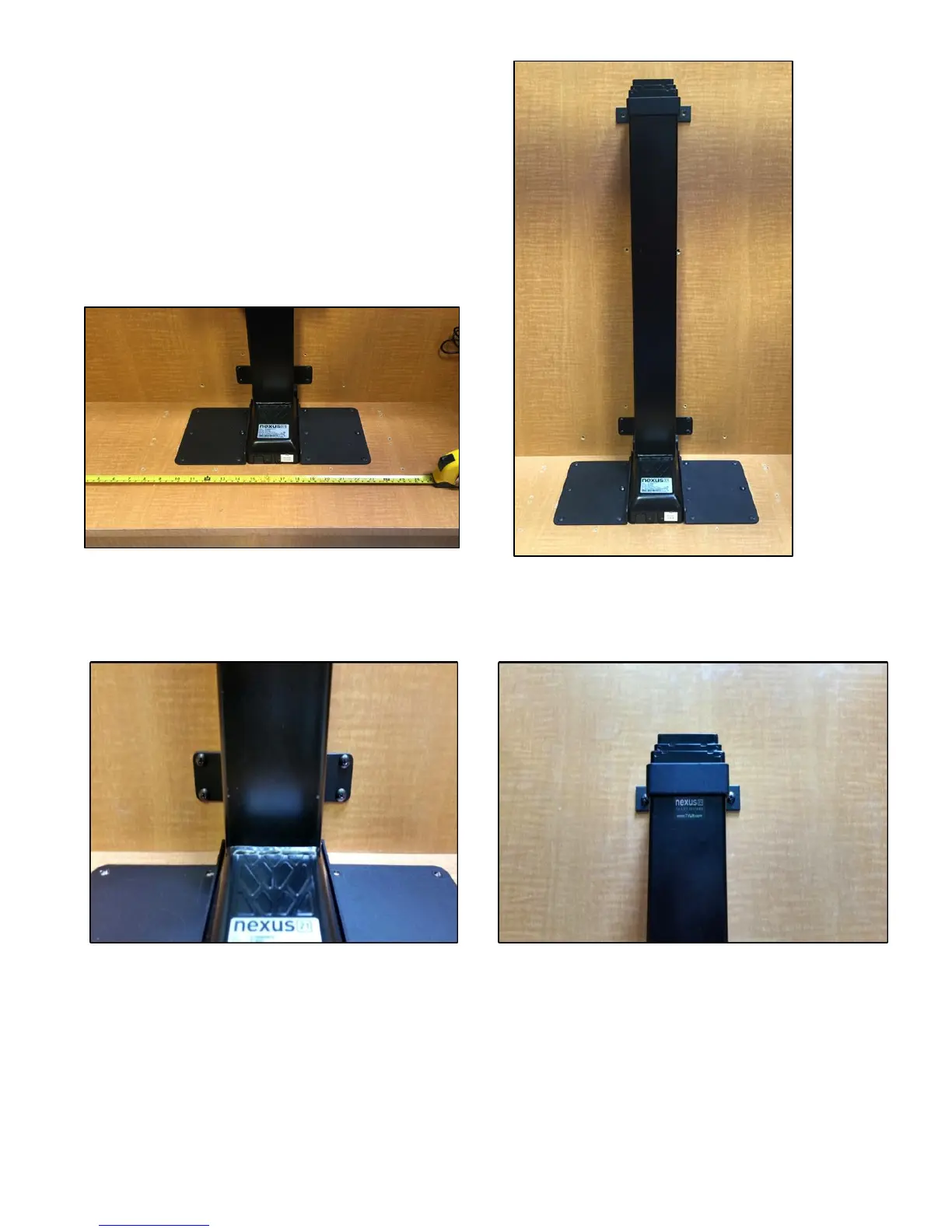

Step 5a: Place the assembled mechanism in the cabinet.
At this point ensure the lift is centered horizontally.
Step 5b: Using (4) #10 x 3/4” THWS mount the Step 5c: Using (2) #10 x ¾” THWS attach
Lower Support Bracket to the back wall of the the Upper Support Bracket to the back wall of
cabinet. the cabinet.
