OVERVIEW & DUTIES UPON ARRIVAL
4
The Pixellot streaming system consists of the following:
• 1x Pixellot camera, which connects to, and is powered by, the computer
via 2x Cat6 ethernet cables*
• 1x Pixellot computer requiring hardline internet access and power
• 1x OCR scoreboard camera (indoor only), which connects to, and is
powered by, the computer via 1x Cat6 ethernet cable
• 1x Scorelink device (outdoor only), which connects to, and is powered by,
the computer via 1x USB cable
On the day of install, upon arriving onsite, proceed with the following:
1. Meet with onsite contact and determine camera and computer
placement (see next page)
2. Acquire Pixellot equipment from onsite contact
3. Verify part manifest is complete and shipment is not damaged

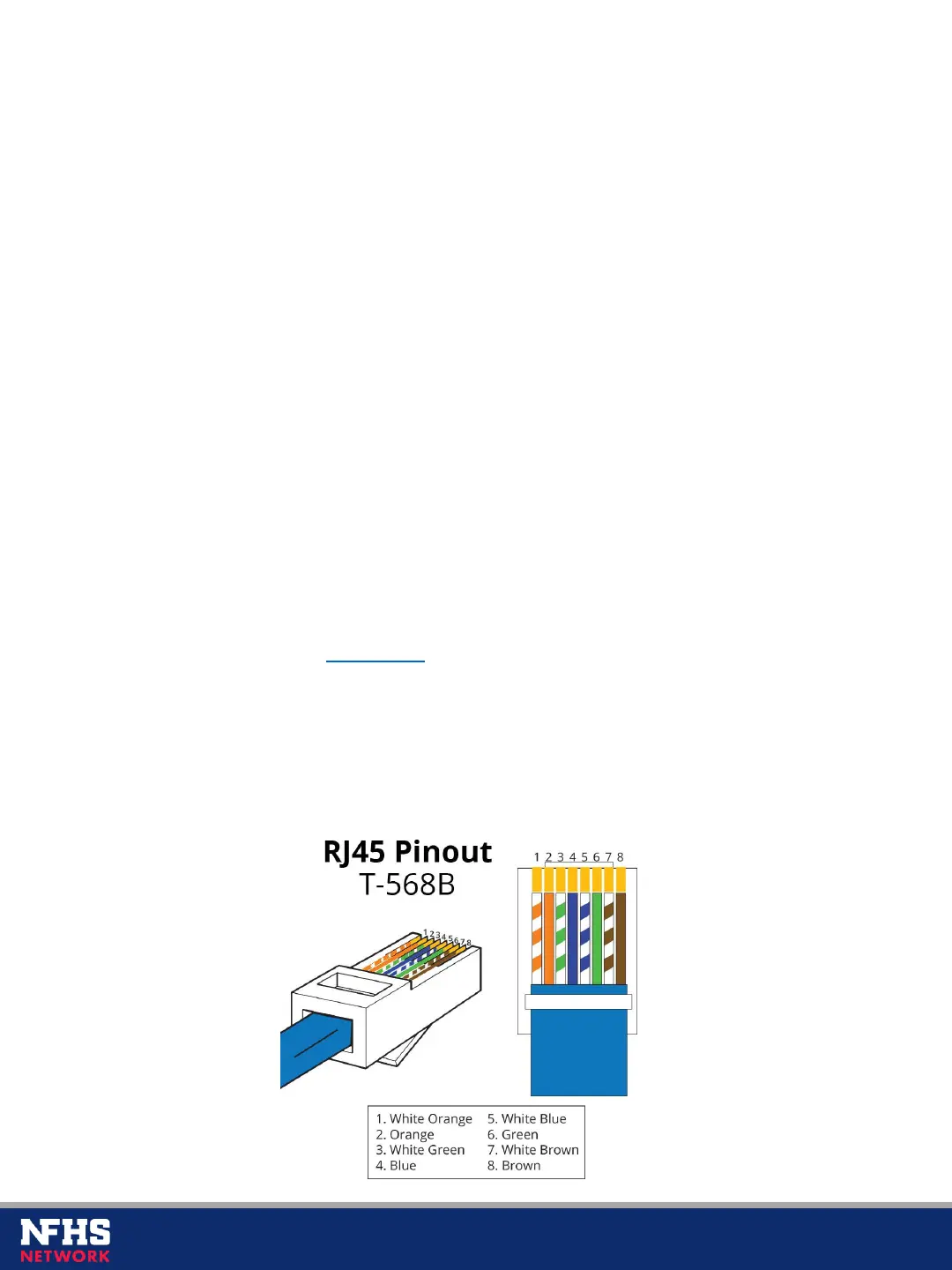

*When terminating the Cat6 cables, please use pinout B as shown below:
