In-Wall Loudspeaker Installation Guide
7. The speaker assembly mounts to the existing ceiling via six plastic mounting clamps (dog-legs) on the back of the speaker assembly
that will swivel out 45˚ and lower to “sandwich” the speaker assembly in place between its protruding outer frame and the rear surface
of the drywall. Begin this phase by being sure the dog-legs are rotated sideways (like the speaker came packed) so that the body of the
speaker assembly can slide through the mounting bracket. Exercise caution not to damage the driver diaphragms themselves. (fig. 8).
8. Tighten each mounting screws a little at a time like lug nuts on a car wheel, until each one is snug, making sure not to over tighten
as this may compromise the fit of the speaker assembly. The use of power screwdrivers is not recommended. If you do, set the ratchet
tension loosy-goosy.
Painting
Don’t. But if you must to keep the homeowner or decorator happy, take the grill to a professional painter. Bring a sample of the color
you want with you along with a box of chocolate (for the painter). High-end custom automotive painting shops can match the color and
paint the grill without plugging up the 2,145 grill holes. We have extra grills available, for a charge, if you do not heed our warning and
try to paint the grill yourself with latex paint.

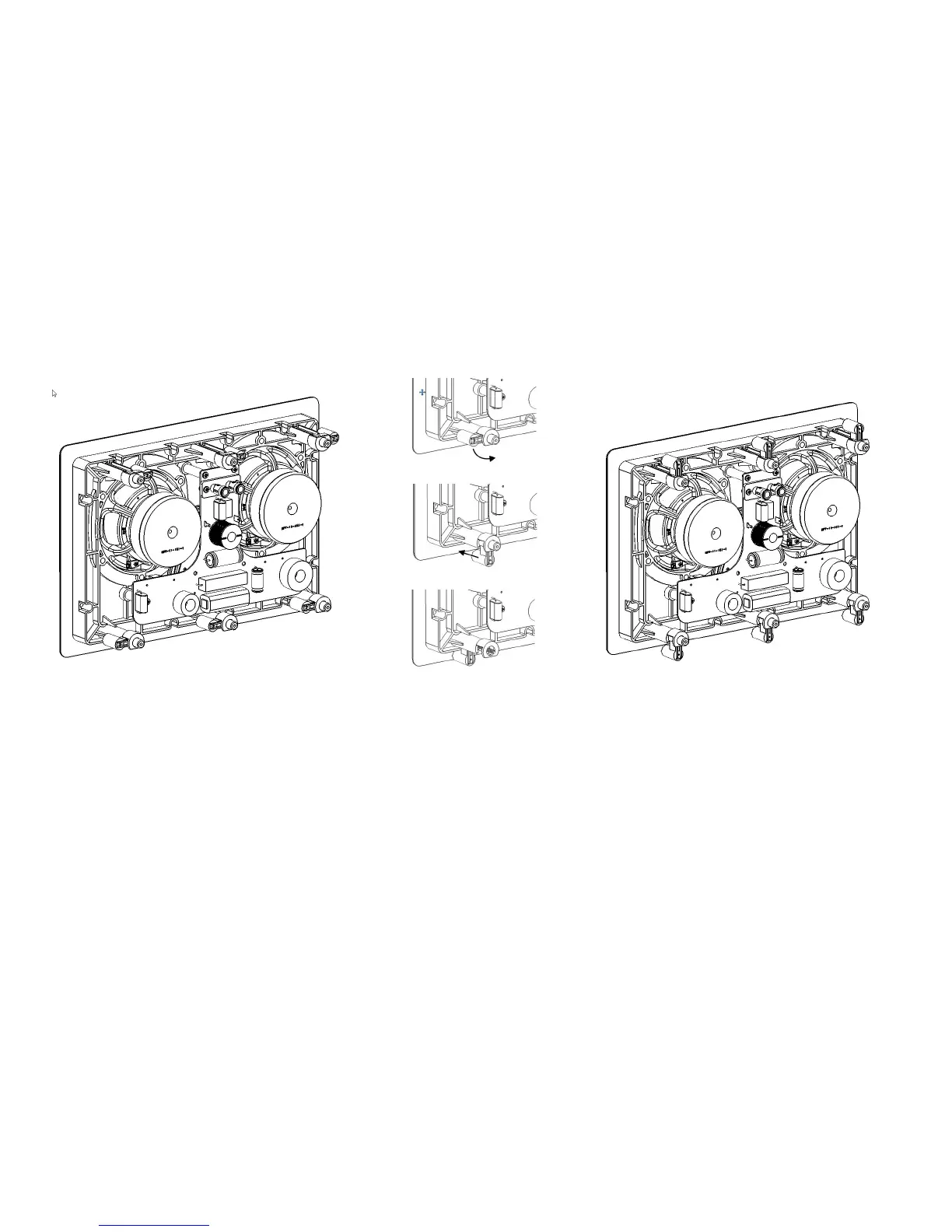

Fig. 8
