NHT iW4 ARC In-Wall Loudspeaker Installation Guide
Introduction
We’re glad you chose an NHT in-wall loudspeaker. We won’t let you down – we promise. Please take a few minutes to read this entire
Installation Guide prior to installing your new speakers. The information provided will help you to obtain maximum performance from
your audio system. If you have questions or need assistance at any time before, after or during the installation or operation of your new
speakers, we are here to help.
Our telephone number is: 707-747-0122
Our web address www.nhthifi.com
What’s In The Box?
(1) iW4- ARC speaker assembly
(1) Metal grill
(1) Cardboard Cutout Template
Before we start, please, consider hiring a pro installer to do this while you go fishing with some old friends.
Cutting holes in walls (and ceilings) and installing heavy objects above you and your loved ones heads is serious business. There are
also numerous decisions concerning wiring, control systems, methods, and best practices only a professional will have knowledge of.
Please consult a professional to install this speaker.

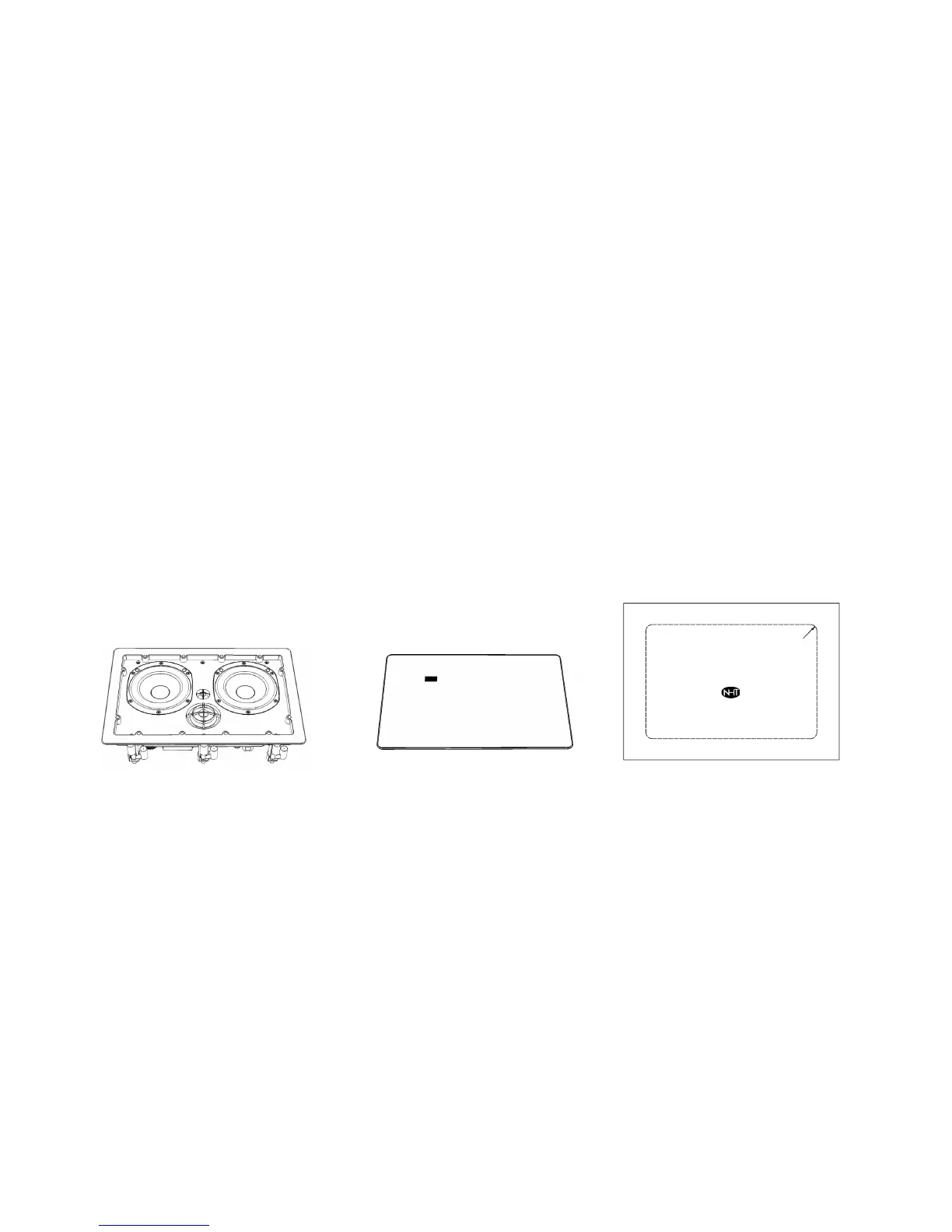

Speaker Assembly Metal Grille
Cardboard Cutout
Template
IW4 Cutout
Template
R13

NHT iW4-ARC Specifications

Electrical Specifications

average impedance	8Ω
recommended power	20-150W
max RMS power handling	150W

Coverage

coverage angle	60˚ off-axis

Dimensions

cutout dimensions	13.75” x 9.17”
depth behind the wall	3.25”
finished dimensions	14.86” x 10.31”
