NHT iiW4 ARC In-Wall Loudspeaker Installation Guide

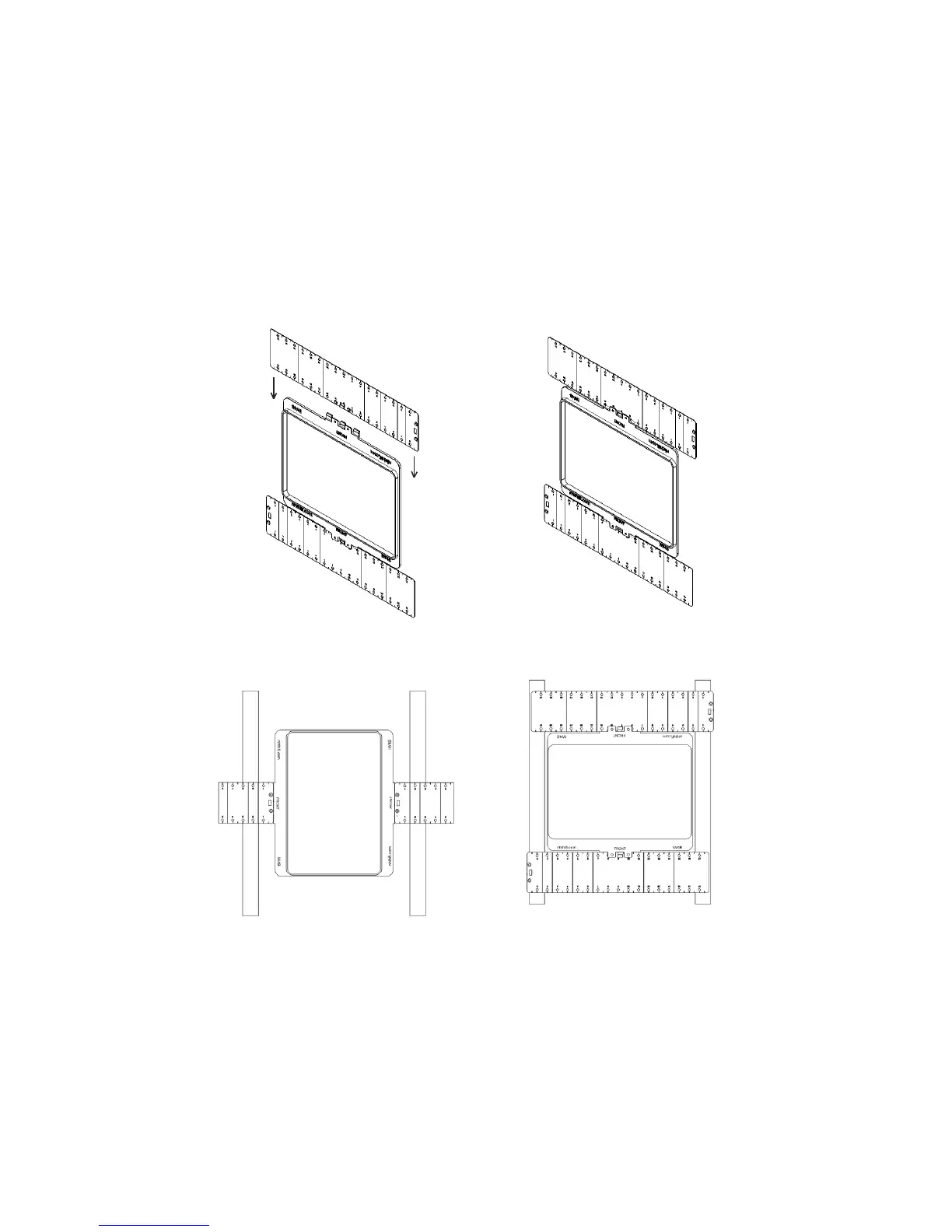

1. Once you’ve selected the desired location(s) for the speakers, begin installing the iW4B pre-construction bracket(s) between adjacent
studs (or ceiling joists). First attach the mounting wings to the bracket by inserting them into the locking plastic tabs in the side of the
bracket (fig.3).
2. The wings feature progressively scored sections (1”, 1”, 2”, 2”, 2”, 3”, 3”) with screw holes spaced in one-inch increments to help you
align the bracket. The iW4B pre-construction bracket has NHT logos on one side - this side should be oriented away from the drywall
– towards the house siding or “sky”. Attach the wings to the joists using the 50mm flathead screws, use two screws for each wing. Cut
off the extra portion of the wing. (fig.4).
Installation: New Construction Continued....
Fig. 3
Fig. 4

NHT iW4-ARC Specifications

Electrical Specifications

average impedance	8Ω
recommended power	20-150W
max RMS power handling	150W

Coverage

coverage angle	60˚ off-axis

Dimensions

cutout dimensions	13.75” x 9.17”
depth behind the wall	3.25”
finished dimensions	14.86” x 10.31”
