NHT M-00 User Manual

INTRODUCTION:
Thank you for your selection of the M-00. Your studio monitors are a key element in the countless sonic decisions
made during audio production. They must provide a transparent and neutral assessment of the sound, so that you
have the information you need to deliver exceptional product. The M-00 is a studio’s “Swiss Army Knife,” capable
of superb resolution and great flexibility. Investing time to learn about the product’s features and operation will
reward you with the best possible performance.
PUSH
M-00
Serial Number:
Integrated Active Monitor - 75w/ch rms
NHTPro, Benicia, CA

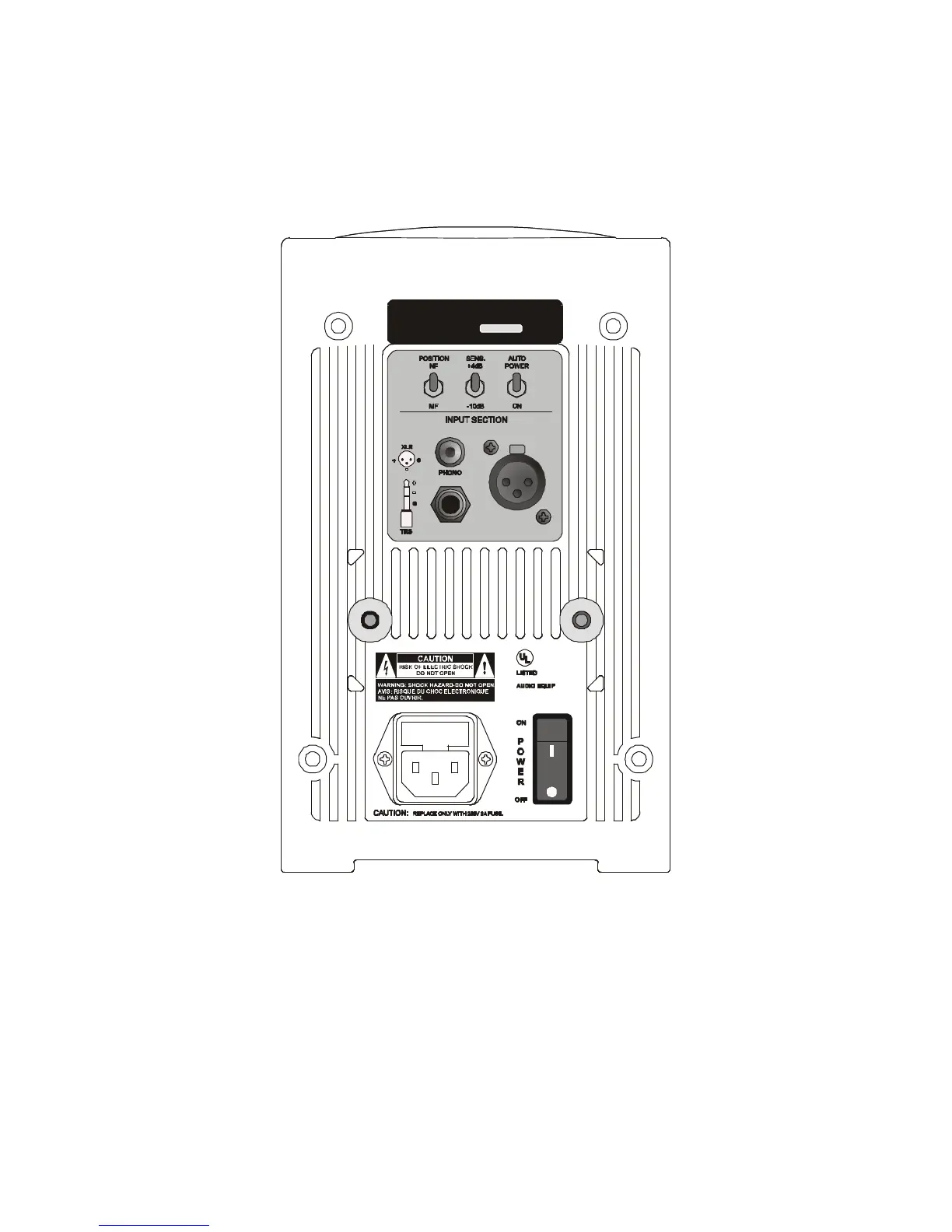

Fig. 1 NHTPro M-00 Rear View
CONNECTING THE SYSTEM:
The M-00 can accept virtually any "line level" signal via the XLR, TRS, or Phono connectors located on the
rear panel. There is no mixer in the M-00, and only one source should be physically connected to the speaker at
any time. The XLR and TRS inputs are wired in parallel and are fully balanced for low noise operation. These
inputs can also accept unbalanced sources. The input jacks are wired according to the AES/IEC standard as
shown in Figures 2 and 3 below:

NHT M-00 Specifications

Power

amplifier continuous power	75W
amplifier peak power	150W
peak acoustical power	111dB SPL

Audio Specifications

woofer size	4.5"
tweeter size	1"
residual hum/noise	<20dB SPL
THD at 90dB SPL	<1.0%

Frequency Response

response at 1 meter	98Hz ~ 20kHz
response at 2 meters	93Hz ~ 20kHz
6dB LF cutoff	80Hz

Weight and Dimensions

height	9"
width	5.7"
depth	7.3"
weight	14 lbs
