This method of connection is recommended if you have a receiver with no line level preamplifier output of any
sort and you want your L & R speakers to receive a high-pass filtered signal. The SA-2 may be connected to
the system at speaker level between the receiver and the speakers. The SA-2’s speaker-level output has a
fixed 100Hz high-pass filter that removes frequencies below 100Hz before sending the signal on to the speak-
ers. The speaker-level high-pass filter is not adjustable. This method is not recommended if the L & R speak-
ers are large, full range models.
1) Connect a pair of speaker cables from your receiver’s front L & R speaker output terminals to the SA-2’s
INPUT FROM AMPLIFIER barrier strip.
2) Connect a second pair of speaker cables from the SA-2’s OUTPUT TO SATELLITES barrier strip to the front
L & R speakers.
3) Connect the SA-2’s SUBWOOFER OUTPUT to the SW2Si input terminals with speaker cable.
8

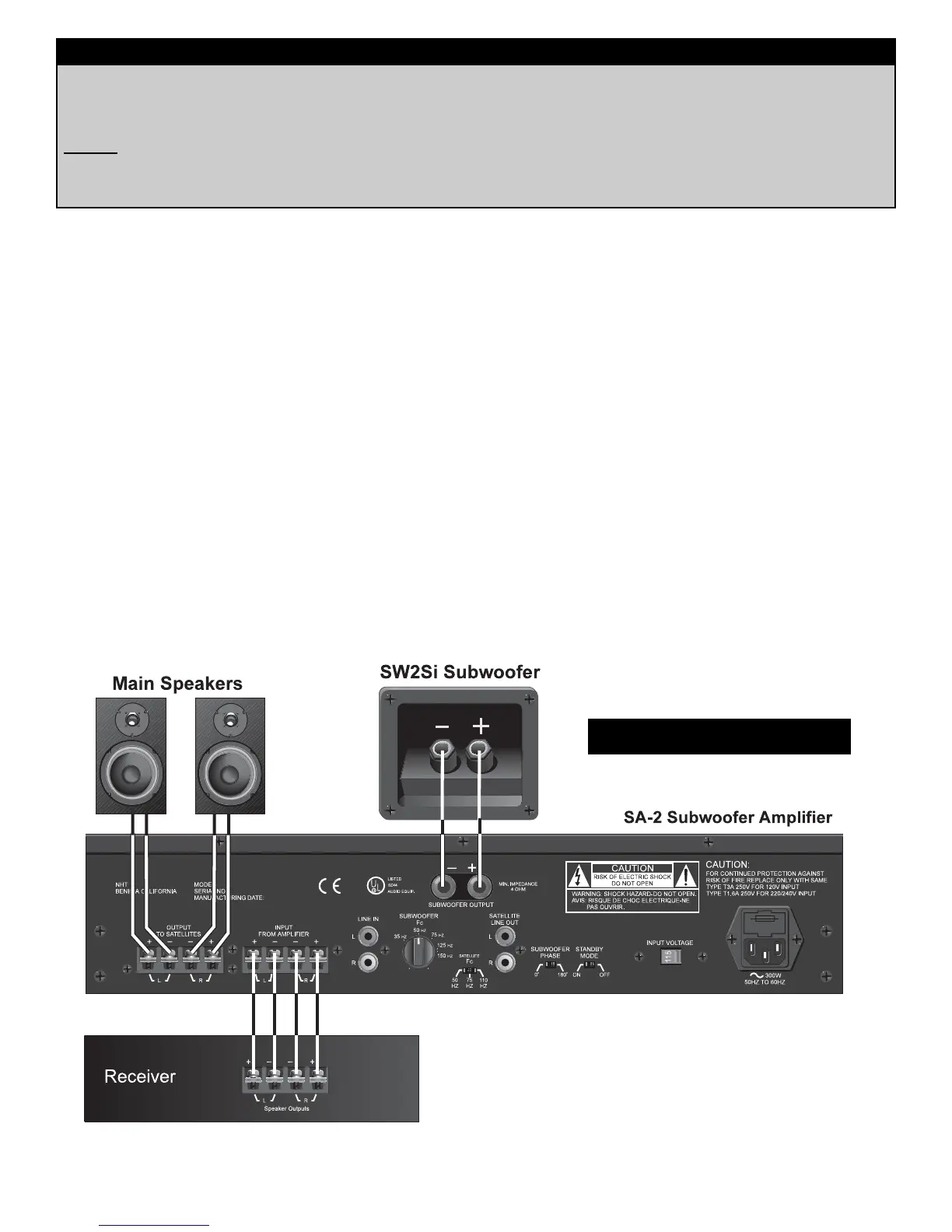

Connect the SA-2 at speaker level from the receiver’s speaker outputs,
with fixed high-pass filter
Use if:
You wish to send your L & R speakers a high-pass filtered signal
Your receiver has no “Pre-Out”, “Line Out” or “Subwoofer Out” jacks
SW2Pi Connection Method #3
SW2Pi Connection Method #3
