This method of connection is recommended when you have a receiver with no line level preamplifier output of
any sort and you want to run your speakers full range (no high-pass filtering). If your receiver features two sets
of speaker output terminals (“Speaker A” and “Speaker B”), you may use “Speaker B” to connect the SA-2.
1) Connect a pair of speaker cables from your receiver’s “Speaker A” outputs directly to your main speakers.
2) Connect a second pair of speaker cables from your receiver’s “Speaker B” outputs to the SA-2’s INPUT
FROM AMPLIFIER barrier strip.
3) If your receiver is not equipped with “Speaker A” and “Speaker B” output terminals, you may connect both
the L & R speakers and the SA-2 in parallel from the same terminal. Connect one pair speaker cables from the
receiver’s speaker output terminal to the L & R speakers. Connect a second pair of speaker cables from the
receiver’s same output terminal to the SA-2’s INPUT FROM AMPLIFIER barrier strip. The SA-2’s barrier strip
input will not present a significant load to the receiver and will not compromise its output to the L & R speakers.
4) Connect the SA-2’s SUBWOOFER OUTPUT to the SW2Si input terminals with speaker cable
.
9

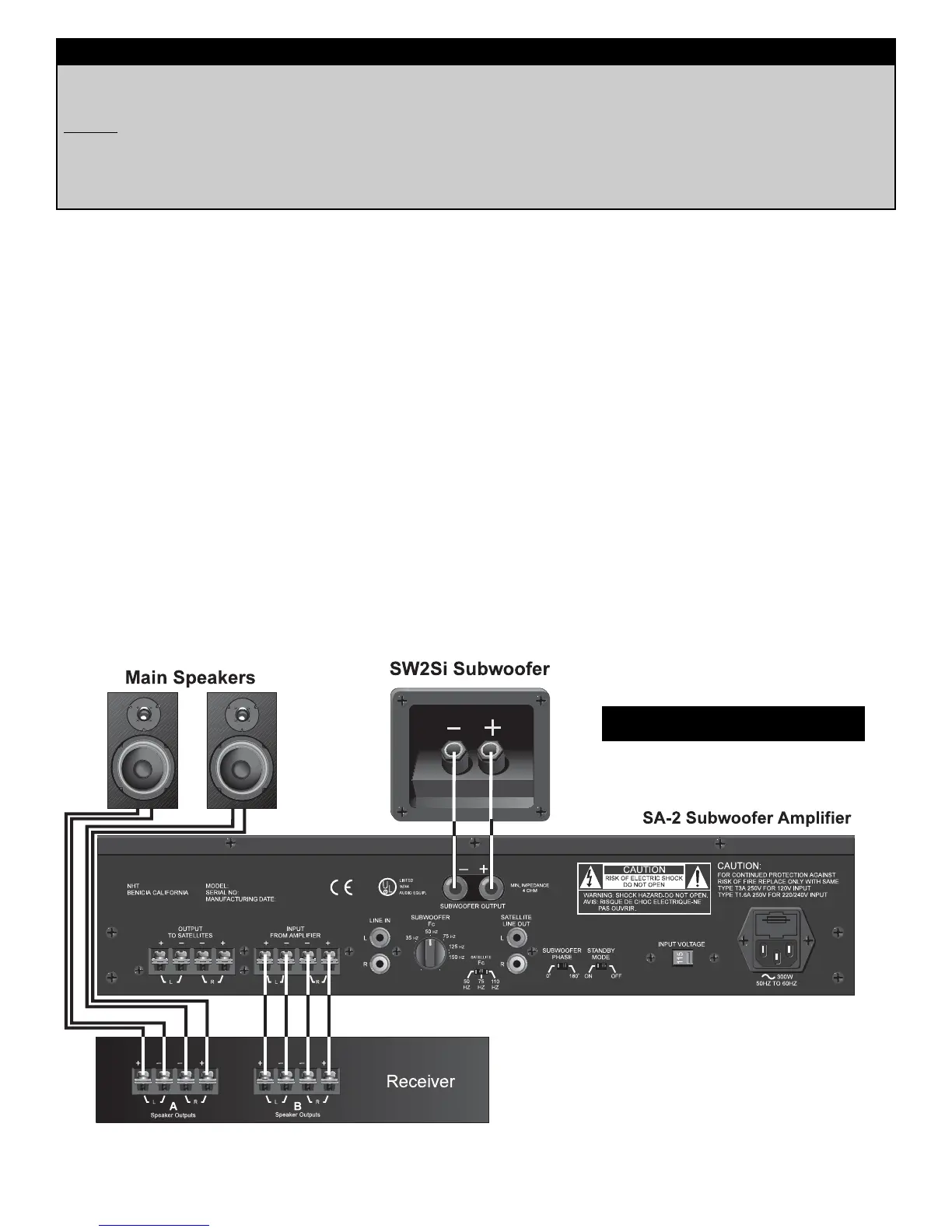

Connect the SA-2 at speaker level from the receiver’s speaker outputs,
with no high-pass filter
Use if:
You wish to send your L & R speakers a full range signal
Your receiver has no “Pre-Out”, “Line Out” or “Subwoofer Out” jacks
Your receiver has two sets of speaker output terminals: “Speaker A” and “Speaker B”
SW2Pi Connection Method #4
SW2Pi Connection Method #4
