I/O Connector

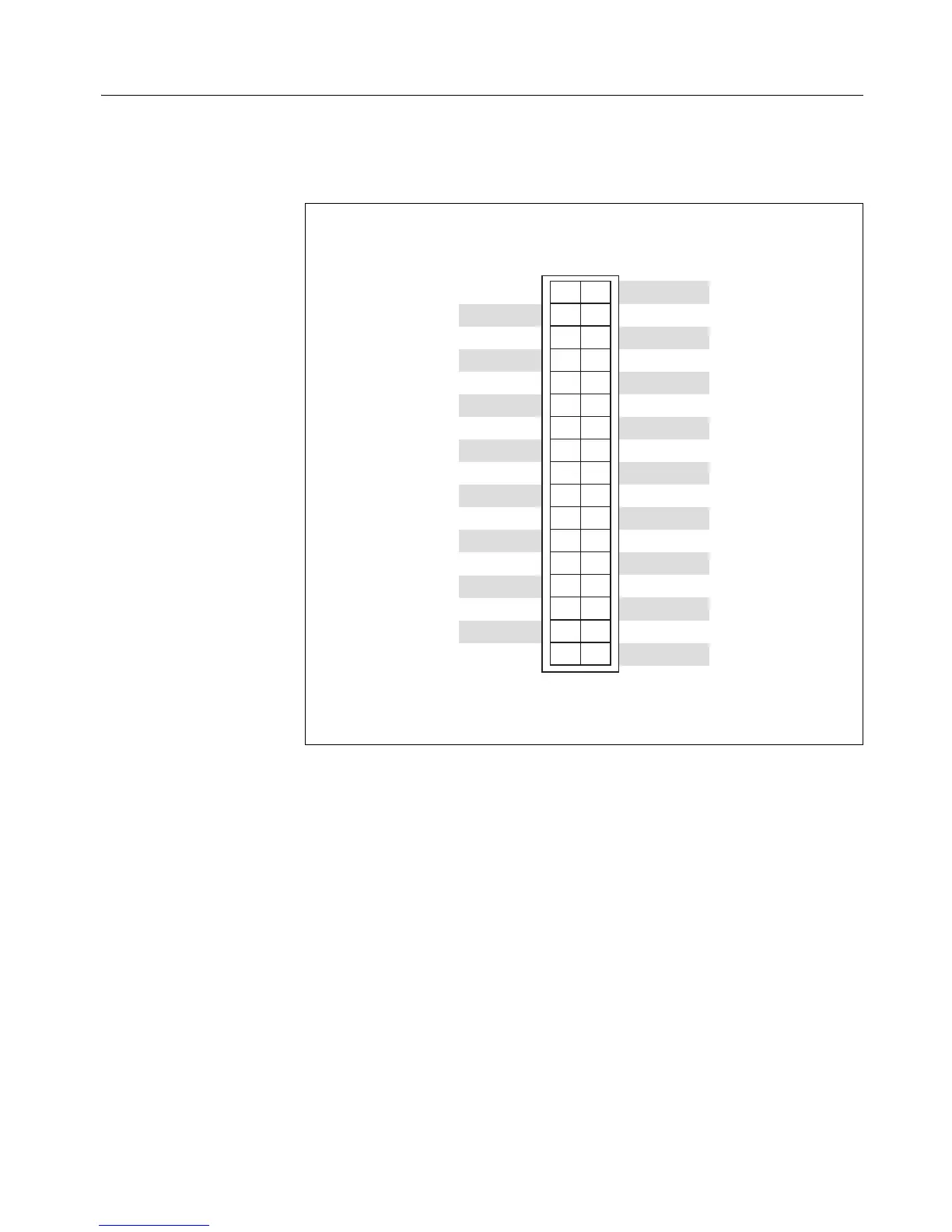

Figure 3 shows the USB-6008/6009 OEM device I/O connector pinout.
AI signal names are shown in single-ended mode. Differential mode signal
names are in parentheses.
Figure 3. USB-6008/6009 OEM Terminal Assignments
AO 1
AI GND
AI 7 (AI 3–)
AI 6 (AI 2–)
AI 5 (AI 1–)
AI 4 (AI 0–)
AI GND
VBUS
LED
P0.0
P0.2
P0.4
P0.6
P1.0
P1.2
+5 V
D GND
AO 0
AI GND
AI 3 (AI 3+)
AI 2 (AI 2+)
AI 1 (AI 1+)
AI 0 (AI 0+)
AI GND
D–
D+
D GND
P0.1
P0.3
P0.5
P0.7
P1.1
P1.3
PFI 0
34 33
32 31
3029
28 27
26 25
24 23
22 21
20 19
18 17
16 15
14 13
12 11
10 9
8 7
65
4 3
21
–
–
