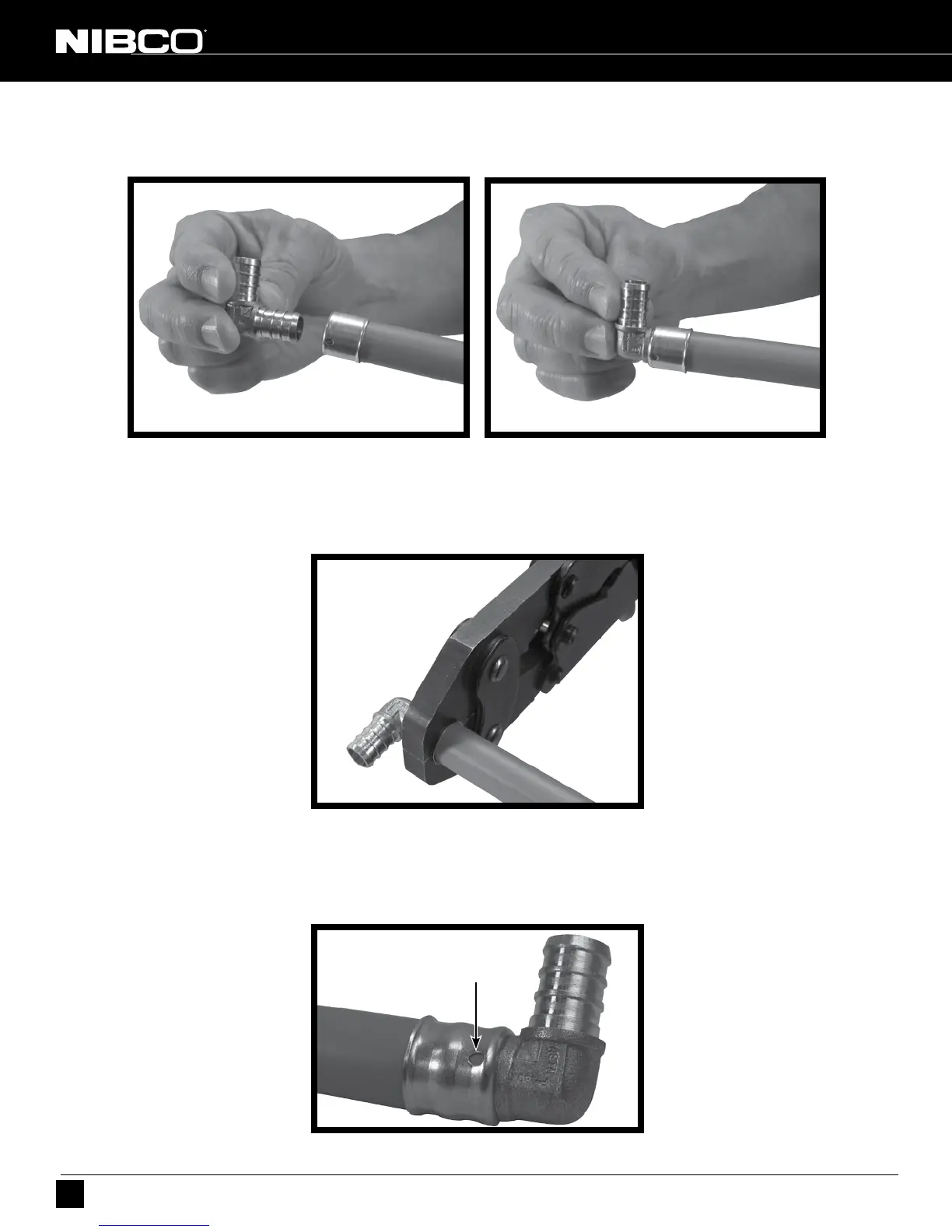

Step 3
Push the fitting into the pipe until it touches the fitting shoulder.
Step 4
Center the sleeve tool jaws over the ring. Hold the tool at 90 degrees to the sleeve and close the jaws completely. Crimp only one time.
If crimped more than once, you must cut out the connection and begin again at Step 1.
Step 5
Visually inspect the completed connection. If the pipe can be seen from the view hole on the side of the sleeve and a “W” shaped crimp
has been formed around the sleeve, then a good connection has been made.
