Nibe AXC 30 User Manual

General
This accessory is used to enable connection and control
of the following accessory functions. One AXC 30 is
required for each function.
In the control module, there are connections to enable
the connection and control of one of the following ac-
cessory functions. One, or more, additional accessory
functions require one AXC 30 each.
• shunt-controlled additional heat
• step-controlled additional heat
• extra climate system
• hot water comfort
• active cooling (4-pipe system)
• pool heating
• connection of several heat pumps.
COMPATIBLE PRODUCTS
• SMO S40
CONTENTS
Cable ties4 x
Heating pipe paste2 x
Insulation tape1 x
AXC module1 x
Aluminium tape2 x
Temperature sensor2 x

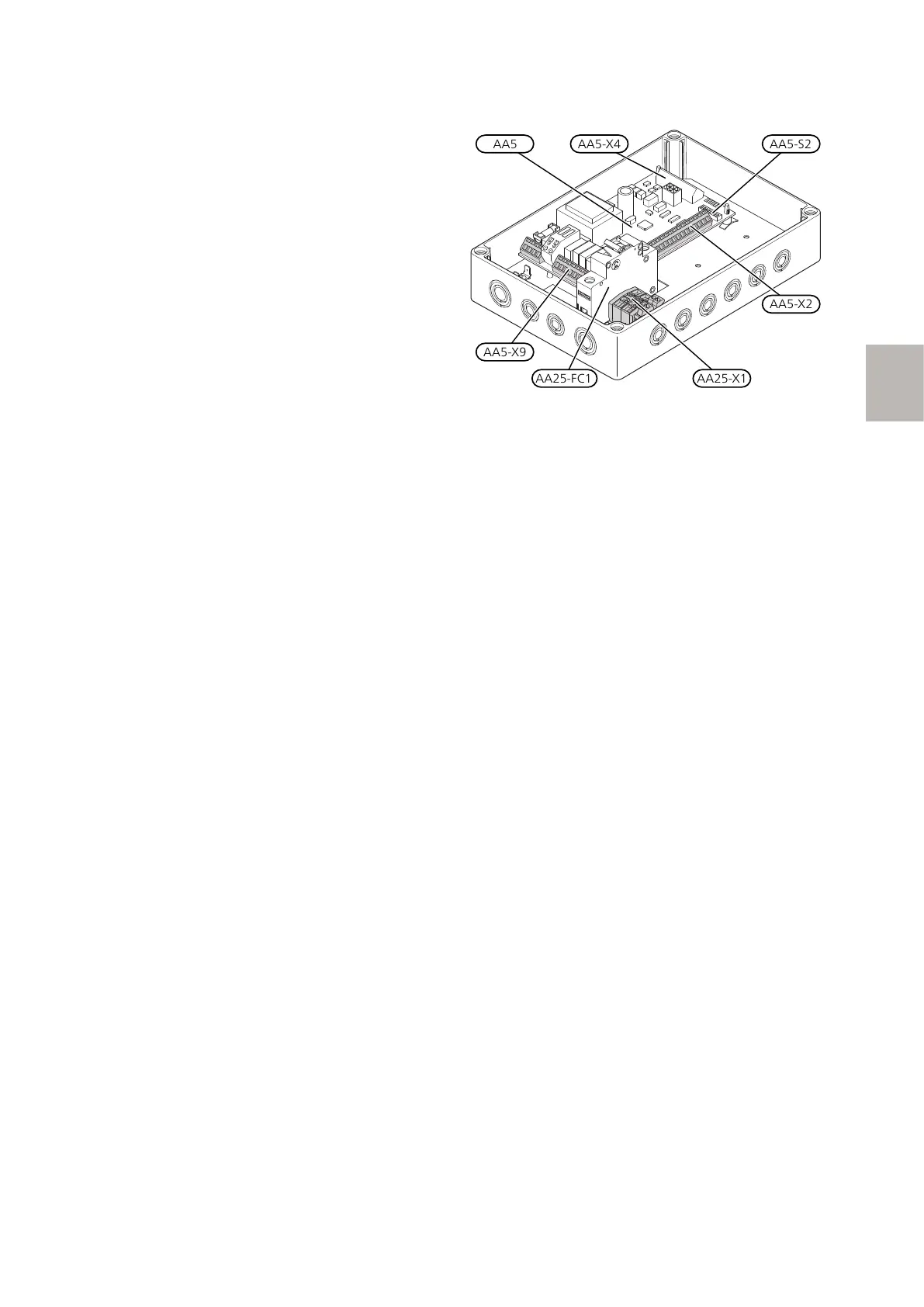

COMPONENT LOCATION, AXC MODULE
(AA25)
AA5-X4 AA5-S2
AA5-X2
AA5
AA25-X1
AA5-X9
AA25-FC1
ELECTRICAL COMPONENTS
Accessory cardAA5
DIP switchAA5-S2
Terminal block, inputsAA5-X2
Terminal block, communicationAA5-X4
Terminal block, outputsAA5-X9
AXC moduleAA25
Miniature circuit-breakerAA25-FC1
Terminal block, power supplyAA25-X1
Designations according to standard EN 81346-2.
5AXC 30 S-series | GB
S
