ELECTRICAL CIRCUIT DIAGRAM
Part Specification Sheet 051069-8
Page 2/2 Created:2020-01-09 09:30
JOV 2020-01-09
Production SWI 2012-10-24
0.001

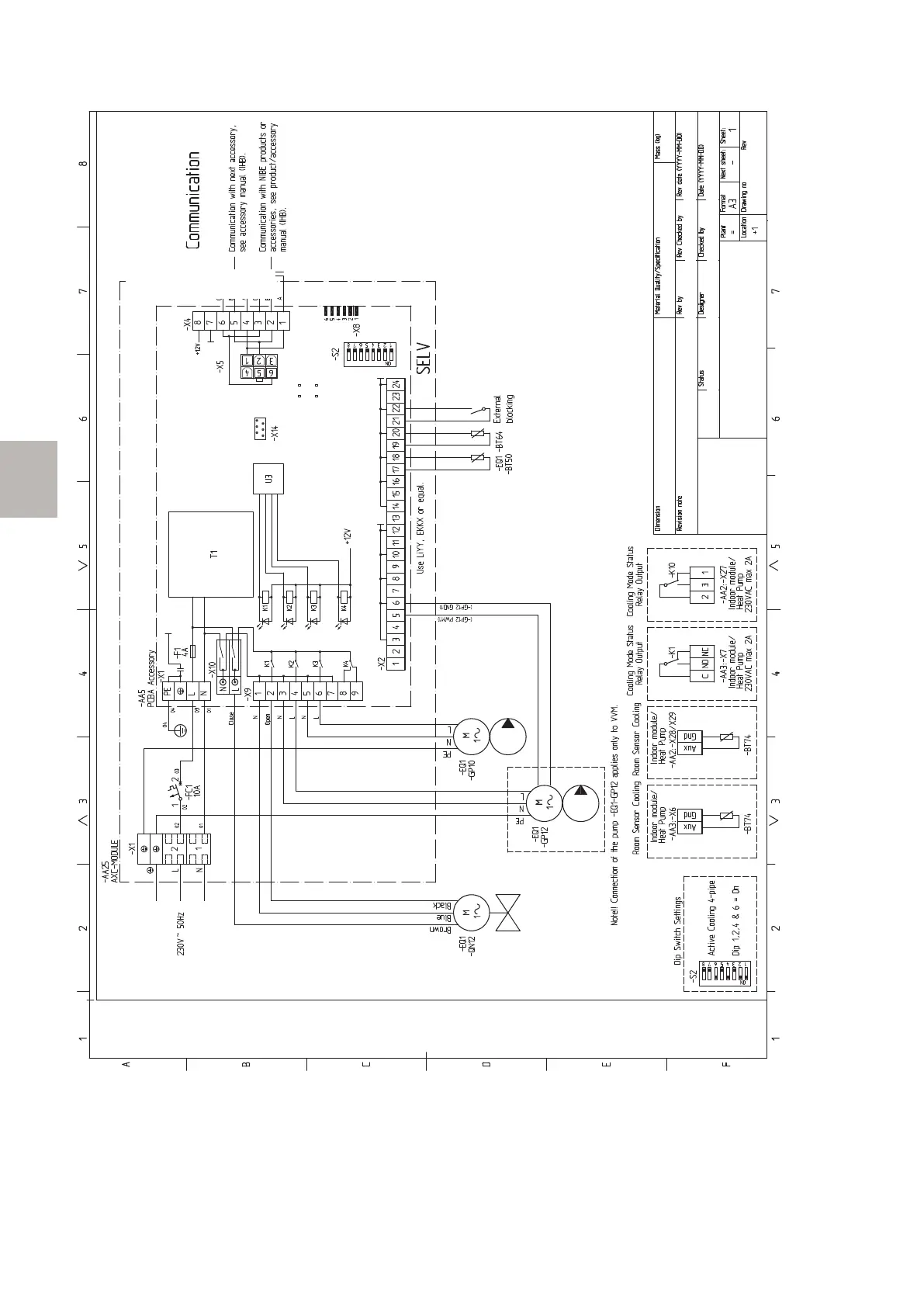

WIRING DIAGRAM ACS 310
ELSCHEMA ACS 310
051069 8
Pool heating
GENERAL
This function enables pool heating in your climate unit.
A reversing valve (CL11-QN19) is connected to control
the heating medium supply to a pool exchanger. The
reversing valve or, if required, the reversing valves (al-
though with the same control signal), is/are installed on
the heating medium circuit that normally goes to an
underfloor heating/radiator system.
