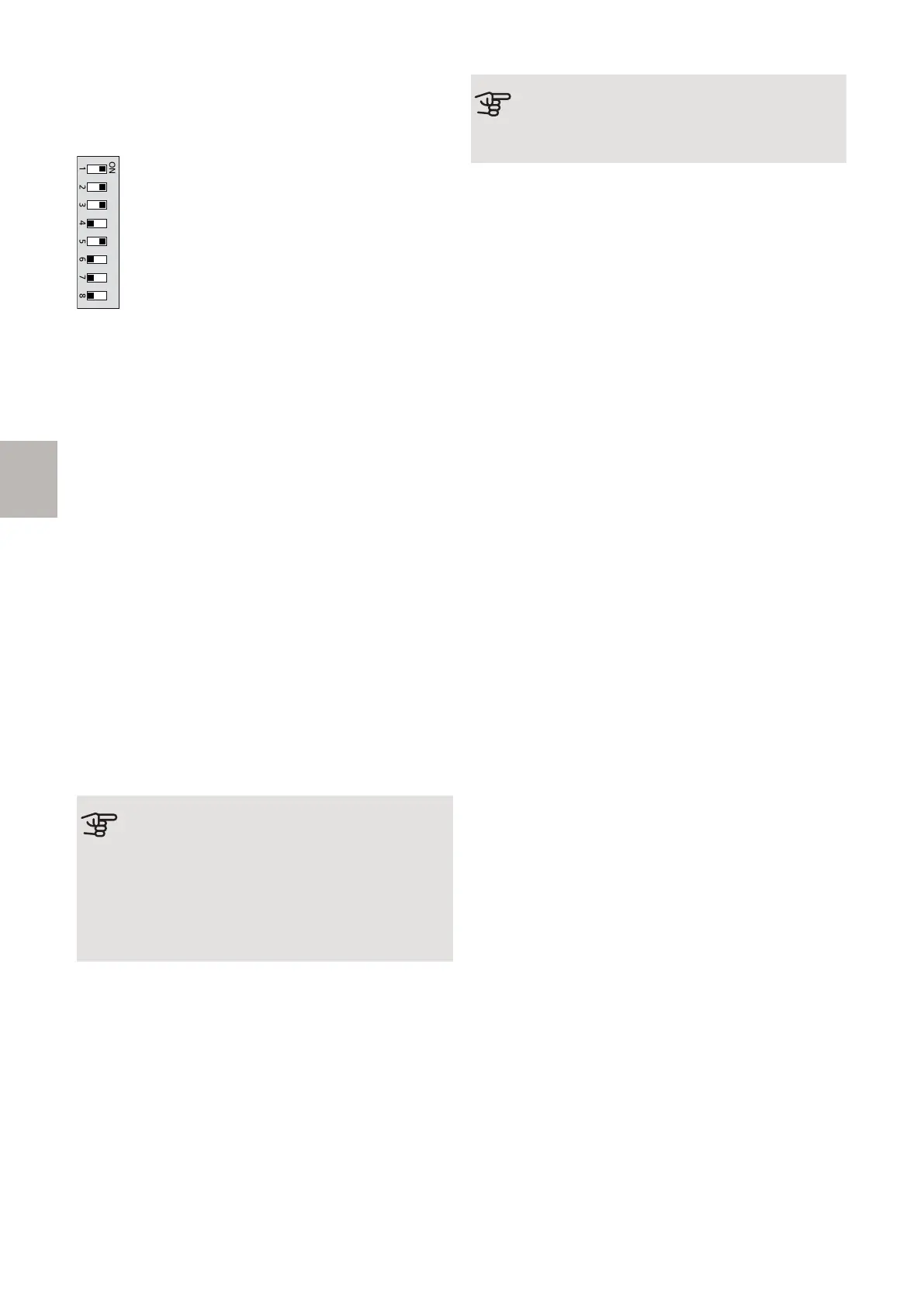

DIP SWITCH
The DIP switch (S2) on the accessory board (AA5) must
be set as follows.
PROGRAM SETTINGS
Program setting of AXC 30 can be performed via the
start guide or directly in the menu system.
START GUIDE
The start guide appears upon first start-up after the heat
pump installation, but is also found in menu 5.7 .
MENU SYSTEM
If you do not make all settings via the start guide or need
to change any of the settings, this can be done in the
menu system.
Menu 5.2.4 - accessories
Activating/deactivating of accessories.
Select: "step controlled add. heat".
Menu 5.3.6 - step controlled add. heat AXC30
Here you can perform the following settings:
• Select when the addition is to start.
• Set max permitted number of additional steps.
• If binary stepping is to be used.
Caution
"start additional heat" in the menus 5.3.6 (ex-
ternal) and 4.9.3 (internal) are factory set at
400DM. If both the additional heat options are
used and you want to have more steps, the
start difference needs to be changed in one of
the menus.
Menu 5.6 - forced control
Forced control of the different components in the heat
pump as well as in the different accessories that may
be connected.
EB1-AA5-K1: Activating additional step 1.
EB1-AA5-K2: Activating additional step 2.
EB1-AA5-K3: Activating additional step 3.
EB1-AA5-K4: Activating the circulation pump (GP10).
Caution
Also see the Installer Manual for the main
product.
AXC 30 F-series | GB56
