Nice A0 Series User Manual

DESCRIPTION
The electronic control units A0-A0/R are designed to operate single sliding gates, roller
shutters, overhead doors, electric blinds and canopies. The unit only works in the semi-
automatic mode.
The AR linear torque regulator card can be used on the A0/R version.
The units of the A0-A0/R series can have the following accessories:
A) NICE plug-in receivers.
B) Linear torque regulator (only on the A0/R version)
NOTE: When you are connecting or plugging in the different cards the unit must
not be powered.
9
OPTIONAL
CLAMP
AR
OPTIONAL
RADIO RECEIVER

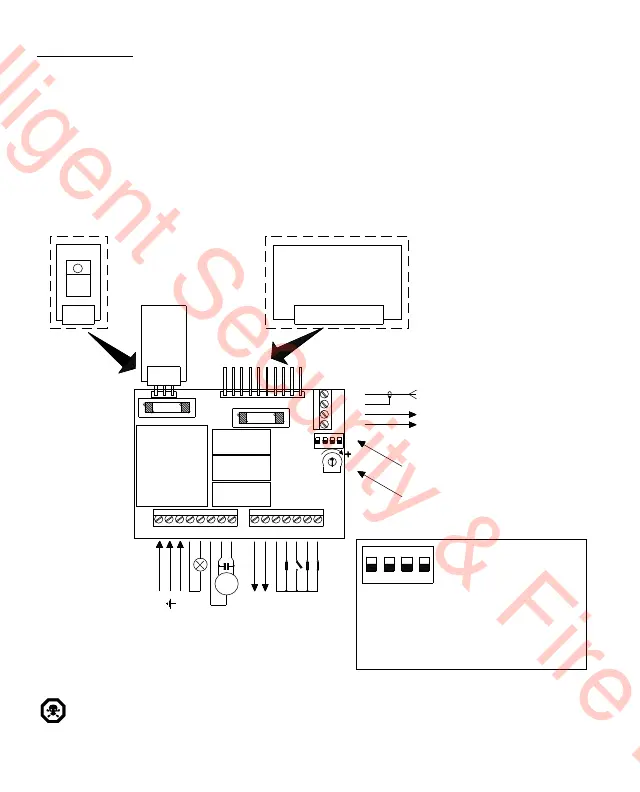

FIG. 1
5A
M
315 mA
COMMON
OPEN
CLOSE
8 7 6 5 4 3 2 1
15 14 13 12 11 10
9
1 2 3 4
44
43
42
41
OLS CLS SbS PHOTOCELL COMMON Max 100 mA 24 Vac
230 Vac FLASHING LIGH
'N' 230 Vac 'L' 230 Vac
AERIAL
2ND RADIO CHANNEL
FUNCTIONS DIP SWITCH
WORK TIME
ON
OFF
SWITCH 1 ON: COURTESY LIGHT FUNCTION
SWITCH 2 ON: PARTIAL REMOTE REVERSAL
SWITCH 3 ON: COMPLETE REMOTE REVERSAL
SWITCH 4 ON: LIMIT SWITCH EXCLUDED
OPEN CLOSE COMMON
1/2 HP MOTOR
}
