INSTALLATION OF THE MOTOR AND
THE ACCESSORIES
2
2.1 - Preliminary checks before installation and lim-
itations on use
• Check the condition of the product right after unpacking it.
• Make sure that the torque, the rotation speed and time of operation of this motor are
suitable for automating your awning. In particular, do not install the motor if its
torque is greater than that needed to move your awning. To choose the right
motor to the technical features of your awning refer to the the “Guide to Selection”
section, in the “Nice Screen” catalogue, – also available on www.niceforyou.com.
• Check the diameter of the winding roller. This must be chosen according to the
motor torque, as follows:
– For motors of size “S” (Ø = 35 mm) the minimum inside diameter of the winding
roller must be 40 mm.
• Additional limitations on use are listed in chapters 1 and 2 and in the technical
characteristics on the nameplate.
2.2 - Assembling and installing the tubular motor
Caution! – Read the safety warnings before proceeding. Incorrect installa-
tion could cause severe physical injury.
To assemble and install the motor, refer to fig. 3 (the accessories shown in fig. 3 are
not included in the package). To select the limit switch gear wheel (fig. 3-a), drive
wheel (fig. 3-b), motor bracket (fig. 3-f), refer to the “Nice Screen” catalogue, which
is also available on www.niceforyou.com.
2.3 - Installation of accessories
After installing the motor, install the accessories, if required. In order to identify those
that are compatible and choose the models desired, see the “Nice Screen” cata-

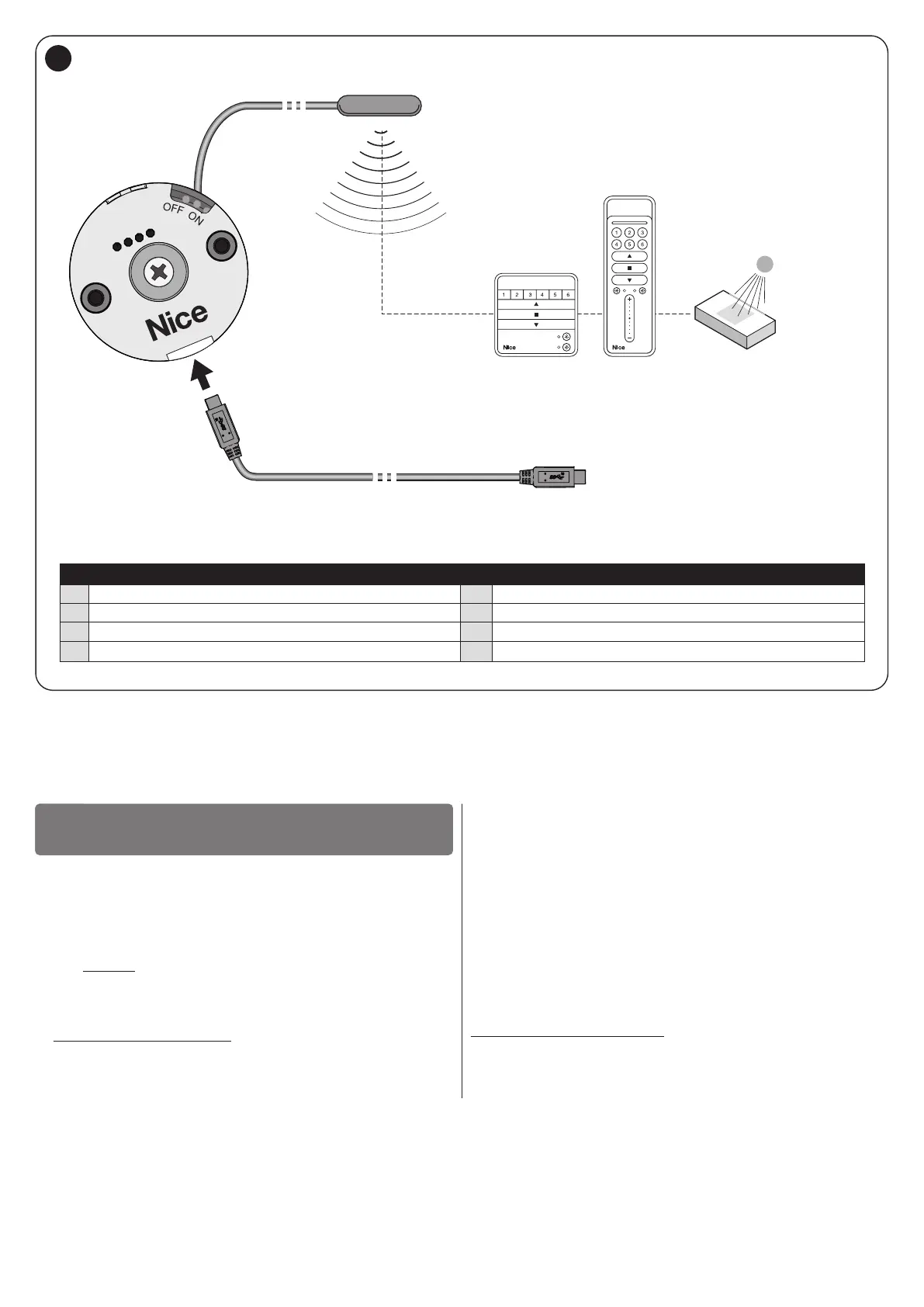

logue, which is also available on www.niceforyou.com. Fig. 2 shows the type of ac-
cessories that are compatible and their connection to the motor (all of these are op-
tions and not included in the package).
Accessories connectable via radio:
– Portable transmitters and climate sensors are available. For their programming /
memorisation, refer to the procedures given in this manual and those stated in the
device manuals.
LIGHT
SENSOR
Standard PD
(Power Delivery)
ERA PERA W
LEGEND
A Aerial cable 1 “ERA W” portable transmitter
B ON/OFF switch 2 “ERA P” portable transmitter
C Electronic motor head 3 Climate sensor (wired)
D USB TYPE C cable for charging the battery (not supplied)
2
A
1
2
3
C
B
D
3 – English
