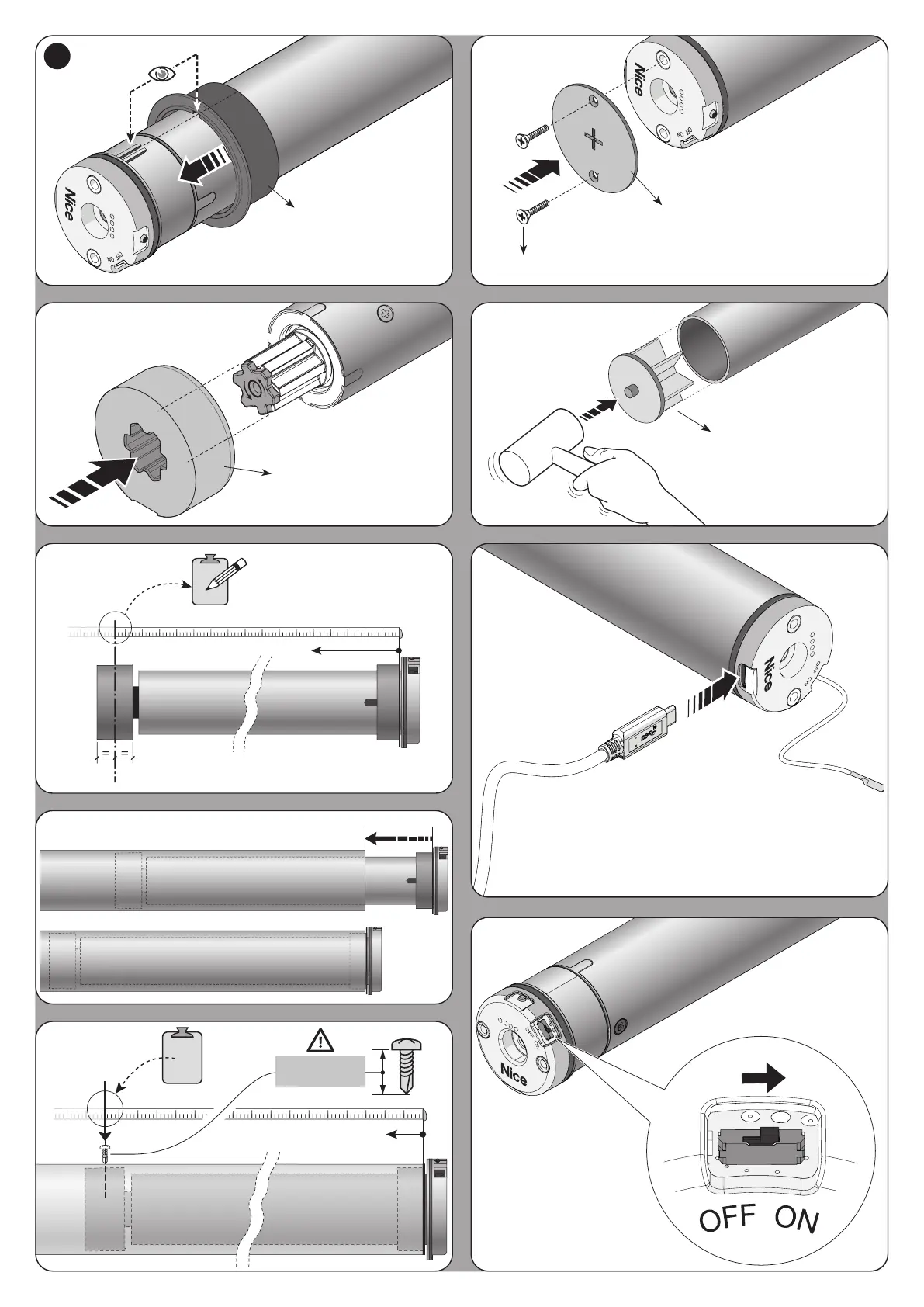

Nice E EDGE SI 228 LI ION - Detailed Installation Visuals; Motor Component Assembly Diagrams; Electrical Connections and Charging

d
c
M
10 mm
e
i
ON/OFF switch
h
USB TYPE C cable for charging
the battery (not supplied)
Aerial cable
a
3
Gear wheel for limit switch
(not included in the pack-
age).
b
Drive wheel (not included in
the package).
f
Motor bracket (not included
in the package).
2 screws: self-tapping without point, for plastic materials.
Diameter: 4 mm; length of threaded part: = min. 5 mm - max 8 mm
g
Supporting bracket of the
winder roller (not included in
the package).
English – 4
