PROGRAMMING AND ADJUSTMENTS
3
3.1 - Programming and adjustment procedures
Group A – done with a
transmitter.
Procedures which can only be com-
pleted with a Nice “ERA P” or “ERA
W” transmitter with the s, n, t, PRG,
ESC keys.
3.2 - Positions in which the awning stops automati-
cally
The electronic system that controls the awning movement at all times can automati-
cally stop the motor when the awning reaches a certain position (or “height”) pro-

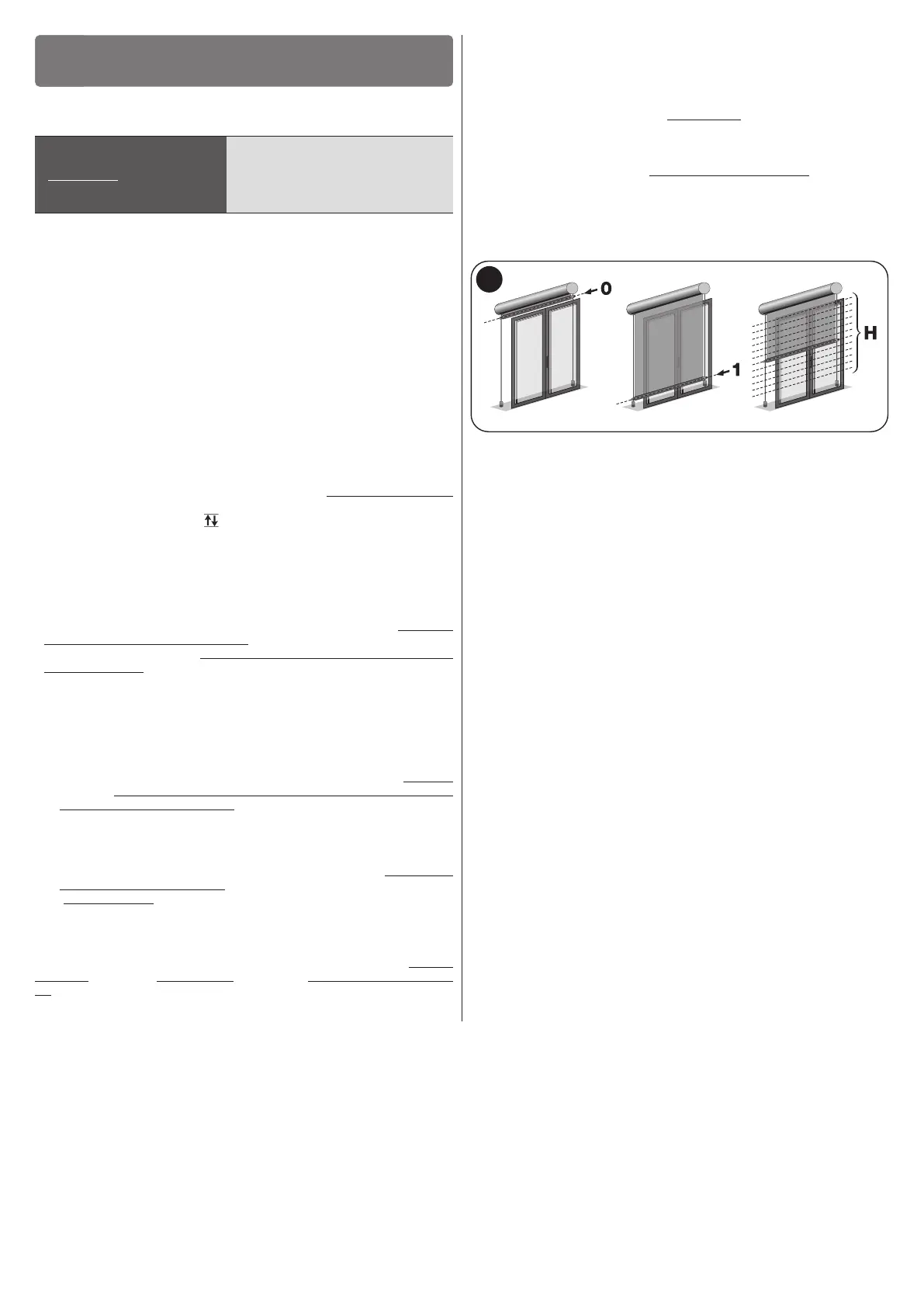

grammed by the installer. The positions are shown in fig. 4 as follows:
– position “0” = UP limit (awning completely retracted);
– position “1” = DOWN limit (awning completely extended);
– position “H” = INTERMEDIATE position (awning partially open)
3.3 - General warnings
• The limit switch must be adjusted after installing the motor and switching it on.
• Comply strictly with the time limits indicated in the procedures: after releasing a key,
you have 60 seconds to press the next key indicated in the procedure; otherwise,
when the time is up, the motor will perform 6 movements to communicate cancel-
lation of the procedure in progress.
• During programming the motor performs a certain number of brief movements
as a “response” to the command sent by the installer. Count these movements
regardless of their direction. The movements are indicated in the procedures with a
number followed by the symbol .
3.4 - Important warnings for memorising the radio
transmitters
• To select transmitter compatible with the motor’s receiver, refer to the “Nice
Screen” catalogue, which is also available on www.niceforyou.com.
• When no transmitter is yet present in the motor’s memory, memorise the FIRST
TRANSMITTER with procedure A.1 only. If one or more transmitters have already
been memorised, to memorise SUPPLEMENTARY TRANSMITTERS use one of
procedures A.5 only.
3.4.1 - Two procedures to memorise the keys of a transmitter
There are two categories of transmitter memorisation procedures:
A - Procedures which memorise the buttons in “Mode I”
(“Standard mode”)
These are procedures A.1 - A.5.1.A - A.5.1.B. These allow you to memorise
all buttons at the same time, so that each button corresponds to a basic mo-
tor command in a standard fashion.
B - Procedures which memorise the buttons in “Mode II”
(“Custom mode”)
These are procedures A.5.2.A - A.5.2.B. These allow you to memorise in-
dividual buttons and map them to any of the commands given in the motor’s
“list of commands” (this list is given in each procedure). The button and the
command are selected by the installer, as required by the installation.
3.4.2 - Maximum number of transmitters that can be memorised
The motor has 30 memory locations. A location can either memorise a single
transmitter (in Mode I) or a single button (in Mode II) or a single wireless climate sen-
sor (up to 5 sensors).
3.5 - Programming multiple motors with a single
channel transmitter
In such cases, to avoid having to switch off all the motors (switch shifted to OFF) not
involved in the programming, we recommend proceeding as follows:
1) - run procedure A.1 to memorise the first transmitter on the motor you wish to pro-
gram;
2) - run procedure A.2 to deactivate all other previously memorised motors, which
you do not wish to program;
3) - program the motor as required, leaving the limit switches to last (*);
4) - at the end, reactivate the previously deactivated motors by pressing ESC.
–––––––––
(*) Note – If you wish to program the “movement duration”, run the procedure in
question (A.11) only after having programmed the limit switches.
4
5 – English
