5.16 - Total or partial deletion of memory

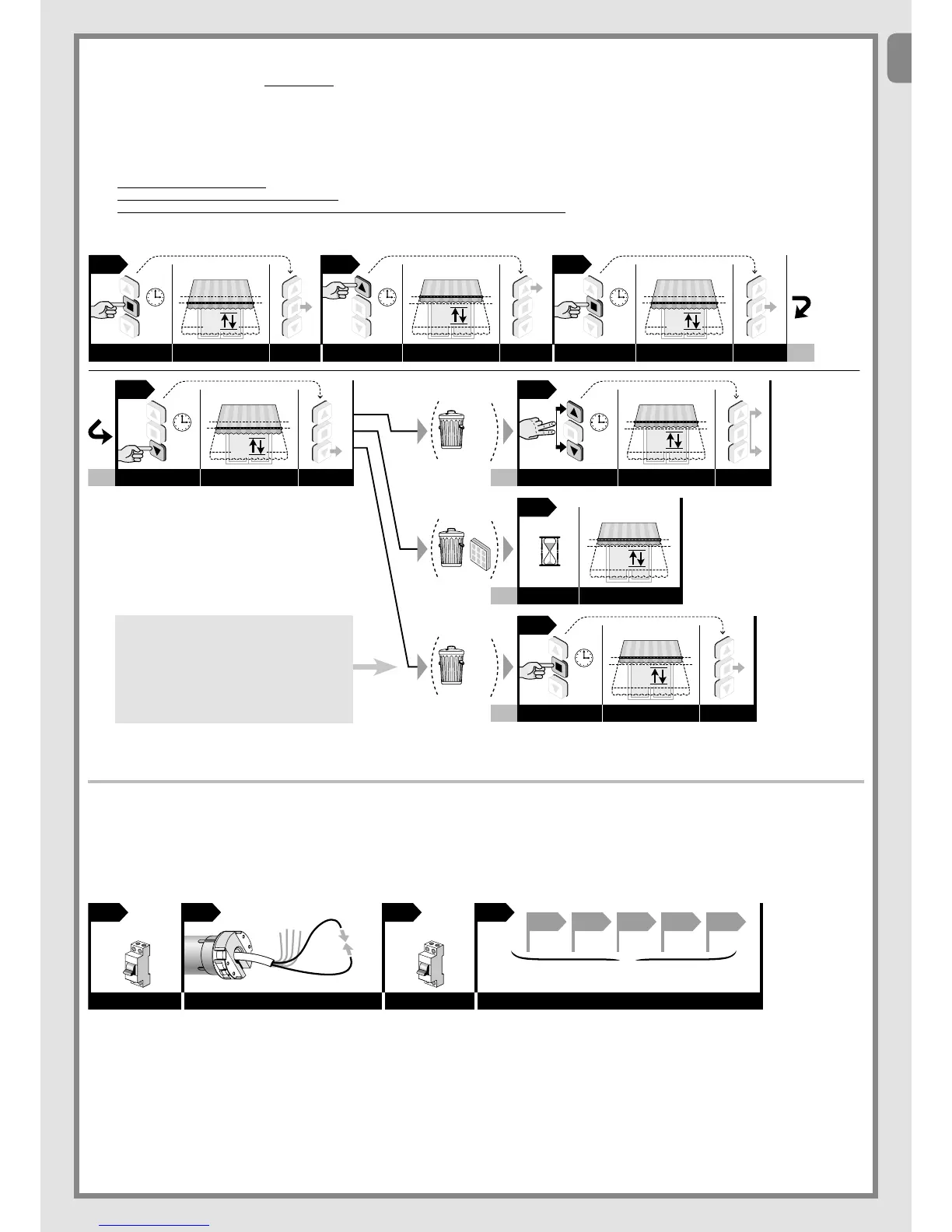

This procedure allows you to choose under point 05 the data that you want to delete.
5.16.1 - Procedure performed with a transmitter memorised in “Mode I”
01. Keep the n key pressed and wait for the motor to perform 2 movements. Upon completion, release the key.
02. Keep the s key pressed and wait for the motor to perform 3 movements. Upon completion, release the key.
03. Keep the n key pressed and wait for the motor to perform 3 movements. Upon completion, release the key.
04. Keep the t key pressed and wait for the motor to perform 3 movements. Upon completion, release the key.
05. • To cancel the entire memory: Keep the s and t keys pressed and wait for the motor to perform five movements. Upon completion, release the keys.
• To delete only the memorised transmitters: do not press any key and wait until the motor performs five movements.
• To delete only the limit switch heights (“0”, “1”, “2”, “S”) and intermediate heights (“H”): WARNING: – This deletion must be performed only when
you want to adjust the limit switch heights again, using a different procedure than the one used previously. Keep the n key pressed and wait for the
motor to perform 5 movements. Upon completion, release the key.
5
sec.
5
sec.
5
sec.
all
data
only
05
05
THE
END
“0”
“1”
“H”
05
THE
END
THE
END
5
sec.
5
sec.
5
sec.
2 3
3
3
5
5
5
Note – When performing the procedure, you can cancel it at any time by keeping the n and t keys pressed simultaneously for 4 seconds. Otherwise, do not press
any key and wait 60 seconds for the motor to perform 6 movements.
5.16.2 - Procedure performed with an unmemorised transmitter
01. Disconnect power supply from motor.
02. Connect the White and White-black wires to each other.
03. Disconnect power supply from motor.
04. Lastly, perform the procedure indicated in paragraph 5.16.1.
white
white-black
OFF ON
Paragraph 5.16.1
Note – When performing the procedure, you can cancel it at any time by keeping the n and t keys pressed simultaneously for 4 seconds. Otherwise, do not press
any key and wait 60 seconds for the motor to perform 6 movements.
WARNING:
This deletion must be performed only when
you want to adjust the limit switch heights
again, using a different procedure than the one
used previously. Whereas if you want to adjust
heights with the same procedure, it is not nec-
essary to delete them from memory.
END
END
END
END
Paragraph 5.16.1
