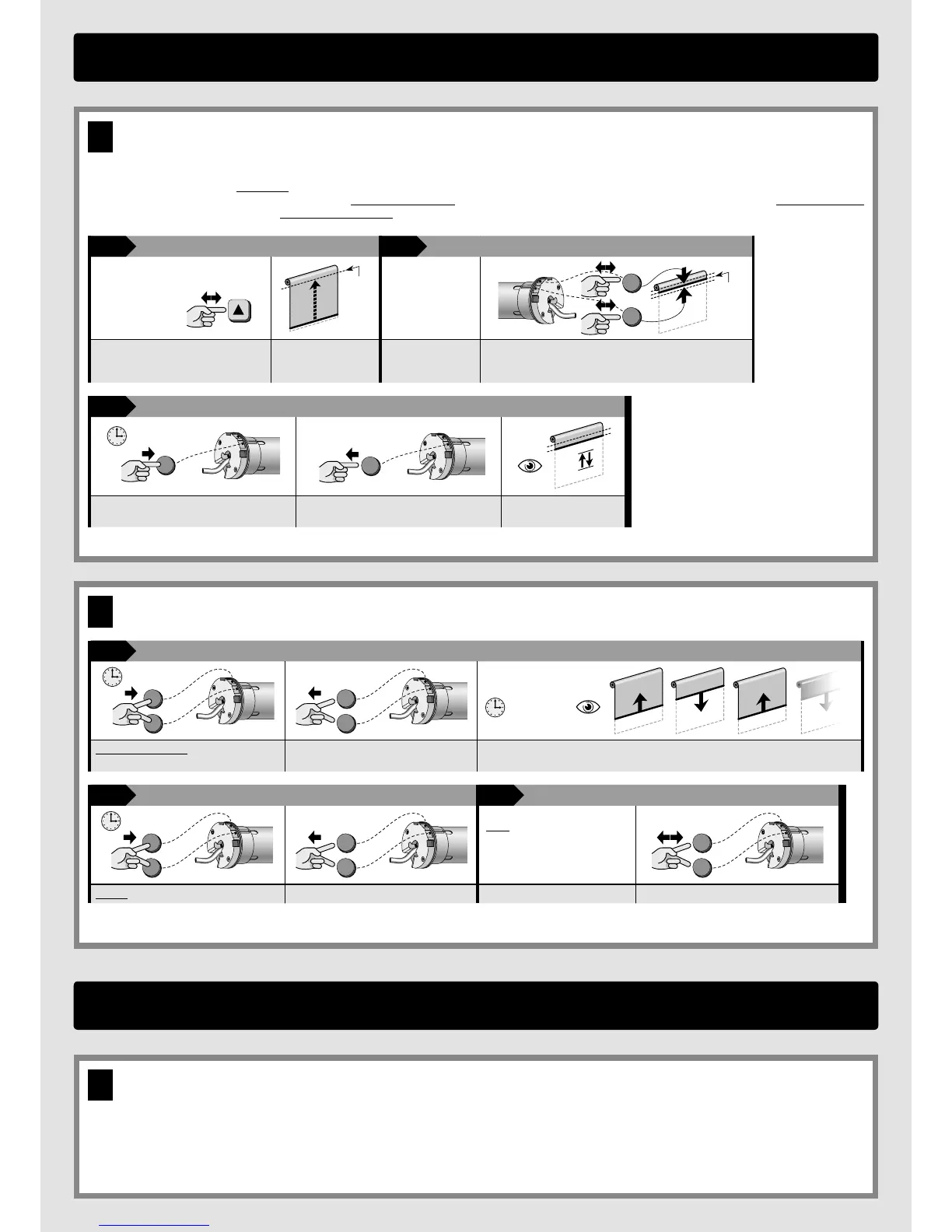

––– GROUP “B” PROCEDURES ––
Procedures run with the motor head buttons
B.1 - Precise adjustment of the UP (“0”) and DOWN (“1”) limit switch positions
NOTES AND WARNINGS
• This adjustment can be done at any time, on condition that the limit switch positions have already been programmed.
• The following procedure describes the setting of the Upper limit switch “0”. To adjust the Lower limit switch “1”: (in step 1) command a DOWN movement
(rather than UP); (in step 2) adjust the height of limit switch “1” (instead of the height of limit switch “0”); (in step 3) as in the figure below.
1 2
3
Command
an UP
movement
(x 1)
“0”
Adjust the po-
sition of limit
switch “0”.
“0”
Press and release the key. Wait for the move-
ment to finish at posi-
tion “0”.
Press the buttons until you reach the desired position.
Note – Each step of the motor corresponds to a rotation
of around 2°.
3
end
= 5 sec
3
Hold down either of the two buttons; release it after 5 seconds; count 3 movements.
B
B.2 - Procedure for adding or deleting a command assignment (mapping)
1
2
= 5 sec
= 5 min.
On the motor head: hold down both
buttons and
release them after 5 seconds; observe the movements for 5 minutes.
2 3
end
= 5 sec
Note: As you are completing
the procedure, press and re-
lease the button 3 times to
delete the T4 BUS address.
x 3
To exit: hold down both buttons and release them after 5 seconds.
B
––– GROUP “C” PROCEDURES ––
only available using a specific programmer (e.g.: TTP)
NOTES AND WARNINGS
• To run the procedures in this group, you must use a compatible programmer (see the “Nice Screen” catalogue, also available on www.niceforyou.com).
• For the programming and adjustment procedures possible with a given programmer, see the programmer’s user manual and interface.
C
