Installation
D
E
F

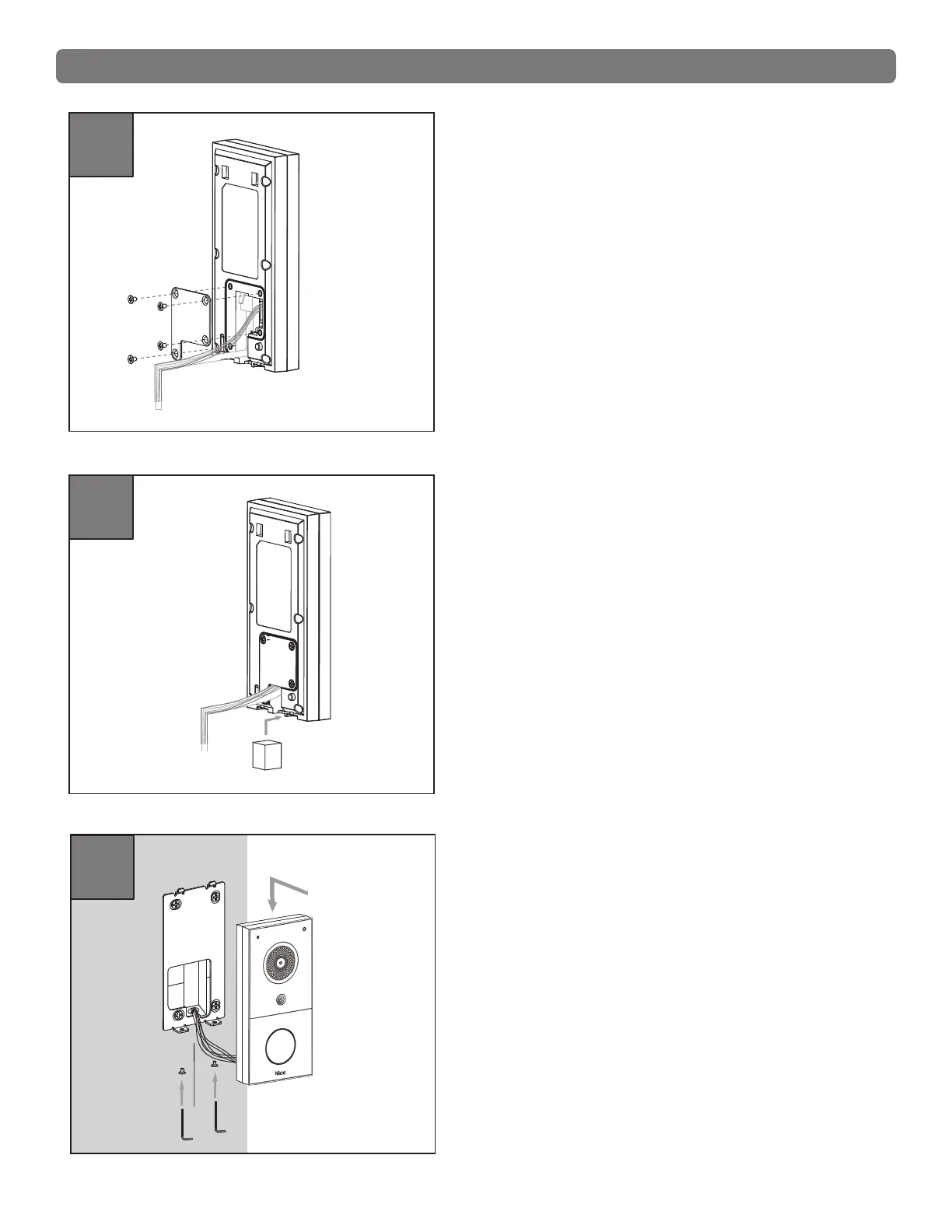

a. Connect the wires to the corresponding
interface (for details, refer to“ Wiring Interface”).
b. Tighten the wiring cover with four M3x4
crosshead screws.
Insert the sealing pad into the wire opening as
indicated in the gure, pushing it upward to ensure
a tight seal of the opening.
a. Hang the slot onto the back upper part of the
main unit into the corresponding hooks of the
wall box, and then gently lower the main unit
into the wall box.
b. Use the Torx wrench to tighten the device with
two M3x6 Torx screws at the bottom.
