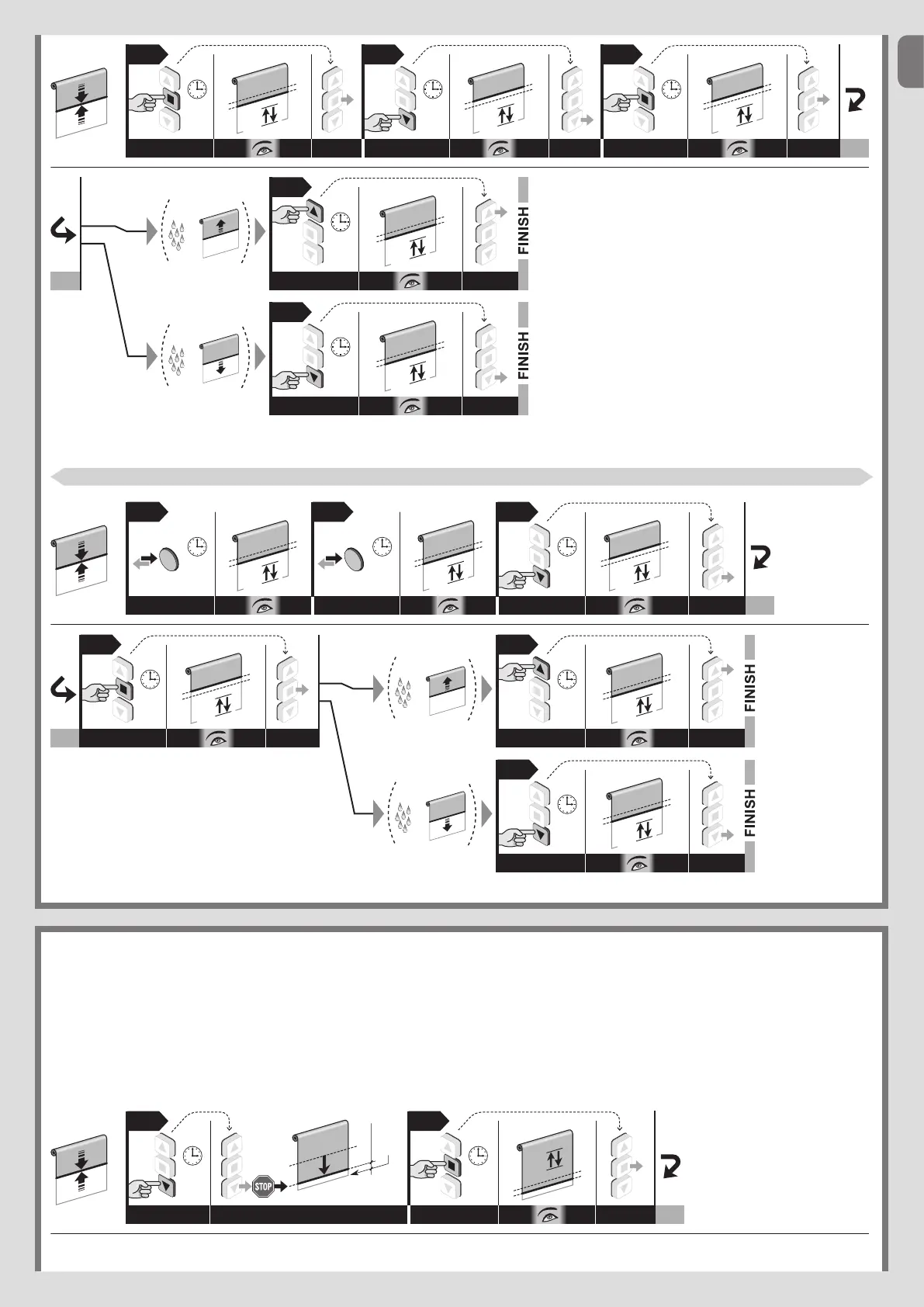

5.15 - Resistive sensitive edge (can only be connected to the photocell couple) (ref. paragraph 6.4)
Before starting the procedure, move the shutter/awning to the mid-point of its stroke.
01. Keep the n key pressed and wait for the motor to perform 2 movements. Now release the button.
02. Keep the n key pressed and wait for the motor to perform 4 movements. Upon completion, release the key.
03. Keep the n and s keys pressed simultaneously and wait for the motor to perform 2 movements. Upon completion, release the key.
04. Then choose the desired function you wish to assign to the motor and keep the key combined with the chosen function pressed; wait for the motor to perform 3
movements and, upon completion, release the key.
• after the intervention of the edge, the motor performs a brief reverse movement and stops (= press the s) key.
• after the intervention of the edge, the motor stops without performing the brief reverse movement (= press the n) key.
• after the intervention of the edge, the motor stops and then starts again in the upward direction (= press the t) key.
5
sec.
01
03
02
5
sec.
5
sec.
04
05
05
5
sec.
=
...
“1”
5 cm
2
04
04
5
sec.
5
sec.
5
sec.
5
sec.
2
3
3
2
5
sec.
3
=
=
N.B. – When performing the procedure, you can cancel the programming at any time by keeping the n and t keys pressed simultaneously for 4 seconds Alternatively,
do not press any keys and wait 60 seconds for the motor to perform 6 movements.
––– Procedure 5.14 ––– executable only with a series transmitter Era P and Era W
05
05
5
sec.
5
sec.
3
3
=
=
1
sec.
PRG
1
sec.
PRG
2
2
5
sec.
3
5
sec.
04
2
