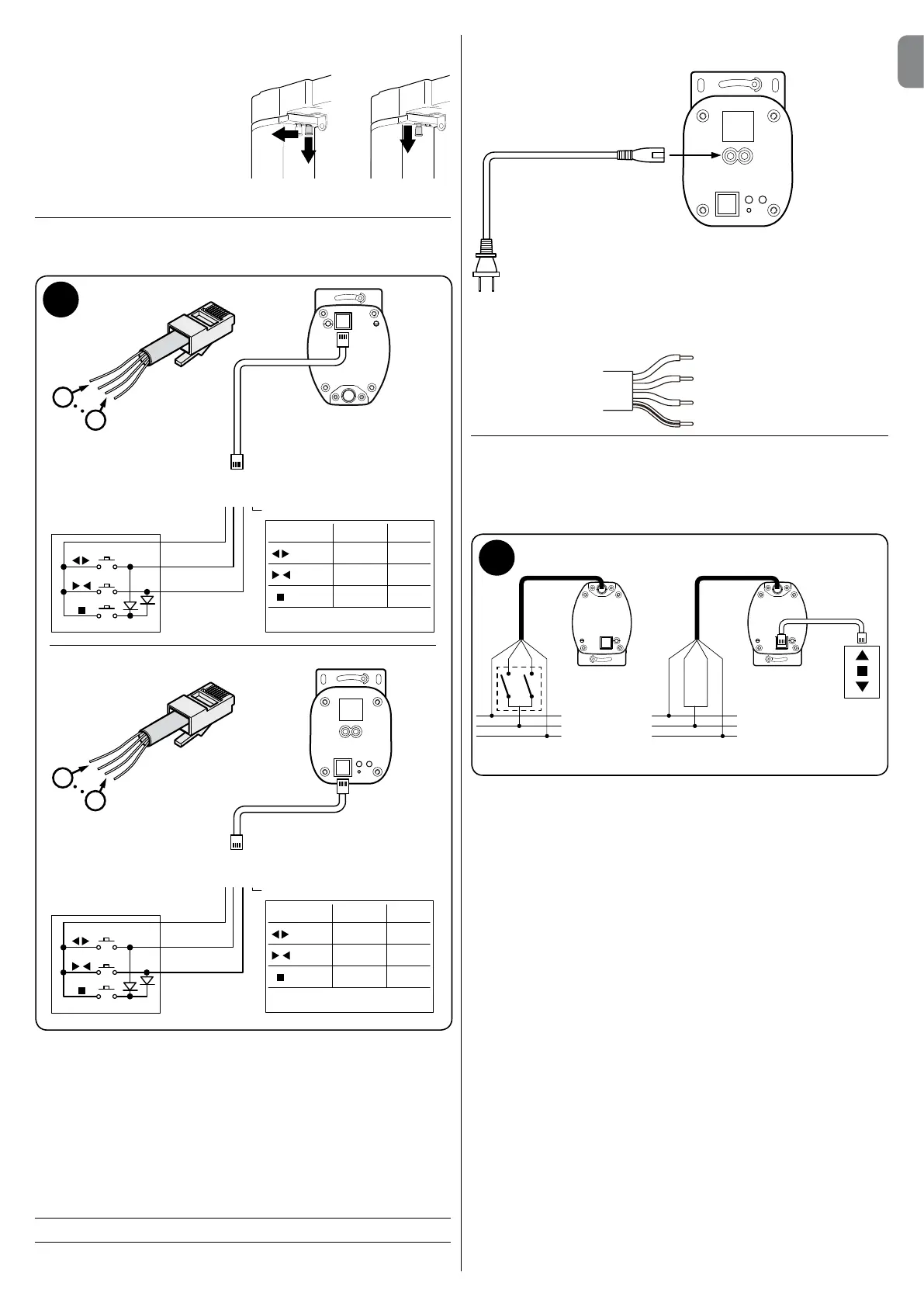

Motor Uninstallation
1. Pull down the handle and
push it to left as showed in
the picture.
2. Pull the motor down.
Signal Cable Connection
5
K1
Action
(Open)
(Close)
(Stop)
Action time must less tean 1S
K1 K2
on o
o on
on on
(Empty)
4 3 2 1
4 3 2 1
K2
K3 = K1 + K2
1
4
K1
Action
(Open)
(Close)
(Stop)
Action time must less tean 1S
K1 K2
on o
o on
on on
(Empty)
4 3 2 1
4 3 2 1
K2
K3 = K1 + K2
1
4
Action
Edge - Comfort
If you want to use manual control switch for the motor con-
trol, please select the switch according to the function diagram
above and make the right cable connection. Two phase cable
should be connected together for Era Track Action.
Hint
1. Manual control switch is optional. You can use remote con-
troller to control the motor without manual control switch.
2. Signal cable should use 4P4C cable and 4P4C connector.
Era Track Comfort & Edge Power Cable Connection
Era Track Action Power Cable Connection
100 240VAC 50 60Hz
-
, /
Blue: Neutral
Brown: Phase ”1”
Black: Phase ”2”
Green & Yellow: Earth
The power connection for Era Track Action is showed here. For
the dry contacts control mode for this model, you need to con-
nect Phase 1 and Phase 2 together before connecting to the
phase of power supply.
6
Neutral
Phase
Earth
Neutral
Phase
Earth
Blue Brown Black Green/yellow
Manual switch controlAC switching direct control mode
Black
Green/yellow Blue
Brown
