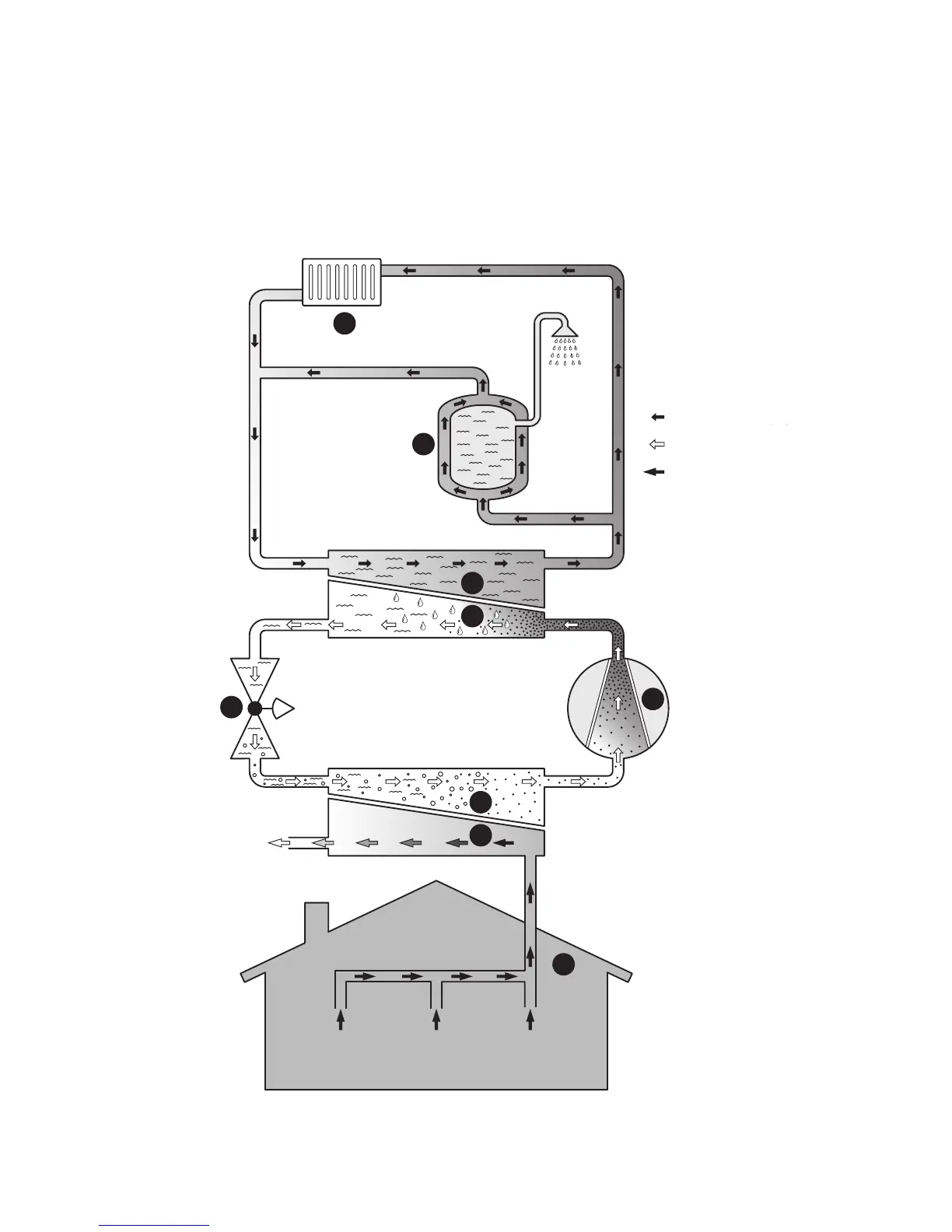

The heat pump – the heart of
the house
Värmebärare
Köldmedium
Rumsluft
Förångare
Kondensor
80 °C
22 °C0 °C
5 °C 0 °C
55 °C45 °C
Expansionsventil Kompressor
A
D
F
H
I
B
C
E
G
+HDWLQJ PHGLXP
%ULQH
5HIULJHUDQW
(YDSRUDWRU
&RQGHQVHU
([SDQVLRQ YDOYH
&RPSUHVVRU
+HDW VRXUFH



The temperatures are only examples and may vary between different installations and time
of year.
NIBE™ F470Chapter 2 | The heat pump – the heart of the house8
