16 – English
01. Open the protection cover.
1
2

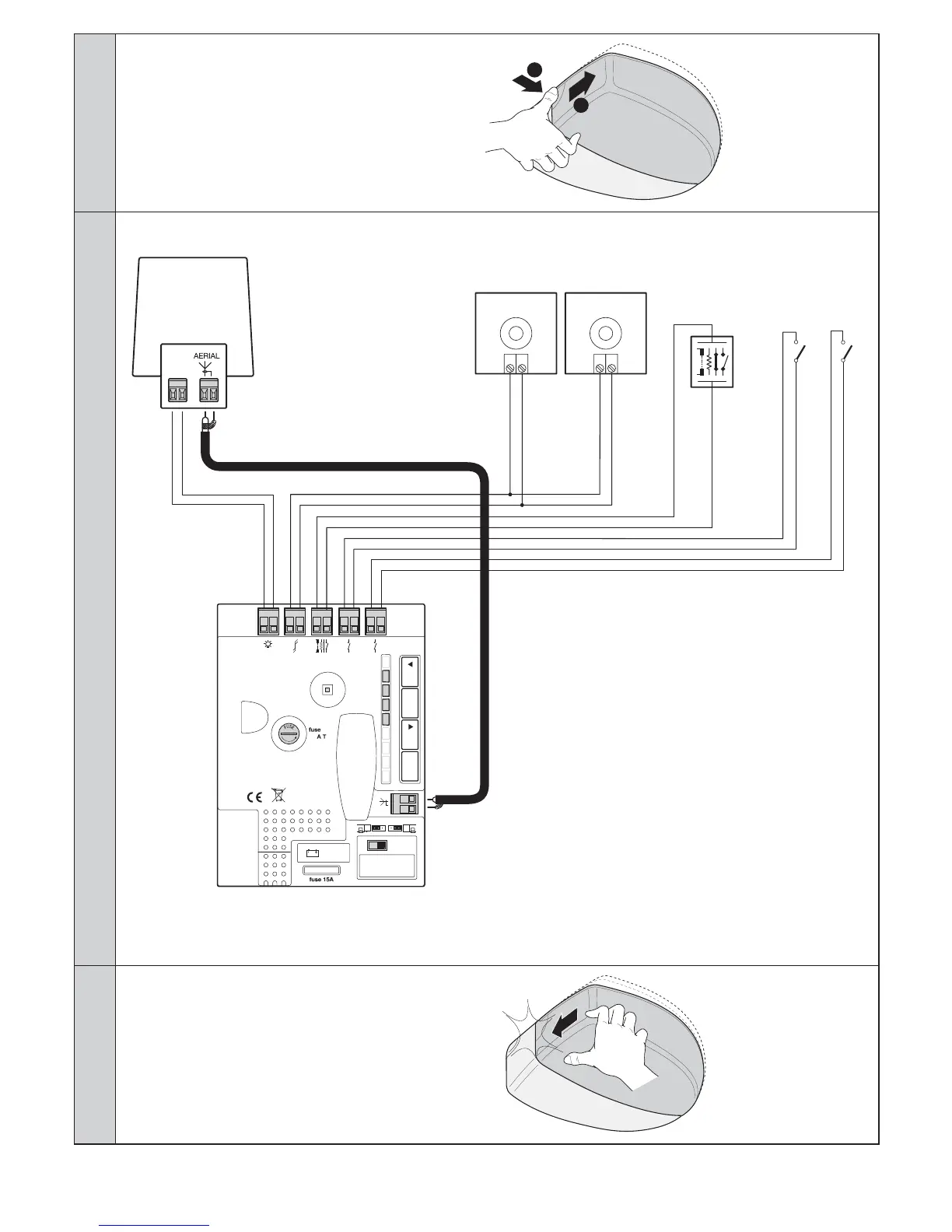

02. 1 - connect the power cables of the motor and accessories (depending on the control unit model)
2 - connect the power cable
NONO
FLASH
2
Flash
Flash
Stop
Bluebus
Bluebus
SbS
SbS
Open
Open
L1
L2
L3
L4
Aerial
TX
1 2
RX
1 2
2
OpenStop/SetClose
NC
8k2
OSE
NO
Stop
• Install a disconnection switch (not included) on the power supply with a disconnection gap
which ensures complete disconnection in the conditions dictated by overvoltage category III
• Before intervening on the system (maintenance, cleaning), always disconnect the product from the mains power supply and any
backup batteries
03.
After the programming, close the lid.
To Next Page
