NICEDAY 701ML - Step 9: Resistance Bands Installation; Step 10: Monitor Battery Installation

16 pages

To Next Page

To Previous Page

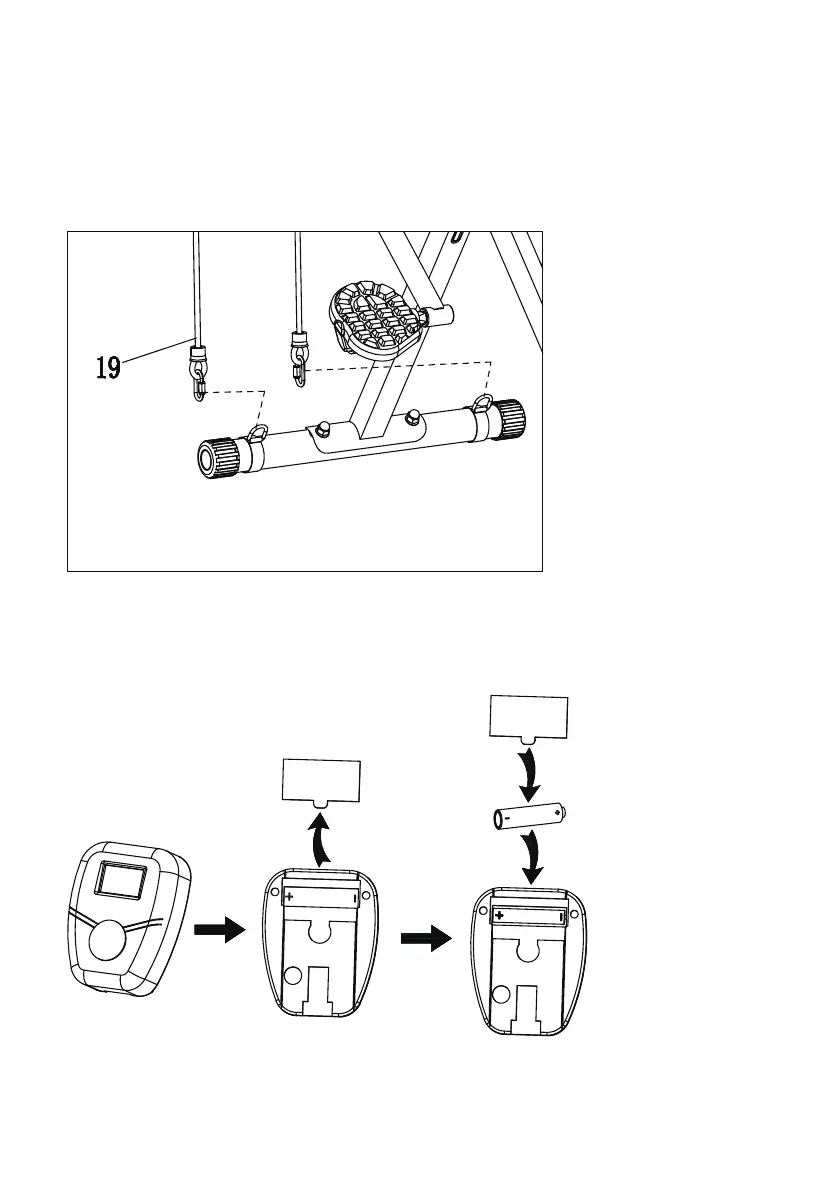

STEP 9

Install the Monitor battery as shown in the figure.

STEP 10

Install the Resistance Bands (NO.19) as shown in the figure, unscrew the Resistance Bands (NO.19) connecting

ring button, connect it with the D-type buckle of the webbing on the Front Stabilizer(NO.15), and tighten the

button, make sure it is fixed before use.
