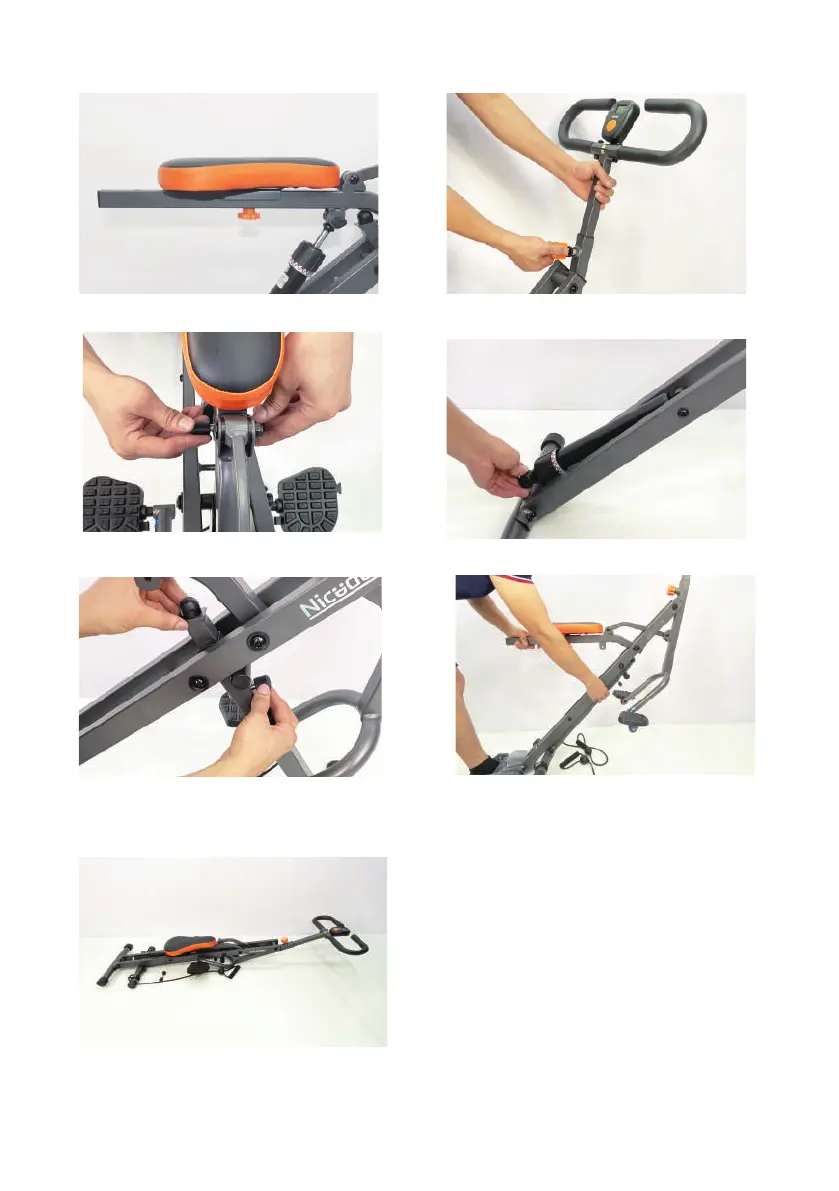

6: Folding instruction
Adjust the seat cushion to the first position
Remove the pull pin NO.18, pin ball NO.17
Adjust handlebar to lowest height, and lock it
Set hydraulic cylinder to 1 and put it down
Lift the Seat Connecting Tube, remove the Pin from
Front Connecting Tube, and lower the Seat Tube to
the lowest position. Re-insert the pin to secure.
Fold the mainframe and place it parallel to the ground.
13
The state after folding and storage is as shown in the figure.
