INSTALLATION
All connections to the DT1 from an external alarm source are made via the row of
screw terminal connectors found on the circuit board. To gain access to the circuit
board, the outer cover will have to be removed. To do this, unscrew the two outer
screws on the under side of the DT1 (do not unscrew the centre screw) the cover will
now lift off.
To mount the DT1 the TEB dialler mounting bracket is available.

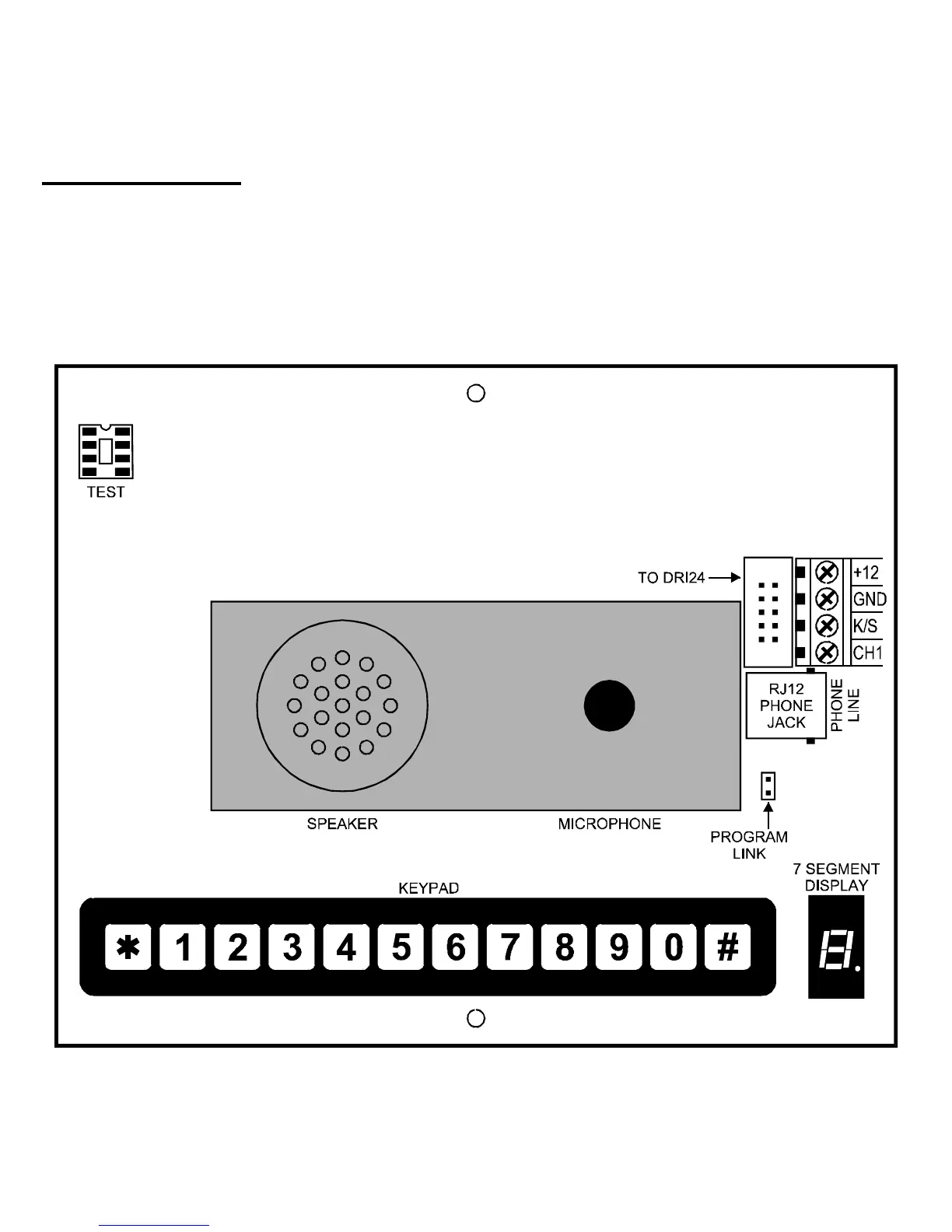

Figure 1: The DT1 with its outer cover removed.
