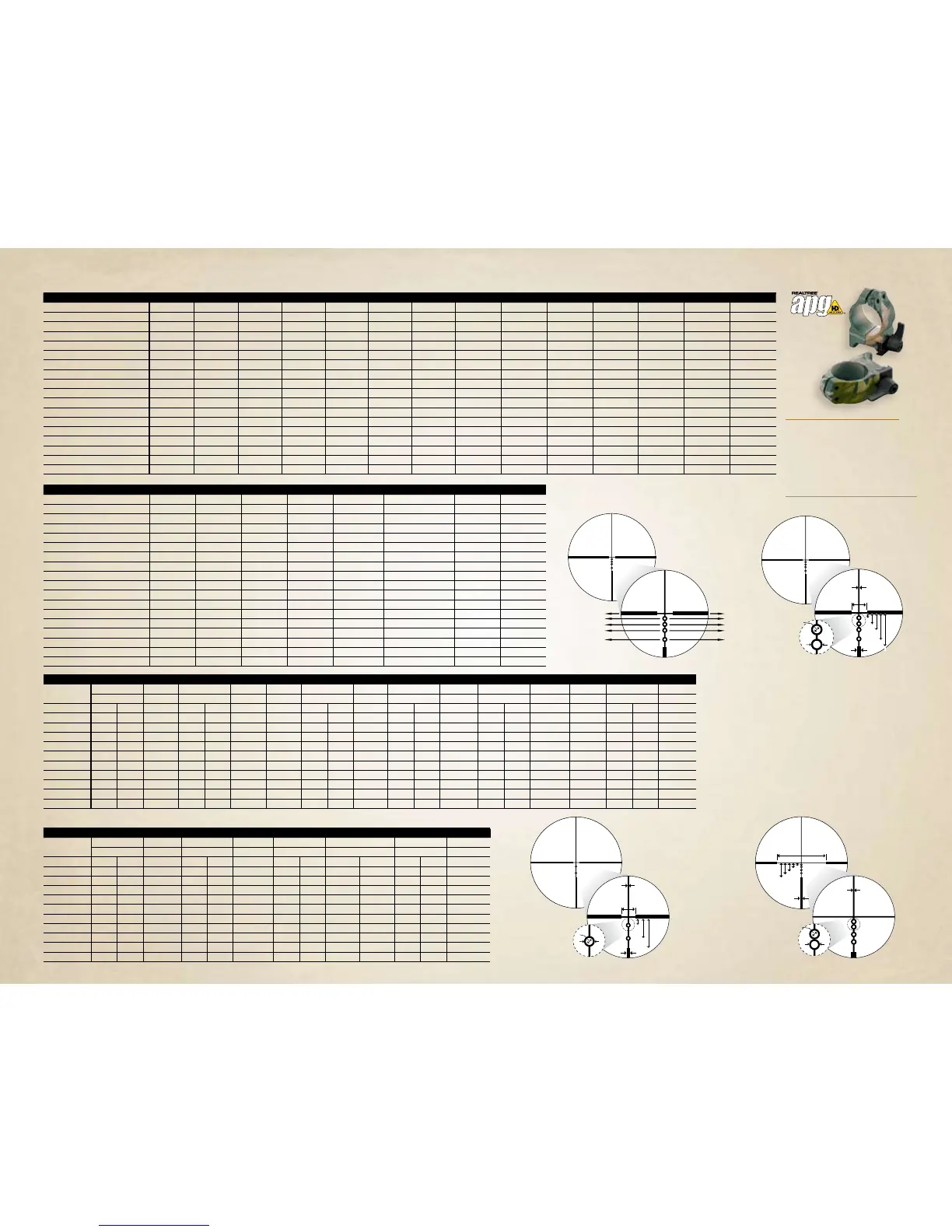

Nikon Action 8x40 - Riflescope Specifications; New Monarch Scopes Specifications; New Monarch Reticle Subtentions

C
D
A
J
B
E
F
G
H
I
NEW MONARCH
®
SCOPES
Model 2-8x32 2-8x32 2.5-10x42 2.5-10x42 2.5-10x42 2.5-10x50 2.5-10x50 3-12x42SF 3-12x42SF 4-16x42SF 4-16x42SF 4-16x42SF 4-16x50SF 4-16x50SF
Reticle Nikoplex BDC Nikoplex BDC Mildot Nikoplex BDC Nikoplex BDC Nikoplex BDC Mildot Nikoplex BDC
Lustre N/A N/A 8406 N/A N/A N/A N/A 8418 N/A N/A N/A N/A N/A N/A
Matte 8437 8438 8407 8411 8408 8416 8417 8419 8420 8421 8422 8423 8439 8440
Silver N/A N/A N/A 8409 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Actual Magnification 2x-8x 2x-8x 2.5x-10x 2.5x-10x 2.5x-10x 2.5x-10x 2.5x-10x 3x-12x 3x-12x 4x-16x 4x-16x 4x-16x 4x-16x 4x-16x
Effective Objective Diameter 32mm 32mm 42mm 42mm 42mm 50mm 50mm 42mm 42mm 42mm 42mm 42mm 50mm 50mm
Exit Pupil (mm) 16.0-4.0 16.0-4.0 16.8-4.2 16.8-4.2 16.8-4.2 20.0-5.0 20.0-5.0 14.0-3.5 14.0-3.5 10.5-2.6 10.5-2.6 10.5-2.6 12.5-3.1 12.5-3.1
Eye Relief (in.) 4.0-3.8 4.0-3.8 4.0 - 3.8 4.0 - 3.8 4.0 - 3.8 4.0 - 3.9 4.0 - 3.9 4.0 -3.7 4.0 -3.7 4.0 -3.7 4.0 -3.7 4.0 -3.7 4.0-3.7 4.0-3.7
FOV at 100 yds (ft.) 46.2-11.5 46.2-11.5 40.3-10.1 40.3-10.1 40.3-10.1 40.3-10.1 40.3-10.1 33.6-8.4 33.6-8.4 25.2-6.3 25.2-6.3 25.2-6.3 25.2-6.3 25.2-6.3
Tube Diameter 1 in. (25.4mm) 1 in. (25.4mm) 1 in (25.4mm) 1 in (25.4mm) 1 in (25.4mm) 1 in (25.4mm) 1 in (25.4mm) 1 in (25.4mm) 1 in (25.4mm) 1 in (25.4mm) 1 in (25.4mm) 1 in (25.4mm) 1 in. (25.4mm) 1 in. (25.4mm)
Objective O.D. (mm/in) 39.3/1.55 39.3/1.55 49.3/1.94 49.3/1.94 49.3/1.94 57.3/2.26 57.3/2.26 49.3/1.94 49.3/1.94 49.3/1.94 49.3/1.94 49.3/1.94 57.3/2.26 57.3/2.26
Eyepiece O.D. (mm/in) 41/1.61 41/1.61 44.0/1.73 44.0/1.73 44.0/1.73 44.0/1.73 44.0/1.73 44.0/1.73 44.0/1.73 44.0/1.73 44.0/1.73 44.0/1.73 44/1.73 44/1.73
Length (in) 11.5 11.5 12.6 12.6 12.6 13.7 13.7 13.1 13.1 13.5 13.5 13.5 14.7 14.7
Weight (oz) 13.4 13.4 16.6 16.6 16.6 18.0 18.0 18.7 18.7 19.0 19.0 19.0 19.4 19.4
Adjustment Graduation (1 click) 1/4 MOA 1/4 MOA 1/4 MOA 1/4 MOA 1/4 MOA 1/4 MOA 1/4 MOA 1/4 MOA 1/4 MOA 1/4 MOA 1/4 MOA 1/4 MOA 1/4 MOA 1/4 MOA
Max Internal Adjustment 80 MOA 80 MOA 70 MOA 70 MOA 70 MOA 70 MOA 70 MOA 60 MOA 60 MOA 40 MOA 40 MOA 40 MOA 40 MOA 40 MOA
Parallax setting (yds) 100 100 100 100 100 100 100 50 - ∞ 50 - ∞ 50 - ∞ 50 - ∞ 50 - ∞ 50 - ∞ 50 - ∞
NEW MONARCH
®
RETICLE SUBTENSIONS (INCHES AT 100 YARDS)
2-8x32 2-8x32 2.5-10x42 2.5-10x42 2.5-10x42 2.5-10x50 2.5-10x50 3-12x42SF 3-12x42SF 4-16x42SF 4-16x42SF 4-16x42SF 4-16x50SF 4-16x50SF
Nikoplex BDC Nikoplex BDC Mildot Nikoplex BDC Nikoplex BDC Nikoplex BDC Mildot Nikoplex BDC
Magnification 2x 8x 8x 2.5x 10x 10x 10 (MIL) 2.5x 10x 10x 3x 12x 12x 4x 16x 16x 12 (MIL) 4x 16x 16x
A
3.75 0.94 0.25 3 0.75 0.25 2 3 0.75 0.25 2.5 0.63 0.25 1.88 0.47 0.25 2 1.88 0.47 0.25
B
0.98 0.24 10 0.78 0.2 6.9 0.25 0.78 0.2 6.9 0.65 0.16 5.75 0.49 0.12 4.31 0.25 0.49 0.12 4
C
34.5 8.63 1.50 27.6 6.9 1.5 36 27.6 6.9 1.5 23 5.75 1.5 17.25 4.31 1.5 36 17.3 4.33 1.50
D
2 2 0.72 2 2 2 0.72 2
E
2 2 3.6 2 2 2 3.6 2
F
4.5 4.5 4.5 4.5 4.5 4.5
G
7 7 7 7 7 7
H
11 11 11 11 11 11
I
15 15 15 15 15 15
J
1 1 1 1 1 1
Subtensions are to the center of each circle
Each circle represents approx.
2MOA @ 100 yards
NEW MONARCH
®
SCOPES
Model 5-20x44SF 5-20x44SF 6-24x50SF 6-24x50SF 6-24x50SF 6-24x50SF 8-32x50ED SF 8-32x50ED SF
Reticle Nikoplex BDC Nikoplex BDC Fine Crosshair Fine Crosshair w/Dot Nikoplex BDC
Lustre N/A N/A N/A N/A N/A N/A N/A N/A
Matte 8424 8425 8426 8429 8427 8428 8479 8480
Silver N/A N/A N/A N/A N/A N/A N/A N/A
Actual Magnification 5x-20x 5x-20x 6x-24x 6x-24x 6x-24x 6x-24x 8x-32x 8x-32x
Effective Objective Diameter 44mm 44mm 50mm 50mm 50mm 50mm 50mm 50mm
Exit Pupil (mm) 8.8-2.2 8.8-2.2 8.3-2.1 8.3-2.1 8.3-2.1 8.3-2.1 6.3-1.6 6.3-1.6
Eye Relief (in.) 4.0- 3.6 4.0- 3.6 4.0- 3.6 4.0- 3.6 4.0- 3.6 4.0- 3.6 4.0-3.5 4.0-3.5
FOV at 100 yds (ft.) 20.1-5.0 20.1-5.0 16.8-4.2 16.8-4.2 16.8-4.2 16.8-4.2 12.6-3.2 12.6-3.2
Tube Diameter 1 in (25.4mm) 1 in (25.4mm) 1 in (25.4mm) 1 in (25.4mm) 1 in (25.4mm) 1 in (25.4mm) 1 in. (25.4mm) 1 in. (25.4mm)
Objective O.D. (mm/in) 52.0/2.05 52.0/2.05 57.3/2.26 57.3/2.26 57.3/2.26 57.3/2.26 57.3/2.26 57.3/2.26
Eyepiece O.D. (mm/in) 44.0/1.73 44.0/1.73 44.0/1.73 44.0/1.73 44.0/1.73 44.0/1.73 44/1.73 44/1.73
Length (in) 14.1 14.1 15.5 15.5 15.5 15.5 16.4 16.4
Weight (oz) 19.0 19.0 20.5 20.5 20.5 20.5 20.8 20.8
Adjustment Graduation (1 click) 1/8 MOA 1/8 MOA 1/8 MOA 1/8 MOA 1/8 MOA 1/8 MOA 1/8 MOA 1/8 MOA
Max Internal Adjustment 34 MOA 34 MOA 30 MOA 30 MOA 30 MOA 30 MOA 20 MOA 20 MOA
Parallax setting (yds) 50 - ∞ 50 - ∞ 50 - ∞ 50 - ∞ 50 - ∞ 50 - ∞ 50 - ∞ 50 - ∞
NEW MONARCH
®
RETICLE SUBTENSIONS (INCHES AT 100 YARDS)
5-20x44SF 5-20x44SF 6-24x50SF 6-24x50SF 6-24x50SF 6-24x50SF 8-32x50SF ED 8-32x50SF ED
Nikoplex BDC Nikoplex BDC Fine Crosshair FineCrosshair w/Dot Nikoplex BDC
Magnification 5x 20x 20x 6x 24x 24x 6x 24x 6x 24x 8x 32x 32x
A
1.5 0.38 0.25 1.25 0.31 0.25 0.14 0.03 0.14 0.03 0.94 0.23 0.25
B
0.39 0.1 3.45 0.33 0.08 2.88 1.25 0.31 0.24 0.06 3
C
13.8 3.45 1.5 11.5 2.88 1.5 8.63 2.16 0.5
D
2 2 1
E
2 2 2
F
4.5 4.5 4.5
G
7 7 7
H
11 11 11
I
15 15 15
J
1 1 1
B
E
F
G
H
I
J
C
D
C
A
BDC 250 RETICLE
C
D
A
H
B
E
F
G
BDC 200 RETICLE
BDC RETICLE
Riescope Specications
200 yds
300 yds
400 yds
500 yds
600 yds
100 yds
200 yds
300 yds
400 yds
500 yds
Standard
Magnum
Camo Scope Mount Rings
Manufactured for Nikon by Warne
®
,
these sturdy, all-steel, REALTREE
camo pattern scope rings fit any
Warne or Weaver style mount base.
Part #8182 (med. scope ring);
#8183 (med. QR scope ring)
