VBA10501-R.3657.A
- Ｄ2 ･ -

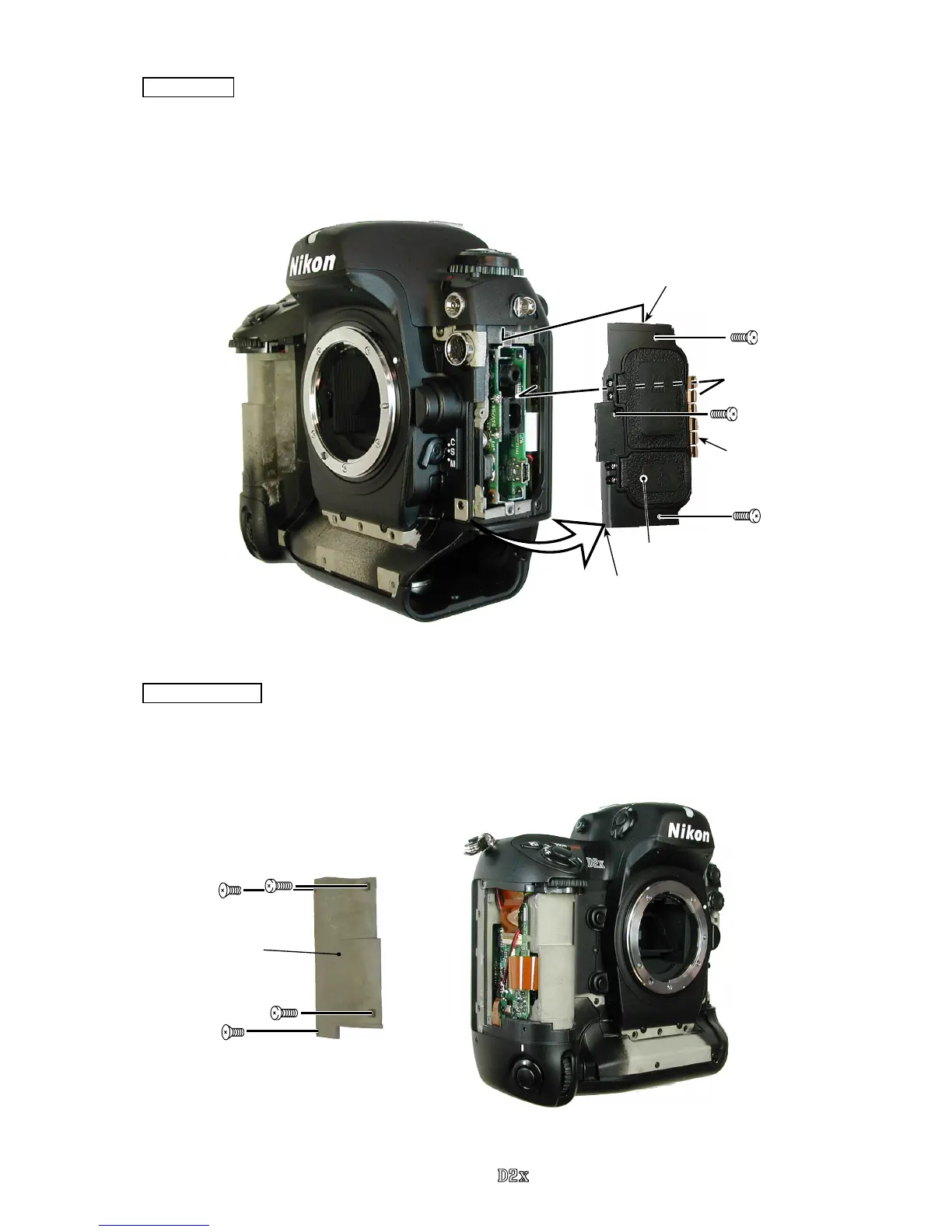

I/F Block
Grip Cover
#1534×2
#1510×2
Grip cover
①
Take out 3 screws (#1589).
②
Slacken A-part of I/F block.
③
Displace the I/F block downward a little, then unhook B-part.
④
Remove the earth lug plate from the clearance between the back door and I/F PCB, being careful not to bend
the plate.
・
Take out 2 screws (#1534) and 2 screws (#1510) to detach the grip cover.
I/F Block
#1589×3
A-part
B-part
①
②
③
④
Lug plate
To Next Page
