Nikon D2X Repair Manual

VBA10501-R.3657.A
- Ｄ4 ･ -

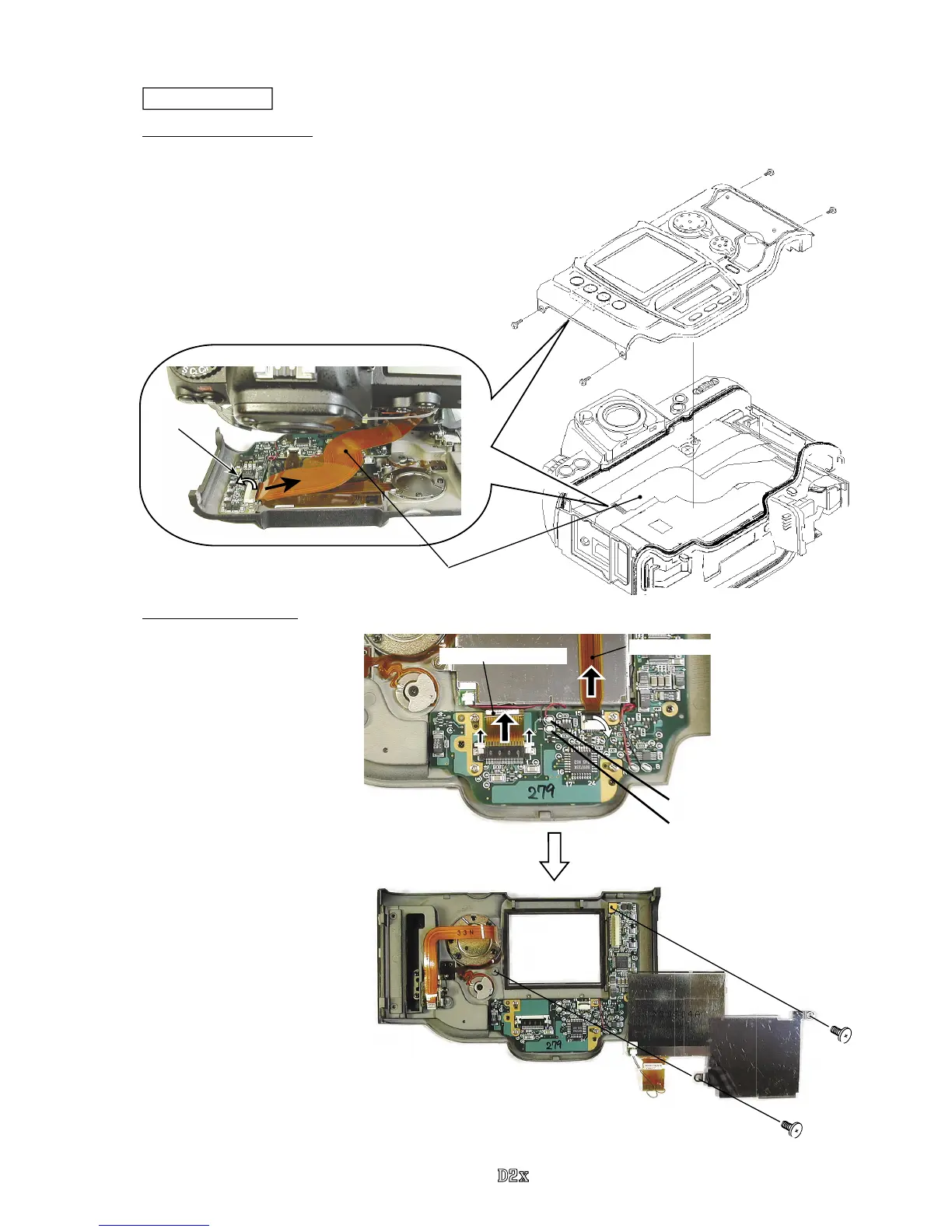

Back door unit
1. Remove Back door unit
2. Remove TFT Monitor
・
Take out 4 screws (#1514) and detach the
back door unit slowly.
・
Remove the TFT (Memory compression PCB
connection-FPC: #5041) from the connector.
(ref. Fig.1
）
Fig.1
#5041
Connector
#1514×4
Back door unit
・
Remove the red and black
wires of the TFT back light
harness.
・
Remove the TFT monitor
FPC and AF area FPC from
the connector.
・
Take out 2 screws (#436)
and remove the TFT
retaining (#432) and TFT
monitor (#5043).
#436×2
#432
#5043
Red: TFT back light
Black: TFT back light
TFT monitor FPC
AF area FPC

Nikon D2X Specifications

General

Megapixel	12.84 MP
Sensor type	CMOS
Maximum image resolution	4288 x 2848 pixels
Metering	3D Color Matrix
Interface	USB 2.0, Wireless Transmitter WT-1/1A (IEEE 802.11b) & WT-2/2A (IEEE 802.11b/g), CF card Type II+
Photo mode	Continuous High [CH] Full image 5 fps / Continuous High [CH] High speed cropped image 8 fps / Continuous Low [CL] Full image - 1 ~ 4 fps / Continuous Low [CL] High speed cropped image - 1 ~ 7 fps / Self-Timer / Buffer size / Interval timer
Minimum RAM	64 MB
Power source	EH-6 / EN-EL4
Built-in flash	Yes
Camera shutter speed	30 ~ 1/8000 s
Minimum storage drive space	60 MB
Minimum system requirements	Display: 800 x 600 CD-ROM
Compatible operating systems	Mac(R)OS X (10.1.5) Windows(R) XP Home Edition/Professional, Windows(R) 2000 Professional, Windows(R) ME, Windows(R) 98SE
Viewfinder type	Optical
Compatible memory cards	cf, microdrive
Display diagonal	2.5 \
Display resolution (numeric)	235.000 pixels
I/O ports	USB Wireless Transmitter WT-1/1A
Bundled software	Nikon Capture 4
Self-timer delay	2, 10 s
Product color	Black
Battery type	EN-EL4
Power requirements	11.1V
Flash modes	Red-eye reduction
Focus adjustment	Auto

Weight and Dimensions

Depth	85.5 mm
Width	157.5 mm
Height	149.5 mm
Weight	1070 g
