3. Setup
Nikon LS-2000 35 mm Film Scanner User’s Guide

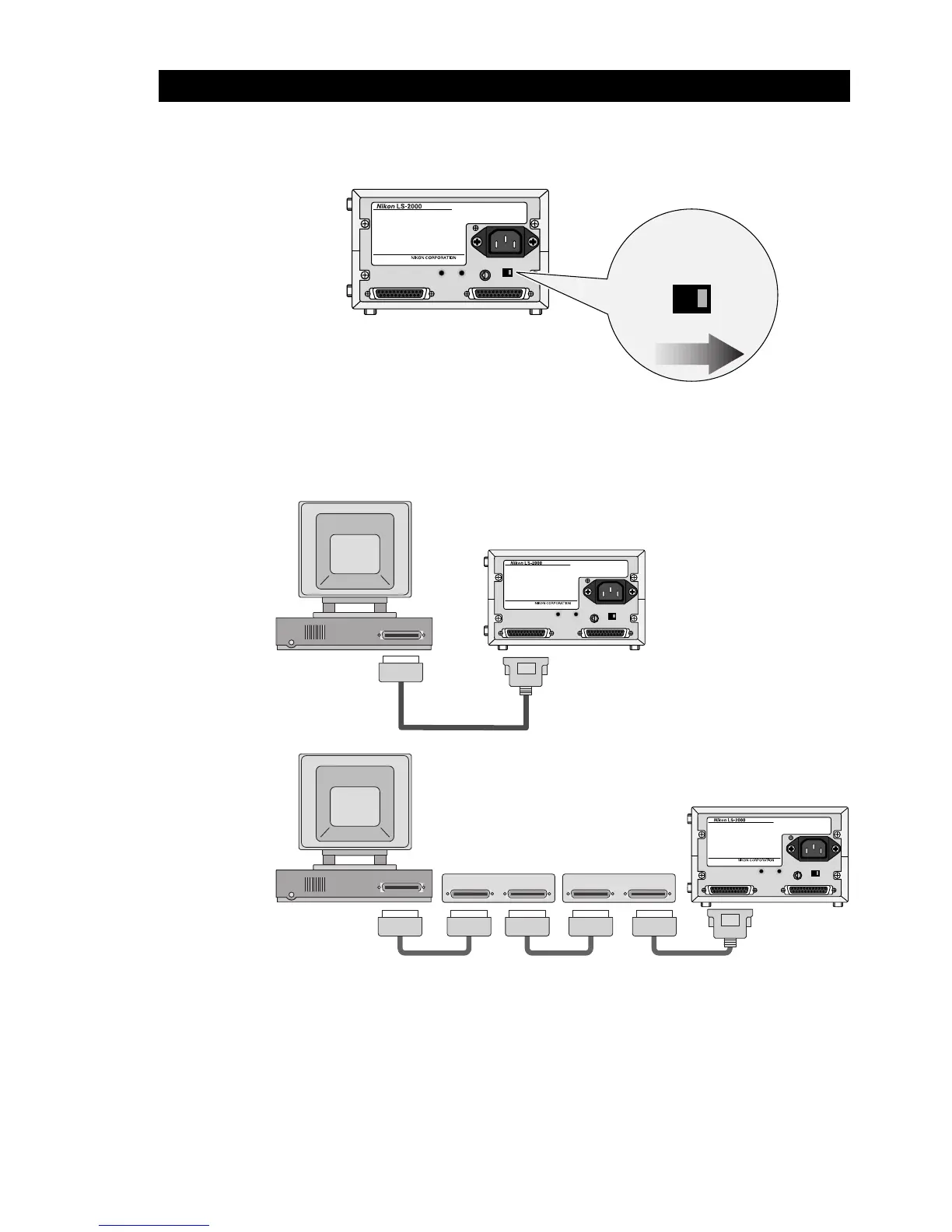

When the scanner is the last device in the chain
1. Set the terminator switch on the rear of the scanner to ON
TERMINATOR
OFF ON
2. Connect the SCSI cable to either of the two SCSI connectors on
the rear of the scanner and connect the other end to the next
device in the chain
MADE IN JAPAN 100098
SCSI SCSI
SCSI NB
TERMINATOR
OFF ON
6
5
4
3
2
1
0
7
100–240V~
0.3–0.2A
50/60 Hz
Other SCSI device Other SCSI device
MADE IN JAPAN 100098
SCSI SCSI
SCSI NB
TERMINATOR
OFF ON
6
5
4
3
2
1
0
7
100–240V~
0.3–0.2A
50/60 Hz
Scanner only external
device in chain
Scanner last of several
external devices
