Parts of the WP-N1Parts of the WP-N1
1
7
6
12
8
9
1011
2
3
4
5

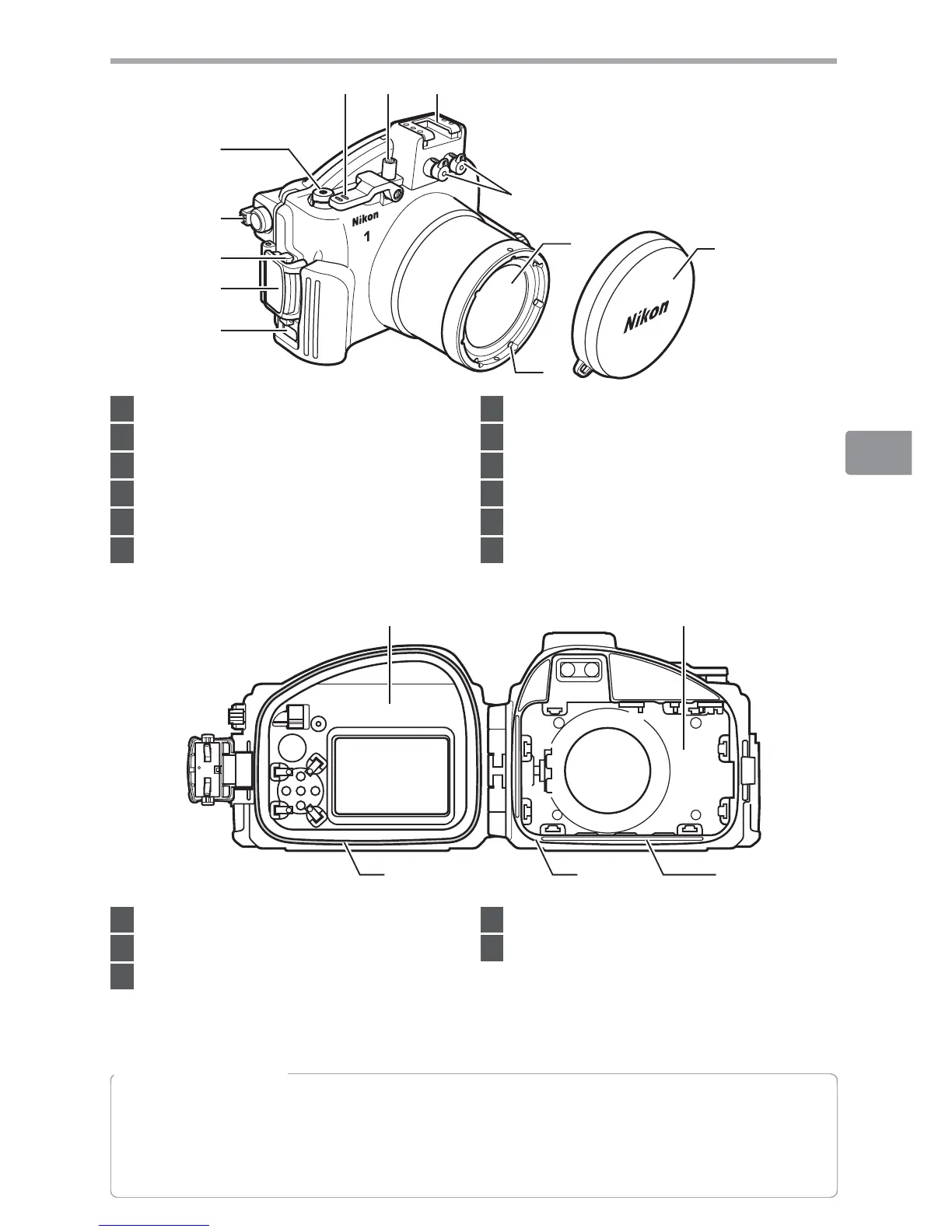

1 Movie-record button .......................................10
2
W
(playback zoom/thumbnail) control
*
3 Buckle release button ........................................4
4 Buckle ........................................................................4
5 Eyelet for strap .......................................................3
6 ⌀67 mm fi lter attachment thread
7 Lens window ..........................................................7
8 Fiber-optic cable socket caps ......................17
9 Accessory shoe
10 Power switch .......................................................10
11 Shutter lever ........................................................10
12 Front cap ..........................................................3, 17
* Control direction is the reverse of the camera
W
control.
13 17
15 1614
13 Rear cover ................................................................4
14 O-ring/O-ring guide ............................8, 14, 17
15 O-ring seal .......................................................8, 15
16 Watertight channel .....................................8, 15
17 Front cover ..............................................................4
A
The Accessory Shoe
The accessory shoe is used for underwater fl ash units (0 17) and other accessories; see the
documentation provided with the accessories for information on attachment and removal.
Remove accessories from the accessory shoe when transporting the waterproof case on
land.
