2

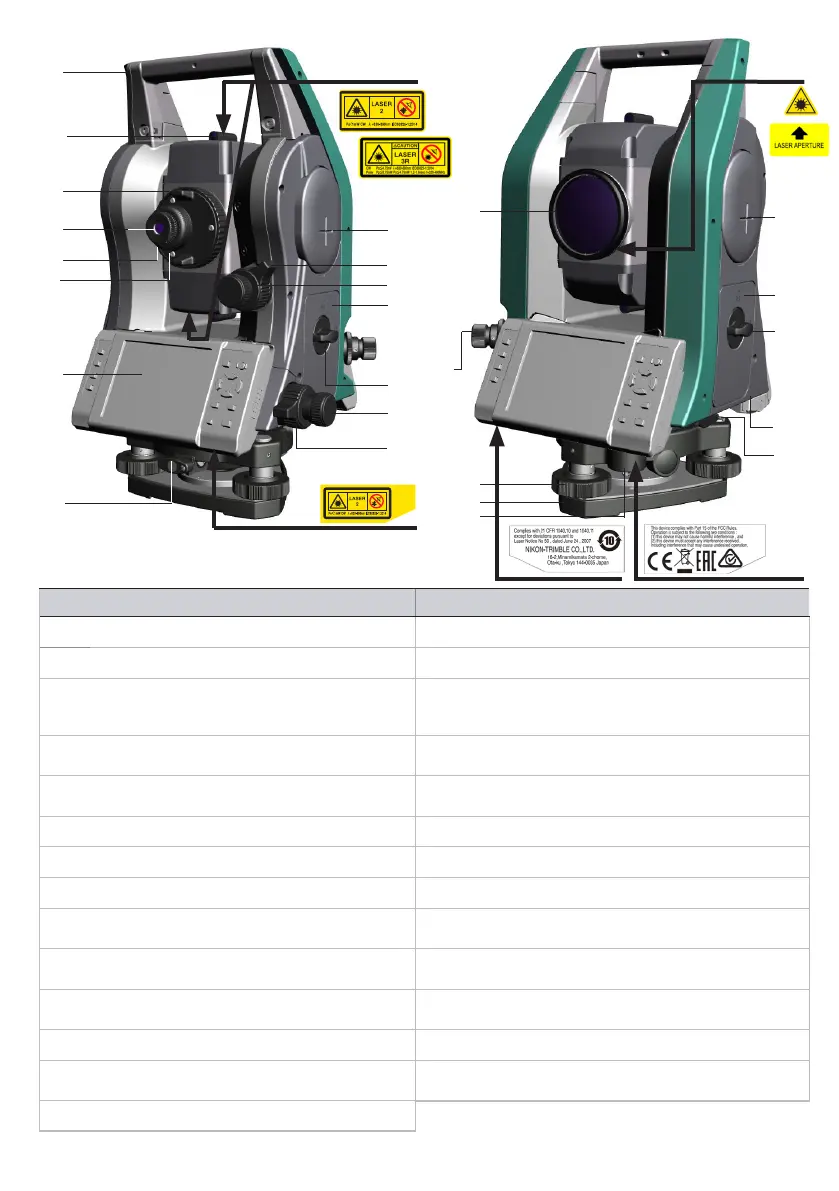

Item Description Item Description
1 Carrying handle 15 Vertical clamp
2 Optical sight (Finder) 16 Horizontal axis indication mark
3 Telescope focusing ring 17 Laser Safety label. Attached to the telescope.
a. Class 2 - XF Series
b. Class 3R - XF HP Series
4 Telescope eyepiece 18 Objective. LASER LIGHT IS EMITTED FROM THIS
PA RT.
5 Diopter ring 19 Optical or optional laser plummet. (This picture
shows the optical plummet.)
6 Reticle plate cover 20 Leveling screw
7 Face-1 display / keyboard 21 Tribrach
8 Tribrach clamp knob 22 Circular level
9 Laser Safety label. Attached underside when the
instrument is laser plummet model.
23 CFR label. Attached to the underside of the
keyboard.
10 Horizontal clamp 24 FCC label. Attached to the underside of the
keyboard.
11 Horizontal tangent screw 25 Data output / external power / input connector.
CAUTION: Input voltage shall be 4.5 to 5.2 V DC
12 Battery box release knob 26 USB ports (x2)
13 Battery box 27 Laser Safety label. Attached to the telescope.
a. XF Series; b. XF HP Series
14 Vertical tangent screw
1
17
2
3
4
5
6
7
8
9
12
10
13
11
14
15
23
16
18
19
20
21
22
24
25
26
27
16
12
13
a
b
a
b
