INSTALLATION CONSIDERATIONS (CONTINUED)
NOTE: BE VERY CAREFUL WHEN LOCATING THE SPEAKERS. VERIFY ALL LOCATIONS
ARE CLEAR OF OBSTRUCTIONS BEFORE CUTTING THE FIRST HOLE.
Each speaker requires two-conductor wiring of sufficient gauge. The gauge depends
on the length of the wire. For recommendations, please refer to (Figure 2). (Stereo
Input loudspeakers require four-conductor wiring).
When running loudspeaker wire inside walls or ceilings, use special jacketed
cable (CL-2 or CL-3 rating) to protect the wire and for fire prevention. In some
municipalities, conduit is required. For a trouble-free installation, low voltage wire
such as loudspeaker wire must be in accordance with the National Electrical Code
and any applicable provisions of the local building code. If you are unsure of the
correct installation techniques, wire jacket, or type of conduit to use, consult a
professional audio/video installer, building contractor, or the local building and
inspection department.

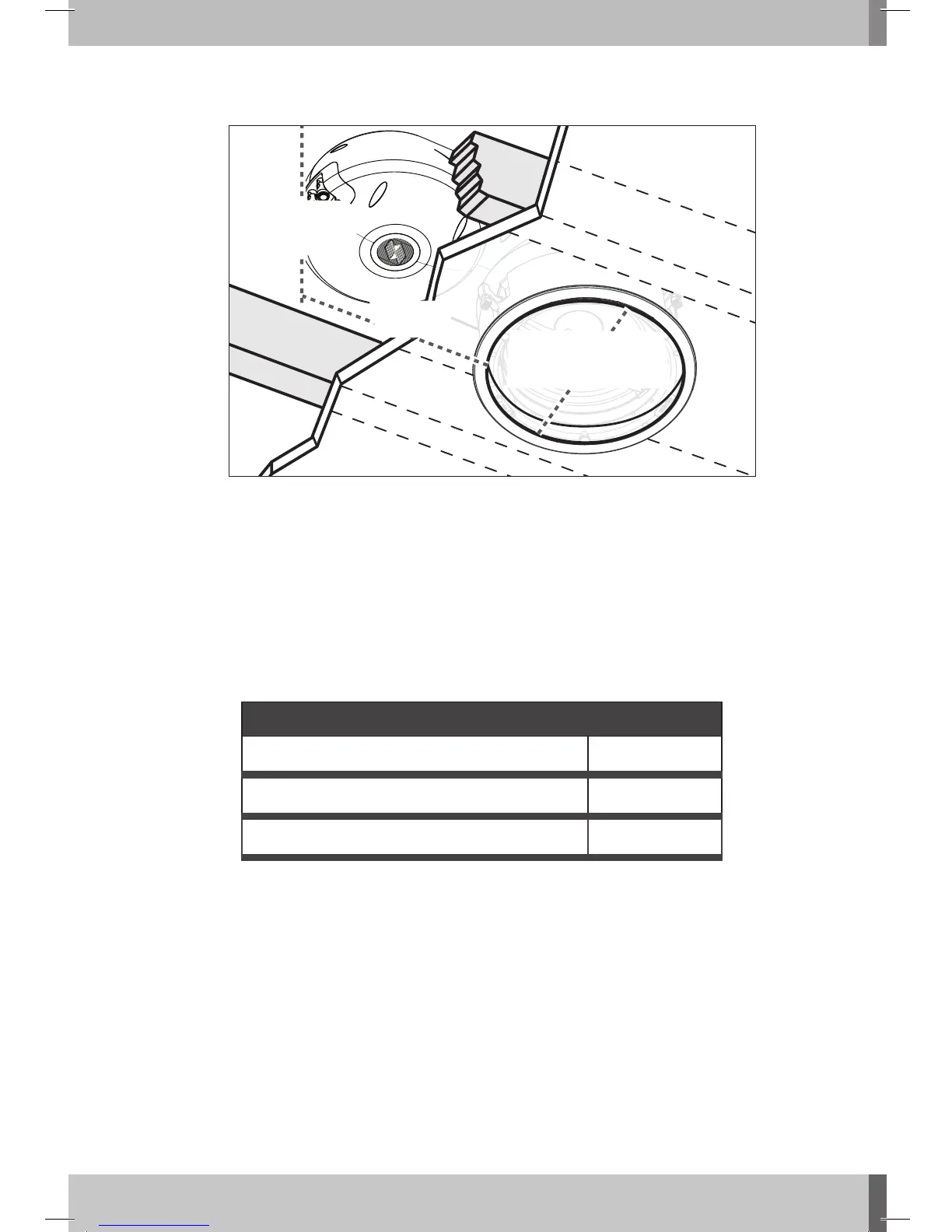

Figure 1. ICS loudspeaker installation dimensions
Figure 2. Speaker Wire Gauge Guide
Distance from speaker to amplifier Wire Gauge
Less than 80 feet
16
80 to 200 feet 14
More than 200 feet 12
