Niles IntelliPad User Manual

9
W ALL M OUNTED P ROGRAMMABLE IR K EYPAD S YSTEM

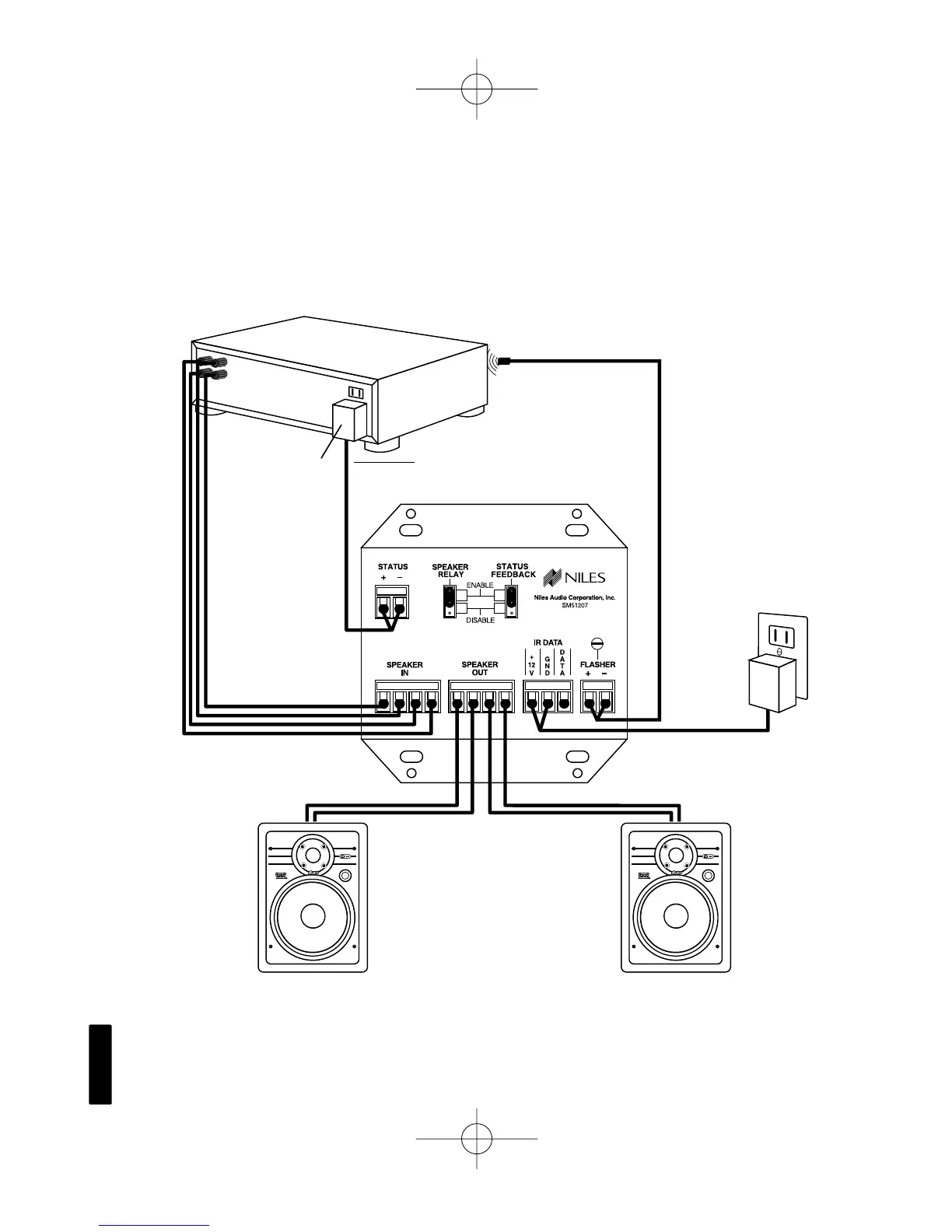

Figure 5
Connecting an IntelliPad in a
“Stand Alone” system using a
direct status feedback
connection
Loudspeaker Loudspeaker
DC Power Supply Plugged
into an Unswitched AC
Outlet Powers the System
IR Flasher
Stereo Receiver
DC Power
Supply plugged
into the Switched
Outlet
Direct 12 volt Status to
the IntelliPad
Rear Panel of
IntelliPad
®
