Niles ZR-4 Installation Guide

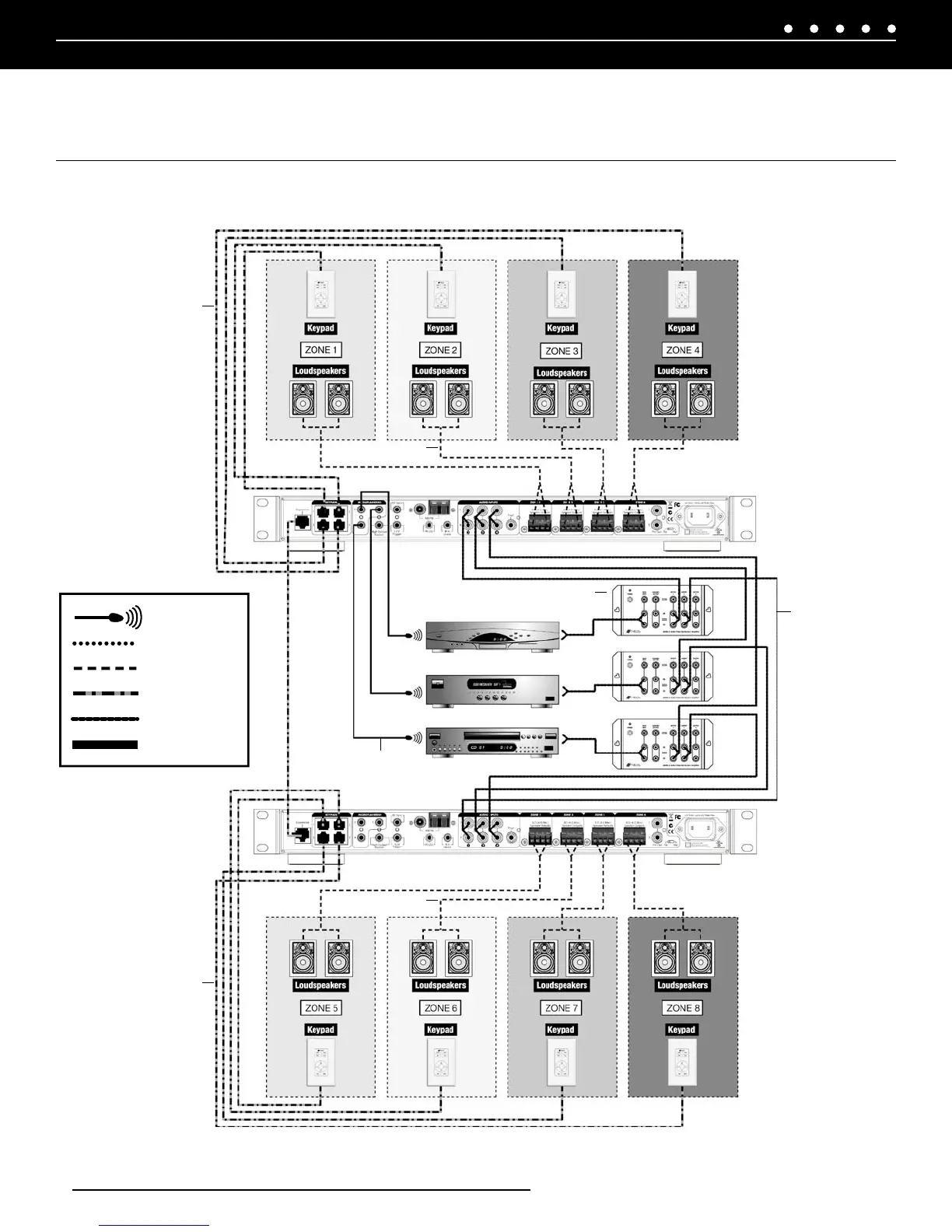

Figure 4. Expanding to Eight Zones Using Two ZR-4 Kits
Speaker Cables
Speaker Cables
CAT-5 Cable
ZR-4 Master
ZR-4 Slave
Niles MF1
MicroFlashers
Audio Cables
Cable Box
Satellite Receiver
CD Player
CAT-5 Cable
Niles AVDA-3
Distribution Amplifier







NILES AUDIO CORPORATION – 1-800-BUY-HIFI – 305-238-43738
SYSTEM CONFIGURATION 2
EXPANDING TO EIGHT ZONES USING TWO ZR-4 KITS
This configuration demonstrates the expand ability of the ZR-4 MultiZone Receiver Kit. Two complete kits are integrated to create a four-
source, eight-zone audio system.

Niles ZR-4 Specifications

Weight and Dimensions

width	4 3/4" (12 cm)
height	1 1/4" (3.2 cm)
depth	2" (5.1 cm)
shipping weight	1 lb. (.5 kg)
