40 - FORM NO. 56043103 - Warrior
ST, Warrior
AXP / BA 755 series
SQUEEGEE SYSTEM
CASTER WHEEL REMOVAL
WARNING!
Disconnect the battery pack connector before servicing machine.
WARNING!
Never work under machine without safety stands or blocking to support the machine.
1 Drain both the solution and recovery tanks. Remove the squeegee assembly and have the scrub deck in the up (stored) position with the scrub brushes
installed.

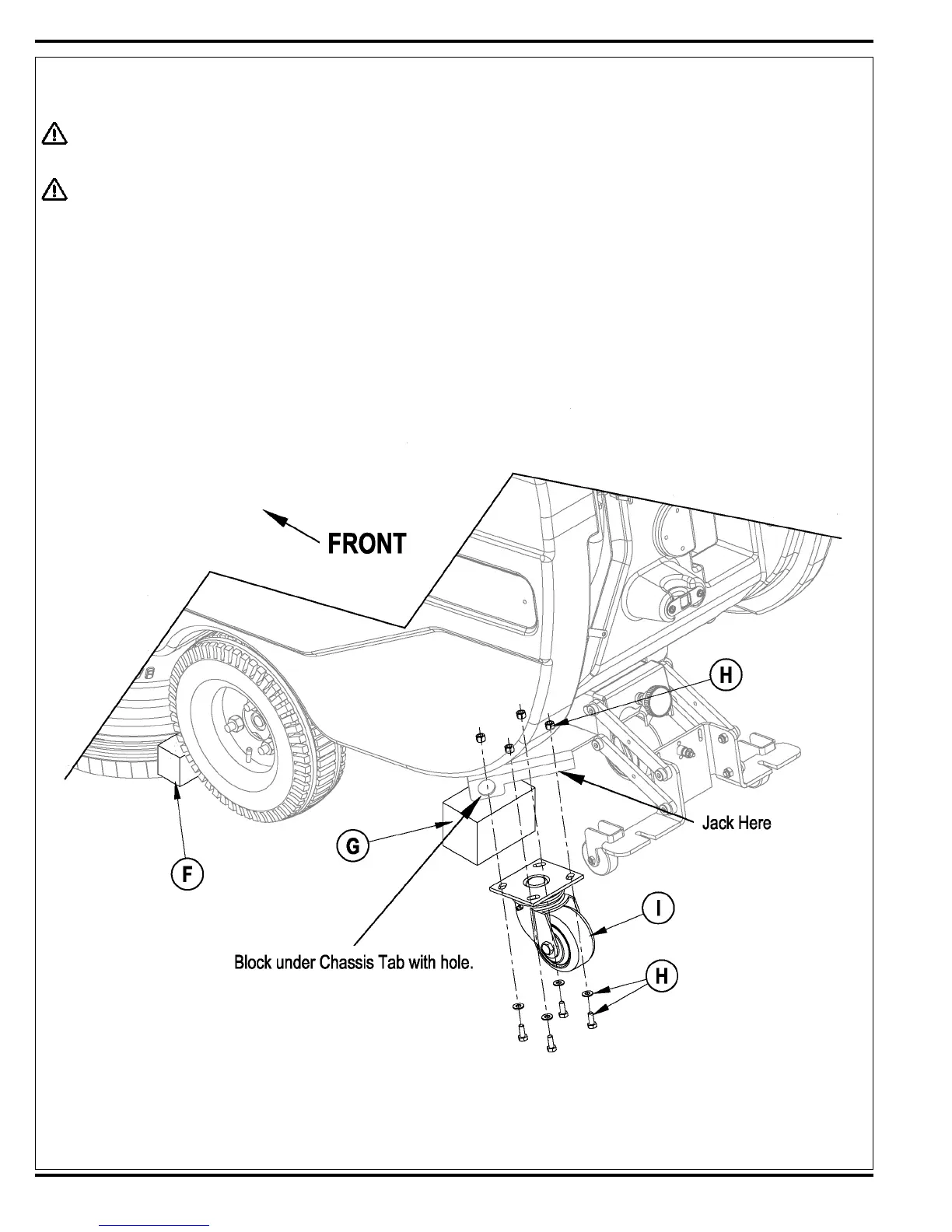

2 See Figure 4. Place Wood Blocking (F) in front of the drive wheels to prevent the machine from rolling.
3 Jack the machine in the location shown until the caster wheels are approximately 1” off the ground.
4 Place Blocking (G) under the chassis tab as shown.
5 Remove the (4) Screws, Nuts & Washers (H) then remove the Caster Assembly (I). NOTE: Same procedure for either side.
6 Reinstall in reverse order.
FIGURE 4
