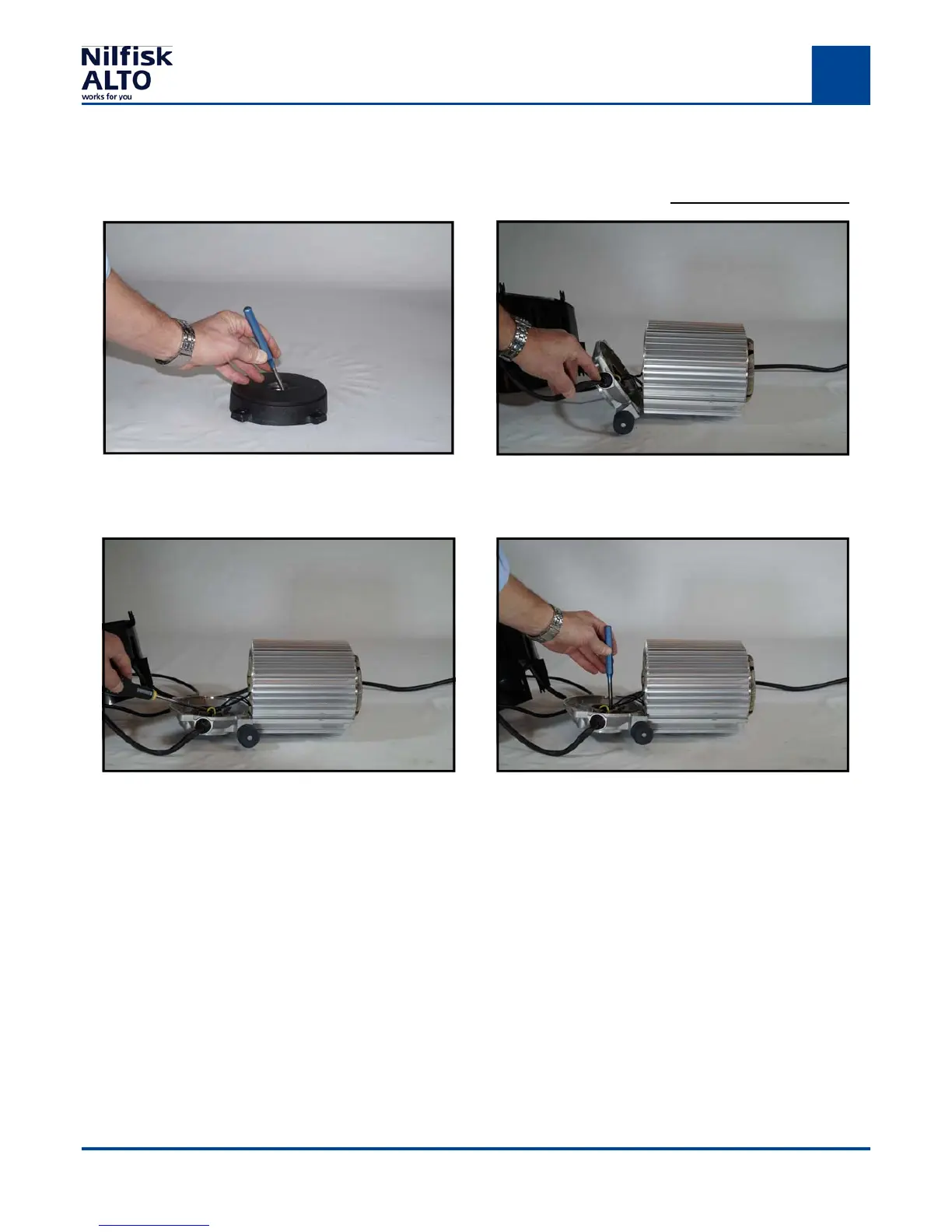

Motor disasassembly
Remove the N-bearing gently with a man-
drel.
Remove D-bearing cover from stator and
push the cable into the D-Bearing cover.
Remove the oil seal very gently with a large
screwdriver or similar. Make sure not to
scratch the D-bearing cover inside.
Remove the D-bearing gently with a man-
drel
