2.2 Operation elements
and model survey
See illustration at the end of
this manual.
1 Start/stop switch
2 Water inlet (with fi lter)
3 High pressure hose
4 Electric cable
5 Spray gun with lock (5a)
6 Flexopower 3000 nozzle
7 Turbohammer 3000 nozzle
8 Nozzle cleaning tool
9 Trolley handle (telescopic
handle)
10 Hose reel
11 Model tag
12 Quick coupling
13 Button for telescopic handle
14 Turnable cable hook
Specifi cations: See model tag
(11) of machine.
Sound pressure level meas-
ures in accordance with ISO
3744 EEC directive 2000/14/
EEC: L
pA
= 69,9 dB(A), L
WA
= 84
dB(A).
We reserve the right to alter the
specifi cations.
3 Before you start using your
pressure washer

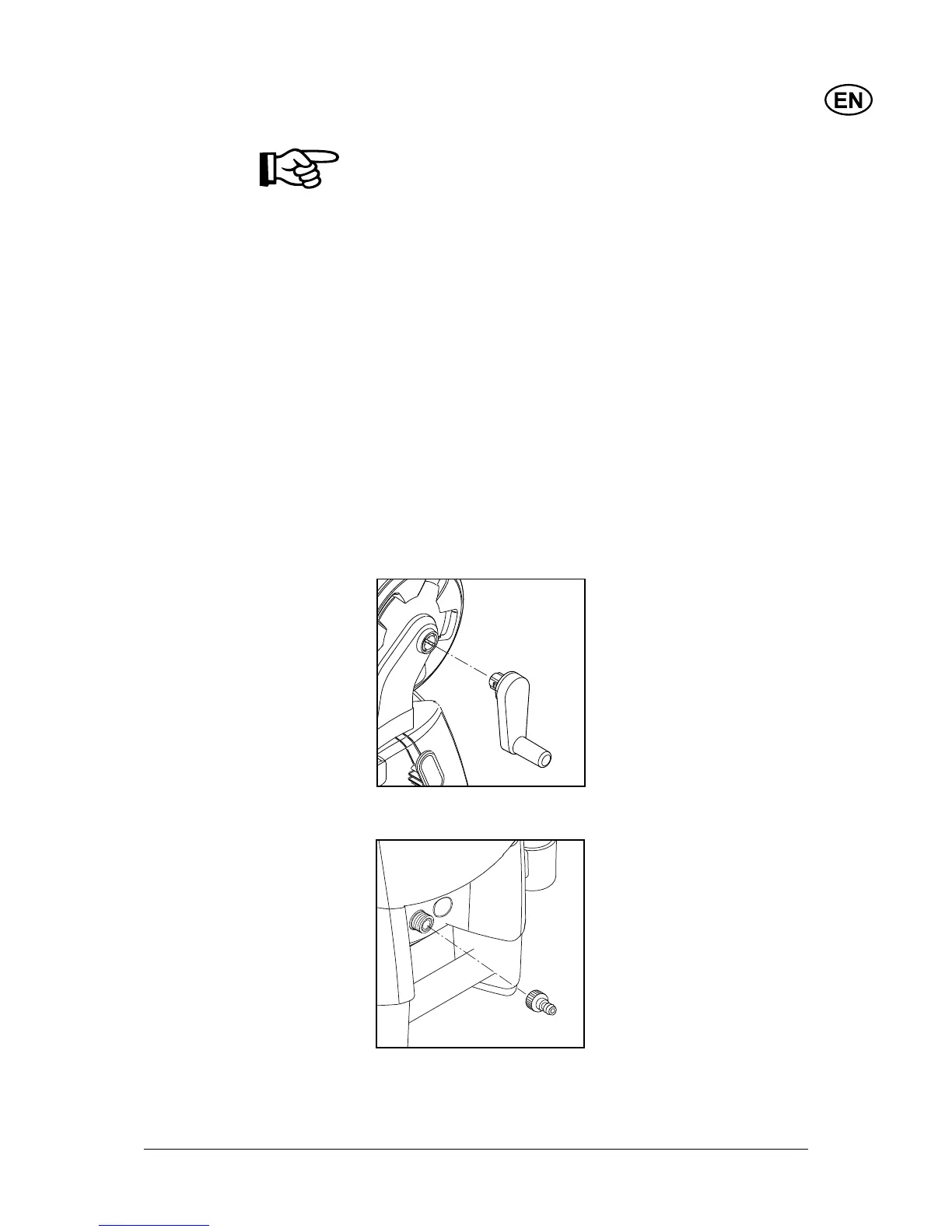

3.1 Mounting of hose reel
handle
1. Click the hose reel handle
on to the trolley handle (no
screws).
3.2 Mounting of quick
coupling
1. Screw the quick coupling (12)
tight on to the water inlet (2).
Note: The inlet fi lter must al-
ways be fi tted in the water inlet
pipe to fi lter out sand, lime stone
and other impurities as these
will damage the pump valves.
Caution: Failure
to fi t the fi lter will
invalidate the
guarantee.
