POSEIDON 4
11
1)
Options / model variants
Original instructions
Description
Purpose
This high-pressure cleaner has
been designed for professional
use in
– Agriculture
– industry
– transport industry
– automotive cleaning
– municipal facilities
– cleaning trade
– construction industry
– food industry
etc.
Always use the cleaner as de-
scribed in these operating in-
structions. Any other use may
damage the cleaner or the sur-
face to be cleaned or may result
in severe injury to persons.
Operating elements
1 Spray gun
2 Mains power lead
3 Spray lance
4 Receptacle for electrical
lead
5 Detergent tank
6 Receptacle for Spray lance
7 Supply water connection
with water inlet filter
8 High pressure hose
connection
9 Main switch
10 Detergent metering knob
11 Handle
12 Hose reel
1)
Control / Operation
Using cleaning agents
Cleaning agent can be drawn
in via the injector installed as
standard only in low-pressure
mode.
CAUTION!
Never allow cleaning agent to
dry on the surface to be cleaned.
The surface may be damaged.
Unloader valve
Unacceptably high pressure is
fed back without residual pres-
sure via a bypass line into the
intake line of the pump when the
safety device is tripped.
The unloader valve is set and
sealed at the factory and must
not be adjusted.
Safety devices

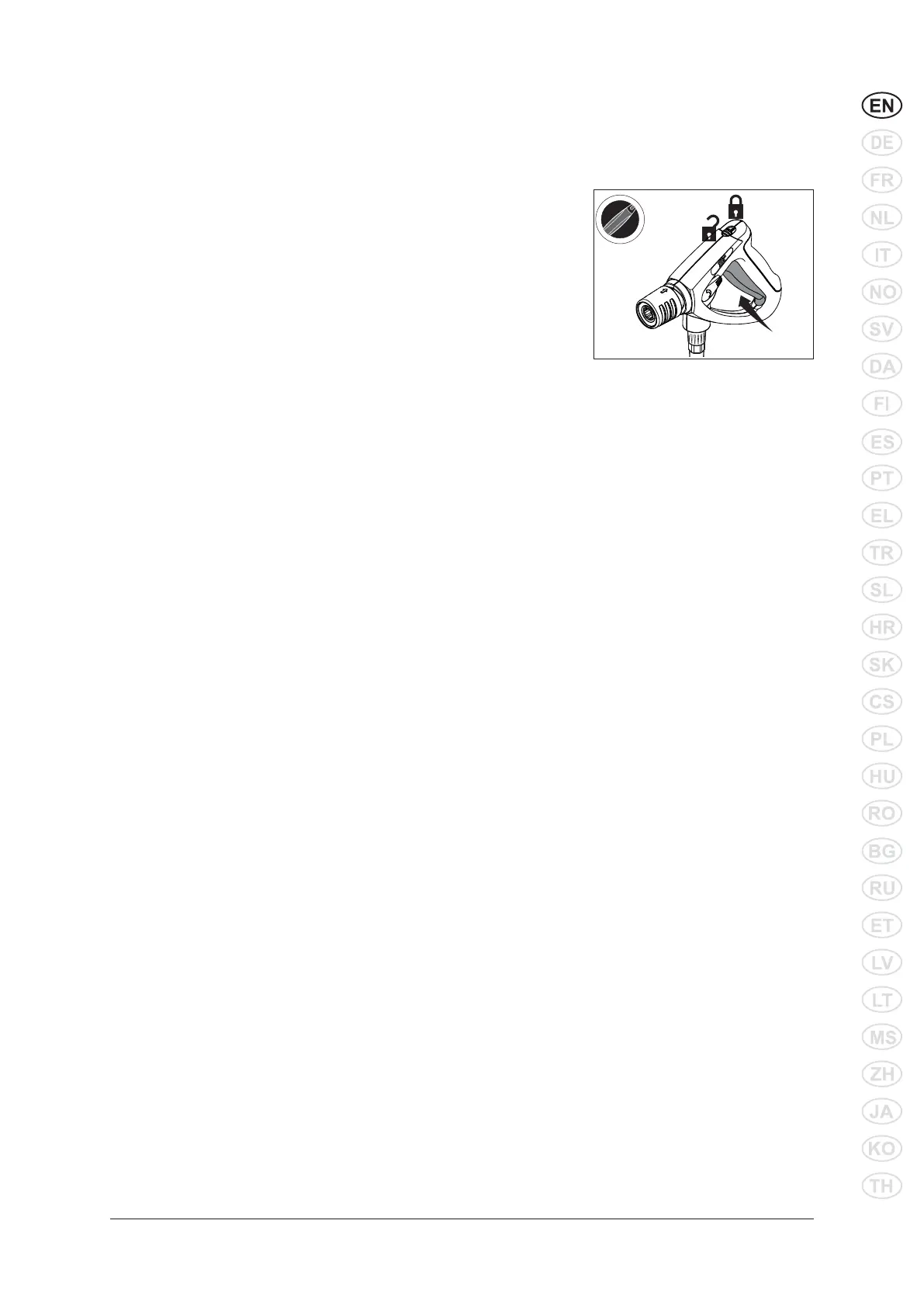

Locking device on spray gun:
The spray gun features a lock-
ing device. When the pawl is
activated, the spray gun cannot
be ope rated.
Thermal overcurren circuit
breaker:
A thermal current sensor pro-
tects the motor against over-
loading. The machine will restart
after a few minutes when the
thermal sensor has cooled.
O
I
