107 907-056 Washer Shims a.r.
108 908-026 Nut - Left Hand 5/16-24 1
109 903-080 #10-32 x 1/4 Pan Hd. Screw 4
MISCELLANEOUS PARTS
15. 915-004 Angle Support 2
33 945-082 Vegetable Fibre Brush 1
33 945-005 Nylon Tufted Brush 1
23 914-056 Vacuum Motor Gasket 1
24 916-049 Brush Drive Motor (115V, 60Hz) 1
24 916-095 Brush Drive Motor (220V, 50Hz) 1
25 910-046 5/16-18 x 3/4 Motor Mount Bolt 4
26 900-014 Belt Guard Casting 1
27 906-001 1/4 Lock Washer a.r.
10 903-007 1/4-20 x 3/4 Rd. Hd. Screw a.r.
28 941-001 Timing Belt 1
29 923-005 Chromed Handle 1
30 903-027 1/4-20 x 1/2 Rd. Hd. Screw a.r.
35 936-001 Drive Motor Pulley w/912-002 Set Screws 1
36 907-035 5/16 Motor Mount Flat Washer 4
41 906-015 5/16 Lock Washer 4
110 915-215 Shield - Belt Guard 1
111 903-001 #8-32 x 1/4” Hd. Screw 2
69 2-015410-000 Fan Case 1
83 908-003 #10-24 Nut (Fan case to base) 3
55 906-004 #10 Lock Washer (Fan case to base) 3
113 904-049 #10-24 x 5/8 Lg. Flat Hd. Screw (Fan case to base) 3
**INDICATES NOT ILLUSTRATED a.r. - as required

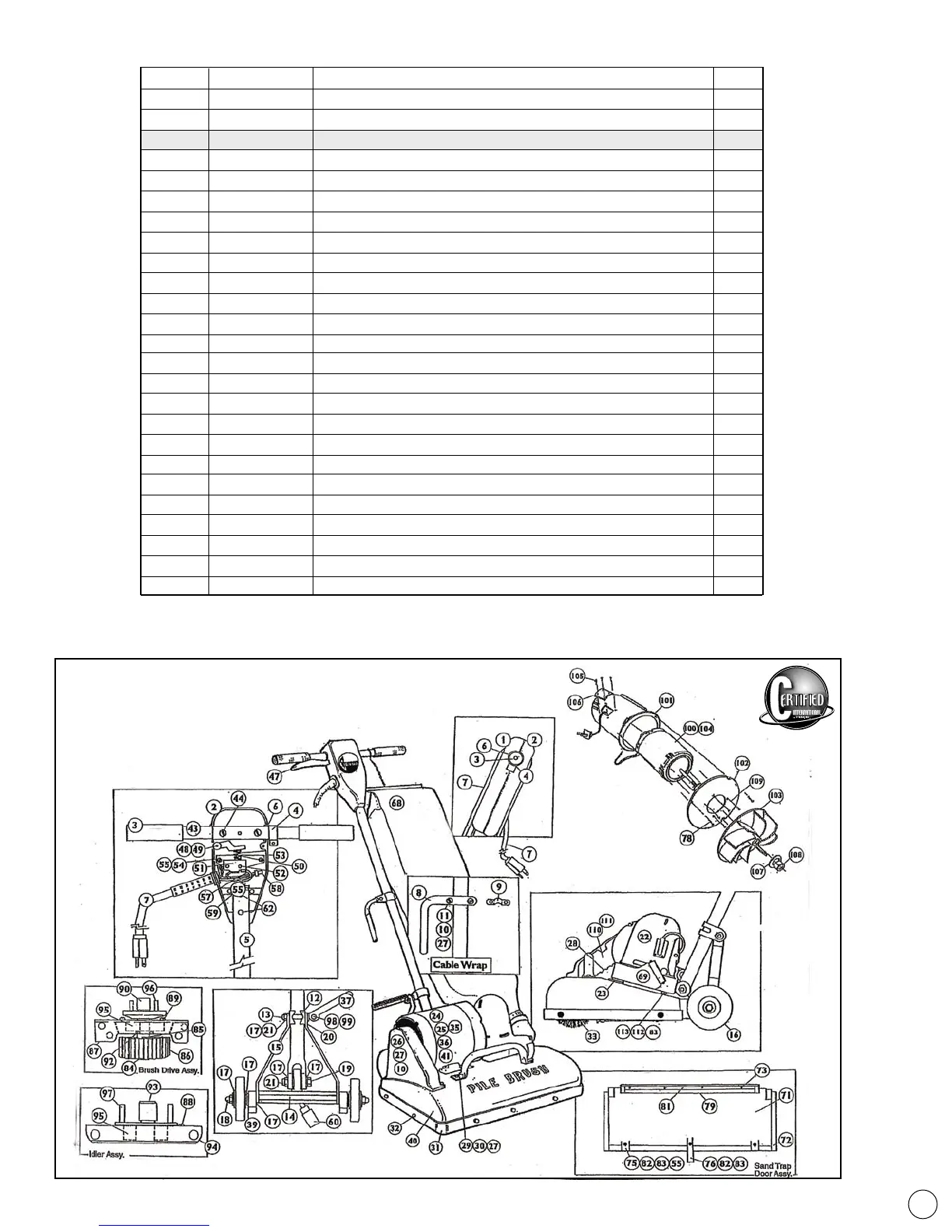

Drawing Part Number
Number Number Description Required
CERTIFIED reserves the right to make changes and improvements in design and construction.
Please furnish the Serial Number of the machine for which parts are required so we may furnish the proper or equivalent
replacements if available.
